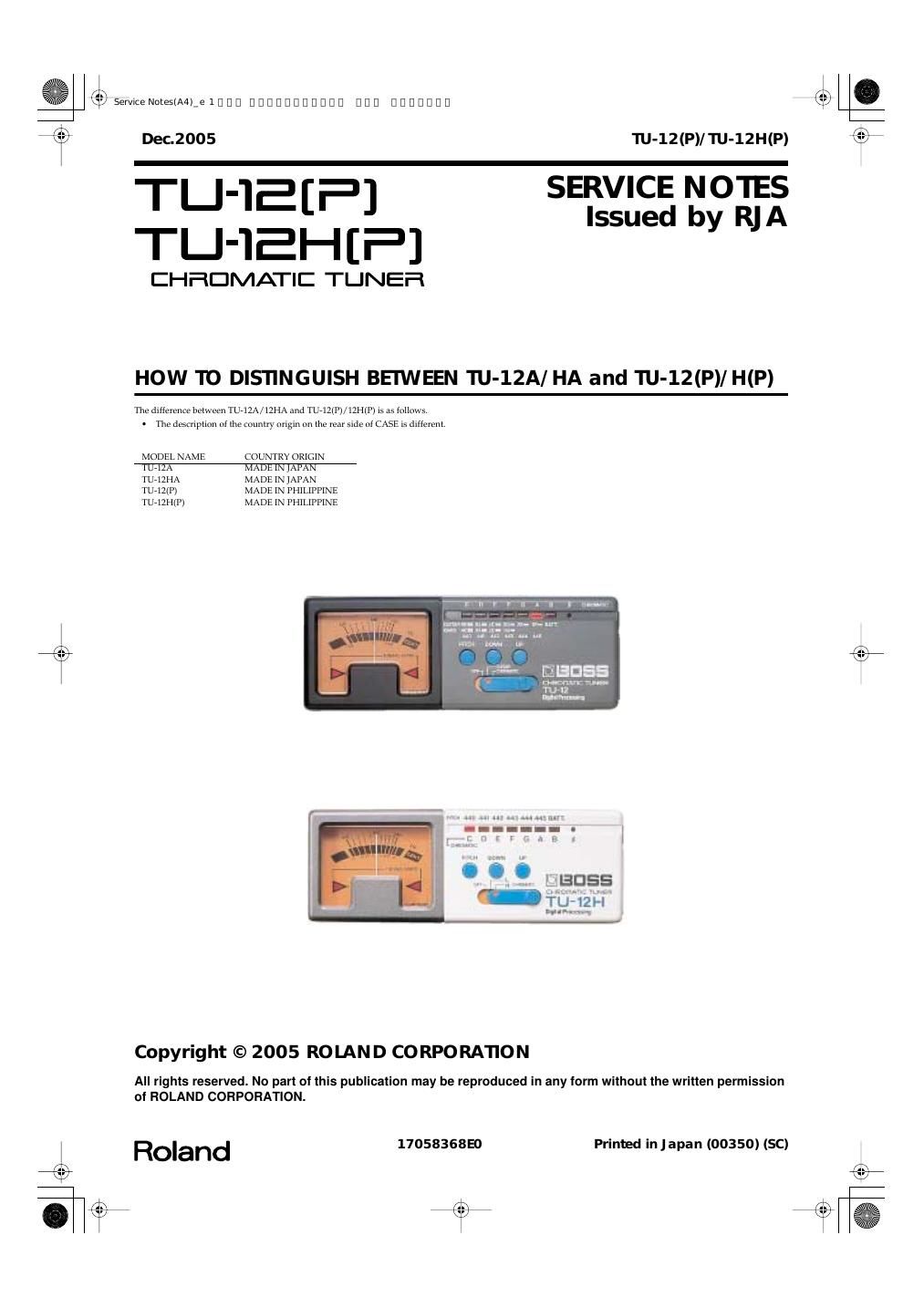

BOSS TU 12 SERVICE NOTES
This is the 7 pages manual for BOSS TU 12 SERVICE NOTES.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from BOSS TU 12 SERVICE NOTES (Ocr-read)
Page 1
2 Dec.2005 TU-12(P) SPECIFICATION - TUNING RANGE: C1(32.70 Hz) to B5(987.77 Hz) - ACCURACY: +/-1 CENT - MASTER OSCILLATOR: Quartz(3.579545 MHz) - STANDDARD PITCH: 400 to 445 Hz 1 Hz step - JACKS: Input Output AC Adaptor - DIMENSIONS: 145 (W) X 35 (H) X 53 (D)mm 5-7/16 (W)X1-3/8 (H) X 2-1/16 (D) inches - WEIGHT: 170 g/6 oz- ACCESSARY: Soft Case (#2201074000) Dry Battery / 9V type (#********) Owners Manual ENGLISH (#2602080200) - OPTION: AC Adaptor (PSA-Series) Owners Manual JAPANESE (#2602080100) * Specifications are subject to change without notice. PARTS LIST fig.part1e SAFETY PRECAUTIONS: The parts marked have safety-related characteristics. Use only listed parts for replacement. NOTE: The parts marked # are new. (initial parts) Due to one or more of the following reasons, parts with parts code ******** cannot be supplied as service parts. - Part supplied only as a component in a complete assembly - Copyright does not permit the part to be supplied - Part is sold commercially The description "Q'TY" means a necessary number of the parts per one product. We can not supply except the following parts. If you need them ,please order the fnished goods. CASING 2202064400 BATTERY COVER 202-644 1 JACK,EXT TERMINAL 13449711 AC ADAPTOR JACK HEC0470-01-630 1 13449145 6.5MM JACK YKB21-5010 (OUTPUT) 1 13449146 6.5MM JACK YKB21-5012 (W/SW) (INPUT) 1 DISPLAY UNIT 2243040300 METER GM261-R3090A 1 FINISHED GOODS SK000182 FINISHED GOODS (#4001619) FOR SERVICE ONLY 1 WIRING F3419102 BATTERY CONNECTOR (006P) ACCESSORIES (Standard) 2201074000 SOFT CASE(BLK) 201-740 1 2602080200 OWNERS MANUAL ENGLISH 1 ******** DRY BATTRY 006P 1 Service No te s(A 4)_e 2
Page 2
3 TU-12(P)/TU-12H(P) TU-12H(P) SPECIFICATION - TUNING RANGE: C1(32.70 Hz) to B6 (1975.53 Hz) - ACCURACY: +/-1 CENT - MASTER OSCILLATOR: Quartz(3.579545 MHz) - STANDDARD PITCH: 400 to 445 Hz 1Hz step - JACKS: Input Output AC Adaptor - DIMENSIONS: 145 (W) X 35 (H) X 53 (D) mm 5-7/16 (W)X1-3/8X2-1/16 inches - WEIGHT: 170 g / 6 oz- ACCESSARY: Soft Case(#2201073800) Dry Battery 9V type(#********) Owners Manual ENGLISH(#2602081200) - OPTION: AC Adaptor (PSA-Series) Owners Manual JAPANESE(#2602081100) For SHAKUHACHI(#26020814) For KOTO/SYAMISEN(#26020813) PARTS LIST fig.part1e We can not supply except the following parts. If you need them ,please order the fnished goods. SAFETY PRECAUTIONS: The parts marked have safety-related characteristics. Use only listed parts for replacement. NOTE: The parts marked # are new. (initial parts) Due to one or more of the following reasons, parts with parts code ******** cannot be supplied as service parts. - Part supplied only as a component in a complete assembly - Copyright does not permit the part to be supplied - Part is sold commercially The description "Q'TY" means a necessary number of the parts per one product. CASING 2202068000 BATTERY COVER 202-680 1 JACK,EXT TERMINAL 13449711 AC ADAPTOR JACK HEC0470-01-630 1 13449145 6.5MM JACK YKB21-5010 (OUTPUT) 1 13449146 6.5MM JACK YKB21-5012 (W/SW) (INPUT) 1 DISPLAY UNIT 2243040300 METER GM261-R3090A 1 FINISHED GOODS SK000184 FINISHED GOODS (#4001719) FOR SERVICE ONLY 1 WIRING F3419102 BATTERY CONNECTOR (006P) 1 ACCESSORIES (Standard) 2201073800 SOFT CASE(BR) 201-738 1 2602081200 OWNERS MANUAL TU-12H ENGLISH 1 ******** DRY BATTRY 006P 1 Service No te s(A 4)_e 3
