Boss PW 10 V Wah Service Manual
This is the 14 pages manual for Boss PW 10 V Wah Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Boss PW 10 V Wah Service Manual (Ocr-read)
Page 1

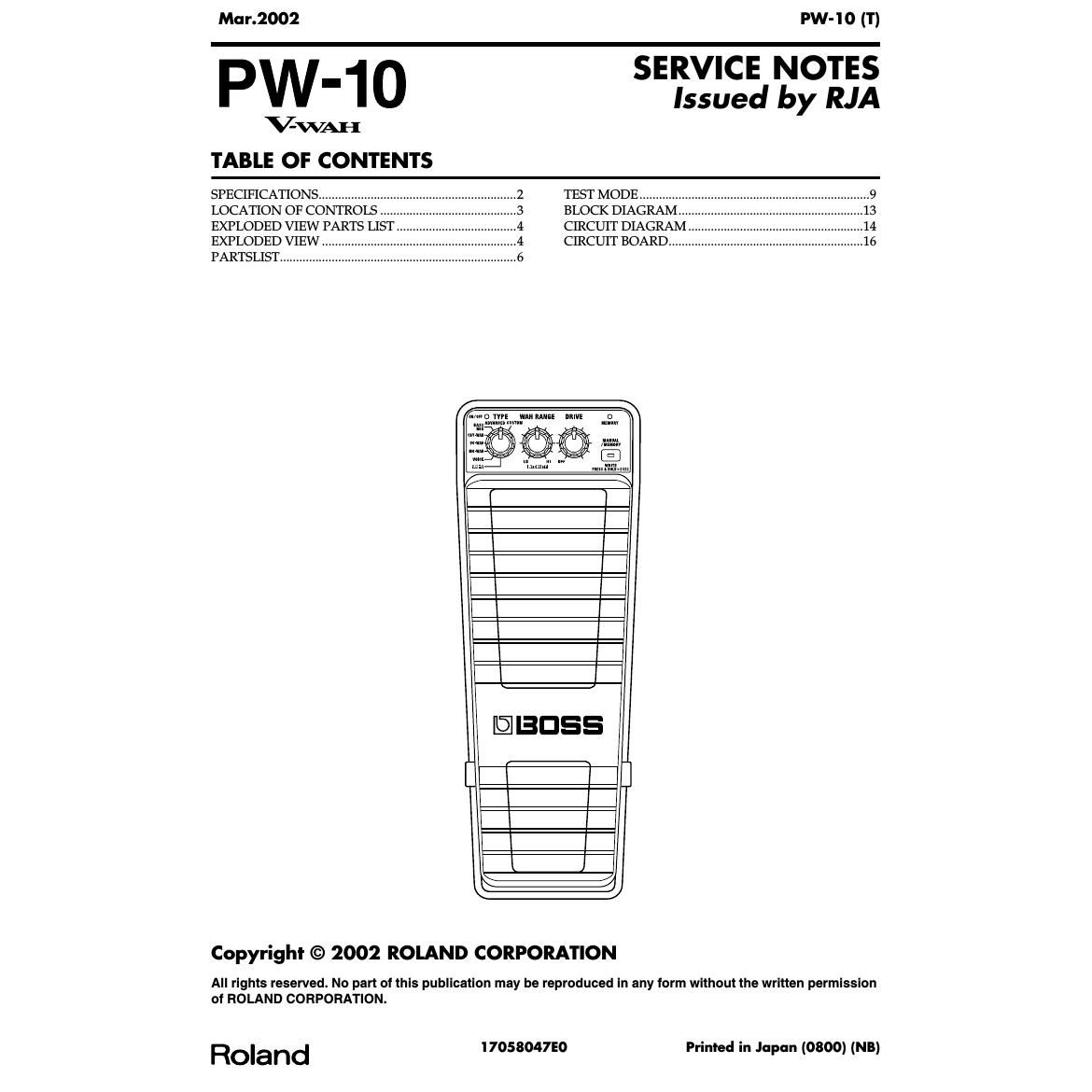

2 Mar.2002 SPECIFICATIONS PW-10: Pedal Wah -Nominal Input Level -20 dBu -Input Impedance 1 M ohm -Nominal Output Level -20 dBu -Output Impedance 1 k ohm -Recommended Load Impedance 10 k ohm or greater -Controls Pedal Toe Switch Heel Switch MANUAL/MEMORY Button TYPE Knob WAH RANGE Knob DRIVE Knob -Indicators ON/OFF Indicator MEMORY Indicator -Connectors INPUT Jack OUTPUT Jack AC Adaptor Jack -Power Supply DC 9V: Dry Battery (R6/LR6 (AA) type) x 6 AC Adaptor -Current Draw 55 mA *Expected battery life under continuous use: Carbon: 14 hours Alkaline: 38 hours These figures will vary depending on the actual conditions of use.-Dimensions 100 (W) x 270 (D) x 100 (H; max.) mm 3-15/16 (W) x 10-11/16 (D) x 3-15/16 (H; max.) inches -Weight 1.3 kg/ 2 lbs 14 oz (including batteries) -Accessories Owners Manual English (#G6017356) Dry battery (LR6 (AA) type) x6 (#******) -Options AC Adaptor (PSA-series) *0 dBu = 0.775 Vrms *In the interest of product improvement, the specifications and/or appearance of this unit are subject to change without prior notice.
Page 2
3 PW-10(T) LOCATION OF CONTROLS fig.panel CASE (G2187539) VR PEDAL (G2187538)BOTTOM COVER (G2187537) PANEL (G2217156) BTN M9D6M6 BOLT (H5029856) BATTERY COVER (G2017630) R KNOB (G2477122)KEYTOP S WITHOUT LENZ (G247751301) HTJ-064-12D (13449150MF) KM02009AB (F3449415) GL3ED8 (15029342) L-34HDSL (1502928100) RD901-40-15FW-B54-00D (F3279793)RD901-40-15FW-B54-08D (F3279855) PEDAL PLATE F (G2357123) PEDAL PLATE R (G2357124)BOTTOM FOOT R (F2359131) BOTTOM FOOT F (F2359132)
