Boss OD 20(T) Overdrive Distortion Service Manual
This is the 21 pages manual for Boss OD 20(T) Overdrive Distortion Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
-Overdrive-Distortion-Service-Manual-01.jpg)
Extracted text from Boss OD 20(T) Overdrive Distortion Service Manual (Ocr-read)

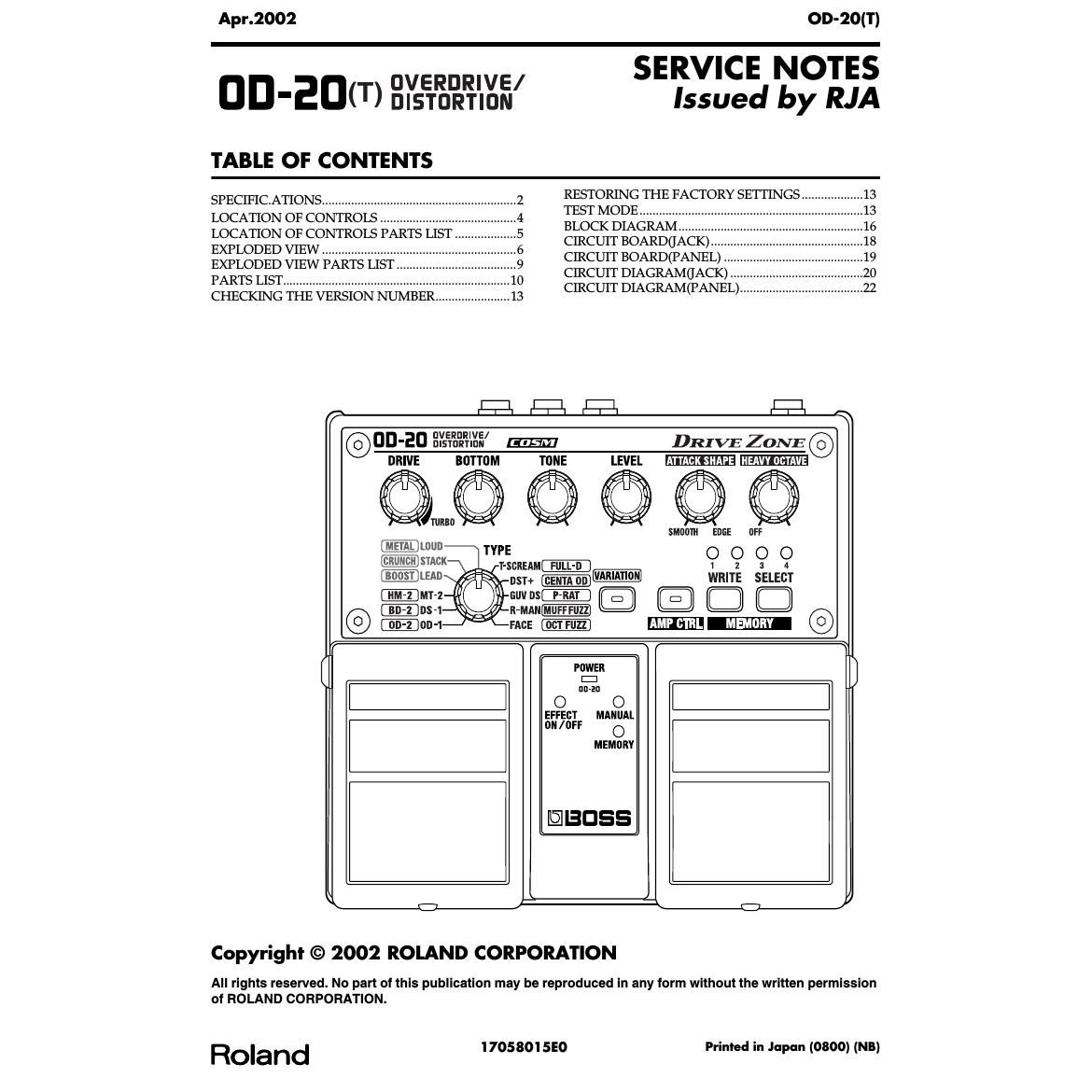

Page 1
2 Apr.2002 SPECIFIC.ATIONS OD-20: Overdrive/Distortion Nominal Input Level -20 dBu Input Impedance 1 MΩ Nominal Output Level -20 dBu Output Impedance 1 kΩ Recommended Load Impedance 10 kΩ or greater Dynamic Range 102 dB (IHF-A typ.) Controls EFFECT ON/OFF Pedal MANUAL/MEMORY Pedal DRIVE Knob BOTTOM Knob TONE Knob LEVEL Knob ATTACK SHAPE Knob HEAVY OCTAVE Knob TYPE Knob VARIATION Button AMP CTRL (amp control) Button MEMORY WRITE Button MEMORY SELECT Button Indicators POWER Indicator (serves also as battery check indicator) EFFECT ON/OFF Indicator MANUAL Indicator MEMORY Indicator VARIATION Indicator AMP CTRL (amp control) Indicator MEMORY Number Indicator (1-4) Connectors INPUT Jack AMP CTRL (amp control) Jack LINE OUT/PHONES Jack OUTPUT Jack AC Adaptor Jack (DC 9 V) Power Supply DC 9 V: Dry Battery (R6/LR6 (AA) type) x 6 AC Adaptor Current Draw 85 mA (9 V max.) *Expected battery life under continuous use: Carbon: 8 hours Alkaline: 20 hours These figures will vary depending on the actual conditions of use. Dimensions 173 (W) x 158 (D) x 57 (H) mm 6-13/16 (W) x 6-1/4 (D) x 2-1/4 (H) inches Weight 1.1 kg / 2 lbs 7 oz (including batteries) Accessories Owners Manual English :G6017351 Japanese :G6017350 Leaflet (USING THE UNIT SAFELY, IMPORTANT NOTES, and Information):(********) Dry battery (LR6 (AA) type) x 6:(********) *We recommend that alkaline batteries be used when replacing the batteries. Options AC Adaptor (PSA-series) *0 dBu = 0.775 Vrms *In the interest of product improvement, the specifications and/or appearance of this unit are subject to change without prior notice.
Page 2
3 OD-20(T)
