Boss OC 3 Super Octave Service Manual
This is the 16 pages manual for Boss OC 3 Super Octave Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Boss OC 3 Super Octave Service Manual (Ocr-read)

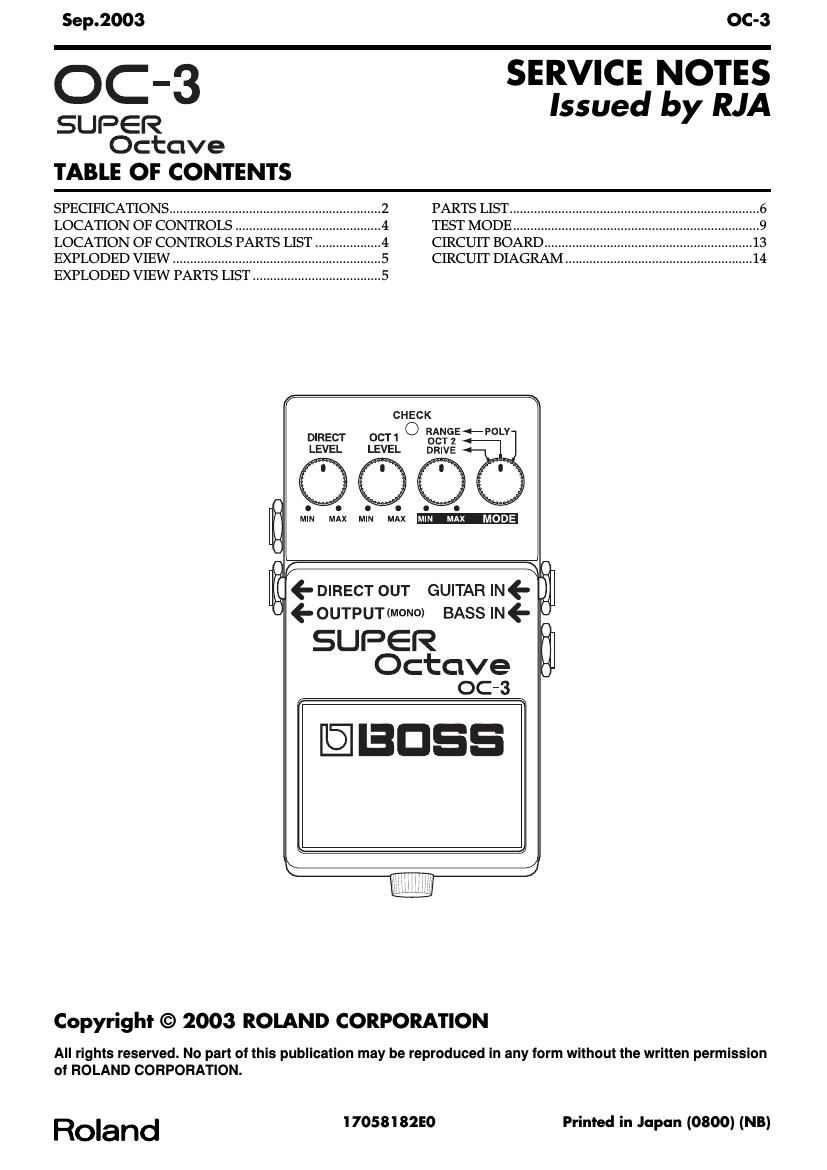

Page 1
2 Sep.2003 SPECIFICATIONS OC-3: SUPER Octave Nominal Input Level -20 dBu Input Impedance 1 M ohm Nominal Output Level -20 dBu Output Impedance 1 k ohm Recommended Load Impedance 10 k ohms or greater Residual Noise -96 dBu (IHF-A, Typ.); All knobs at center position Controls Pedal switch, DIRECT LEVEL knob, OCT 1 LEVEL knob, CONTROL knob, MODE knob, Indicator CHECK indicator (Serves also as battery check indicator) Connectors GUITAR IN jack, BASS IN jack, OUTPUT (MONO) jack, DIRECT OUT jack, AC adaptor jack (DC 9 V) Power Supply DC 9 V: Dry battery (9 V type) 6AM6/9 V (alkaline), Dry battery (9 V type) S-006P/9 V (6F22/9 V) AC Adaptor (PSA-series: optional) Current Draw 50 mA (DC 9 V) *Expected battery life under continuous use: Carbon: 2 hours, Alkaline: 6 hours These figures will vary depending on the actual conditions of use. Dimensions 73 (W) x 129 (D) x 59 (H) mm 2-7/8 (W) x 5-1/8 (D) x 2-3/8 (H) inches Weight 440 g /1 lb (including battery) Accessories Owners Manual ENGLISH: (#G6017375) JAPANESE: (#G6017374) Dry Battery: (#*******) (9 V type) S-006P/9 V (6F22/9 V) Options AC Adaptor (PSA-series) *0 dBu=0.775 Vrms *In the interest of product improvement, the specifications and/or appearance of this unit are subject to change without prior notice.
Page 2
3 OC-3
