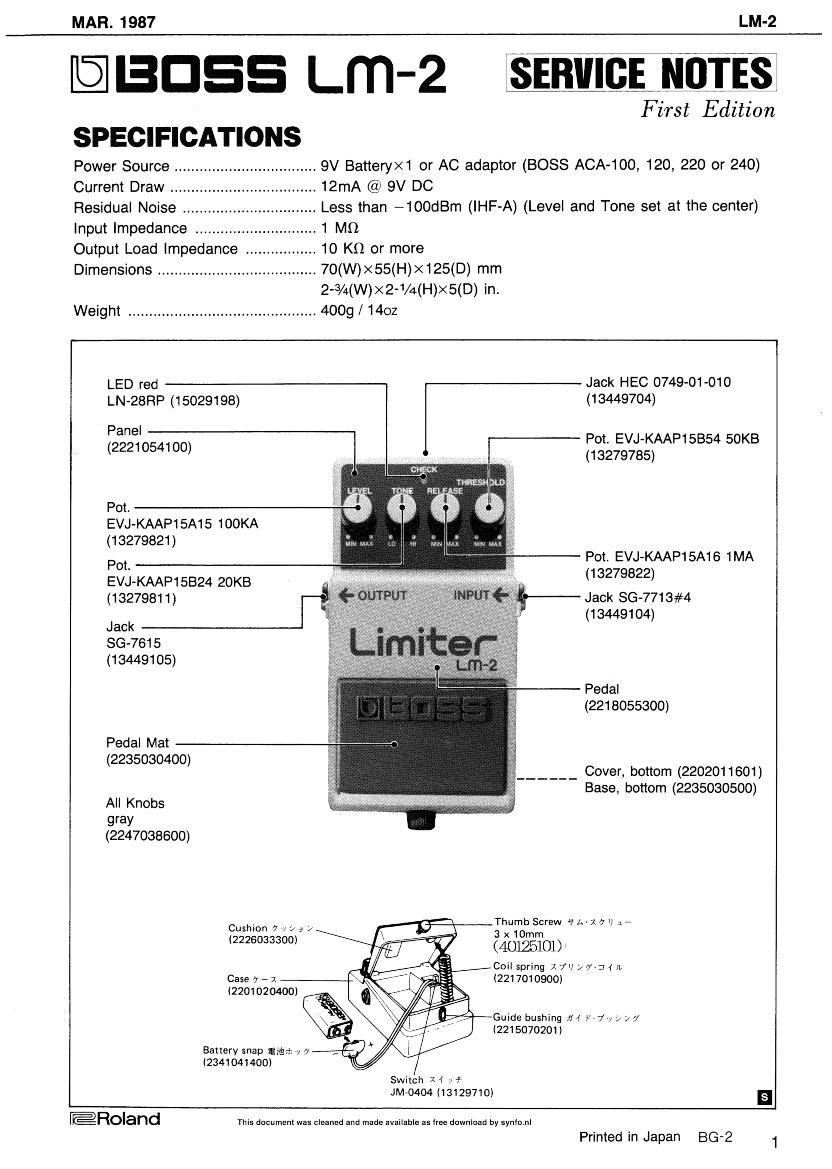

MAR. 1987 LM-2
E3055 Lm-Z SERVICE NOTES
F irst Edition
SPECIFICATIONS
Power Source .............. 9V Batteryx1 or AC adaptor (BOSS ACA-100, 120, 220 or 240)
Current Draw ............... 12mA @ 9V DC
Residual Noise ............ Less than -100dBm (lHF-A) (Level and Tone set at the center)
Input Impedance .. 1 Mn
Output Load Impedance ................. 10 K0 or more
Dimensions ...................................... 70(W)><55(H)><125(D) mm
2-3/4(W)><2-1/4(H)X5(D) in.
Weight ............................................. 4009 / 14oz
LED red Jack HEC 0749-01-010
LN-28RP (15029198) (13449704)
Panel
(2221054100) Pot. EVJ-KAAP1SBS4 50KB
(13279785)
Pot.
EVJ-KAAP15A15 100KA
(13279821)
POI POI. EVJ-KAAP15A16 1 MA
EVJ-KAAP1SBZ4 20KB (13279822)
(13279811) Jack SG-7713#4
(13449104)
Jack
SG'7615
(13449105)
Pedal
(2210055300)
Pedal Mat
(2235030400)
__ Cover, bottom (220201 1601)
Base, bottom (2235030500)
AII Knobs
gray
(2247038600)
Cushion 7 7); y :hull'rab Screw *JA~17JJ.-
(2226033300) ( 1x012m5'i01)
Coil spring z 7') >714 7L
Case 7 r 1 (2217010900)
(2201020400)
Guide bushing 7M F7l'7 9 VJ
(2215070201)
Battery snap 350$ v 7
I2341041400I
Switch 1 1' 7%
JM-0404 (13129710) 5
IEROIand This documenl was cleaned and made available as nee download by synlonl
Printed in Japan 8612 1
