Boss GT 6 Effects Processor Service Manual
This is the 26 pages manual for Boss GT 6 Effects Processor Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Boss GT 6 Effects Processor Service Manual (Ocr-read)

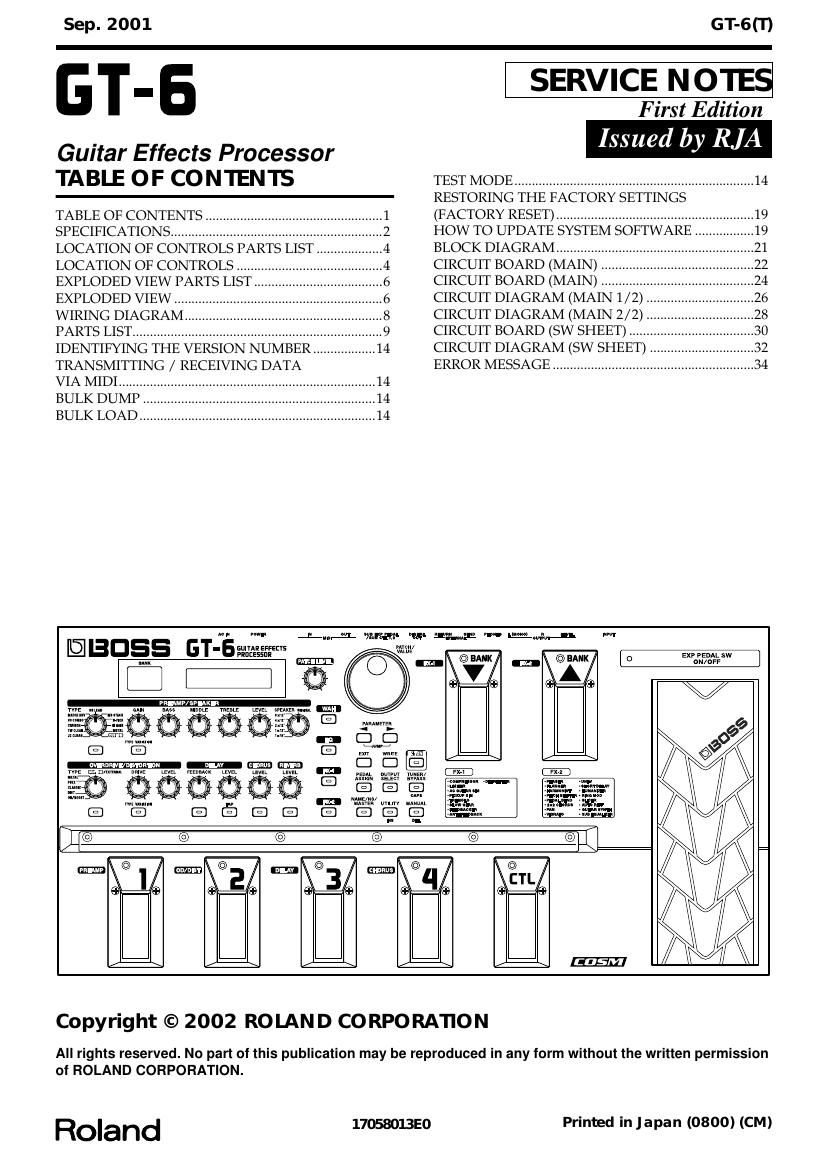

Page 1
2 Sep. 2001 SPECIFICATIONS GT-6: Guitar Effects Processor - AD Conversion 24 bit + AF method - DA Conversion 24 bit - Sampling Frequency 44.1 kHz - Program Memories 340: 140 (User) + 200 (Preset) - Nominal Input Level INPUT: -10 dBu RETURN: -10 dBu - Input Impedance INPUT: 1 M ohms RETURN: 220 k ohms - Nominal Output Level OUTPUT: 0 dBu SEND: -10 dBu - Output Impedance OUTPUT: 2 k ohms SEND: 2 k ohms - Digital Output EIAJ CP1201, S/P DIF - Dynamic Range 100 dB or greater (IHF-A) - Controls < Front Panel > (PREAMP/SPEAKER) TYPE knob GAIN knob BASS knob MIDDLE knob TREBLE knob LEVEL knob SPEAKER knob On/Off button TYPE VARIATION button (OVERDRIVE/DISTORTION) TYPE knob DRIVE knob LEVEL knob On/Off button TYPE VARIATION button (DELAY) FEEDBACK knob LEVEL knob On/Off button TAP button (CHORUS) LEVEL knob On/Off button (REVERB) LEVEL knob On/Off button (WAH) On/Off button (EQ) On/Off button (FX-1) On/Off button (FX-2) On/Off button (MASTER) PATCH LEVEL knob PARAMETER buttons L/REXIT button WRITE button EZ TONE button PEDAL ASSIGN button OUTPUT SELECT button TUNER/BYPASS button NAME/NS/MASTER button UTILITY button MANUAL button Number pedals1-4 BANK pedals (Up/Down) CTL pedal Expression pedal Expression pedal switch PATCH/VALUE dial < Rear Panel > OUTPUT LEVEL knob POWER switch Display 16 characters, 2 lines (backlit LCD) 2 characters, 7 segment LED Connectors INPUT jack OUTPUT jacks L (MONO)/R PHONES jack SEND jack RETURN jack DIGITAL OUT connector (coaxial) SUB EXP PEDAL/SUB CTL PEDAL1,2 jack MIDI connectors IN/OUT AC Adaptor jack - Power Supply AC 14 V; Supply AC adaptor (BOSS BRC series) - Current Draw 800 mA - Dimensions 515 (W) x 261 (D) x 75 (H) mm 20-5/16 (W) x 10-5/16 (D) x 3 (H) inches - Weight 4.7 kg/10 lbs 6 oz (excluding AC Adaptor) - Accessories Owners Manual English (#G6017298) AC Adaptor BRC-120V (#01786223) AC Adaptor BRC-230V (#01786234) AC Adaptor BRC-240V (#01786245) EURO CONVERTER PLUG ECP01-5A (PLUG for 230V) (#00905234) - Options MIDI Implementation English (#17041119) Foot Switch: FS-5U, FS-5L Expression Pedal: EV-5 (Roland), FV-300L + PCS-33 (Roland) Foot Switch Cable: PCS-31 (Roland) (1/4 inches Phone Plug (stereo) - 1/4 inches Phone Plug (mono) x 2) * 0 dBu = 0.775 Vrms * In the interest of product improvement, the specifications and/or appearance of this unit are subject to change without prior notice.
Page 2
3 GT-6(T)
