Boss GP 20 Effects Processor Service Manual

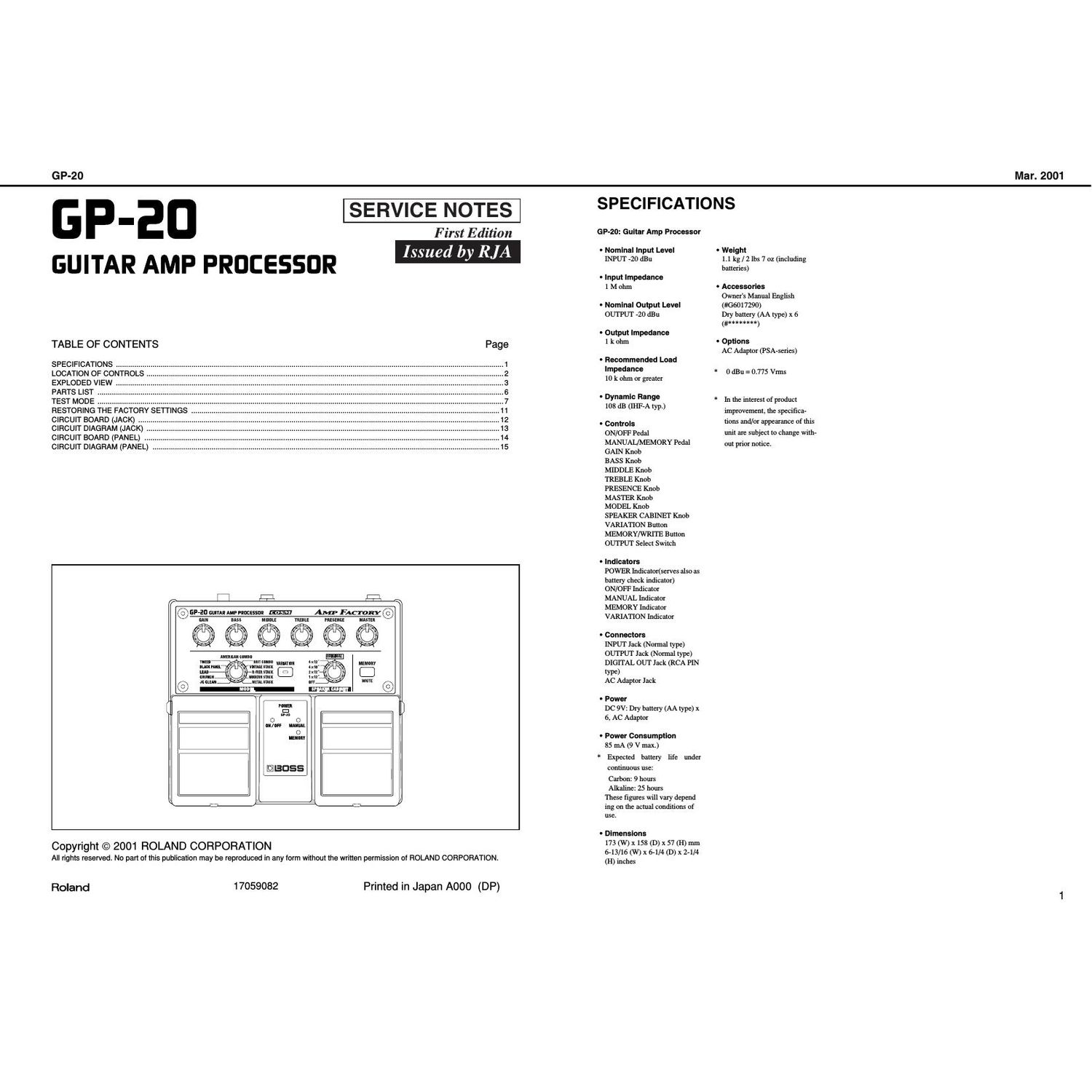

This is the 15 pages manual for Boss GP 20 Effects Processor Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Boss GP 20 Effects Processor Service Manual (Ocr-read)
Page 1
GP-20Mar. 2001 2 LOCATION OF CONTROLS HEXAGON BUTTON HEAD SCREW M4×6 (H5029850) Pot. RD901-40-125F-B54-00 (F3279802) Pot. RD901-40-125F-B54-11D (F3279803) VGA KEYTOP S BLACK WITH LENS RD901-40-125F-B54-00 (G247751001) PEDAL SHAFT (H5029851) LED L-34HDSL (1502928100) PEDAL L (G2187531) PEDAL R (G2187530) CASE (G2017146) GP-20 LED PANEL (G2217720) HEXAGON SOCKET BUTTON HEAD 4M3 (H5029852) PEDAL PLATE (G2357116) LED L-113GDT (F5029126) R-KNOB (G2477122) GP-20 PANEL (G2217716) Pot. RD901-40-125F-B54-06D (F3279804) VGA KEYTOP S WITHOUT LENS (G247751301) Jack HTJ-064-12D (H13449150MF)GP-20 REAR PANEL (G2217718) Jack YKC21-3117 (ORANGE) (01343723) Switch SS037-P2230IH-PE9 (F3159707) BATTERY COVER (G2017621) BOTTOM COVER (G2017148) BOTTOM FOOT (G2357118) LABEL CAUTION (F2539803) GP-20 QUICK MANUAL LABEL (F2539804) Adaptor Jack DJ-0711B-020 (F344940301) Screw PAN P-TITE M3×8 (40011201)
