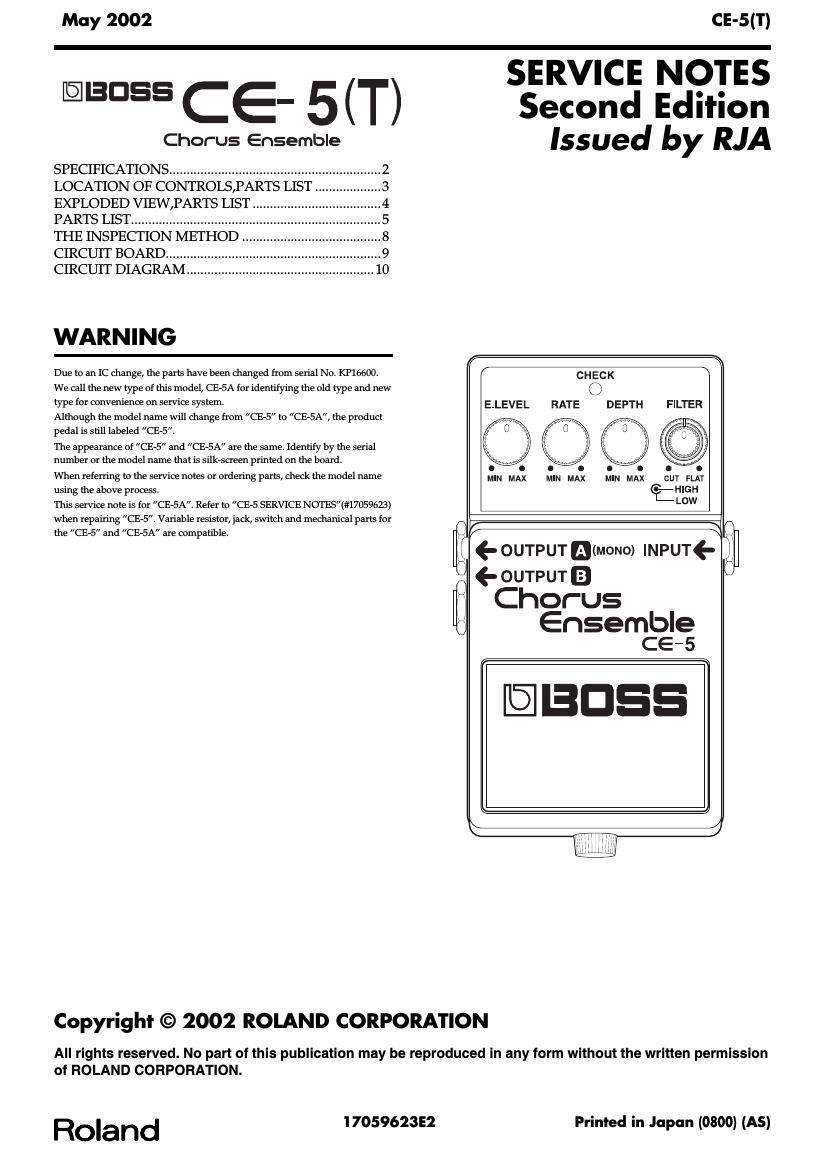

Boss CE 5T Chorus Ensemble Service Manual

Page 1

May 2002

CE-5(T)

ce- 5(T)

Chorus Ensemble

SPECIFICATIONS...
LOCATION OF CONTROLS,PARTS LIST
EXPLODED VIEW,PARTS LIST ................
PARTS LIST ..................................
THE INSPECTION METHOD
CIRCUIT BOARD...
CIRCUIT DIAGRAM..

oxoooinheww

WARNING

Due to an IC change, the parts have been changed from serial No. Kmoooo.
We call the new type ot this model, CE-SA for identifying the old type and new
type tor convenience on service system.

Although the model name will change from CE-5 to CE-5A, the product
pedal is still labeled CE-5.

The appearance of "CE-5 and "CE-5A are the same. Identify by the serial
number or the model name that is silk-screen printed on the board.

When reterring to the service notes or ordering parts, check the model name
using the above process.

This service note is for CE-5A. Refer to "CE-5 SERVICE NOTES(#17059623)
when repairing CE-5. Variable resistor, jack, switch and mechanical parts tor
the CE-5 and CE-5A are compatible.

SERVICE NOTES
Second Edition
Issued by RJA

CHECK
z'ii
k.)

E.LEVEL RATE DEPTH FILTER

{it}

o 0
MIN MAX MIN MAX MIN MAX 001 FLAT

; (-OUTPUTutmoNol INPUT(-

(- OUTPUT E)

horus

Ensemble
CE-5

@3055

Copyright © 2002 ROLAND CORPORATION

All rights reserved. No part of this publication may be reproduced in any form without the written permission

of ROLAND CORPORATION.

Roland 17059623E2

Printed in Japan (0800) (AS)
