Extracted text from BOSS BF 3 SERVICE NOTES (Ocr-read)

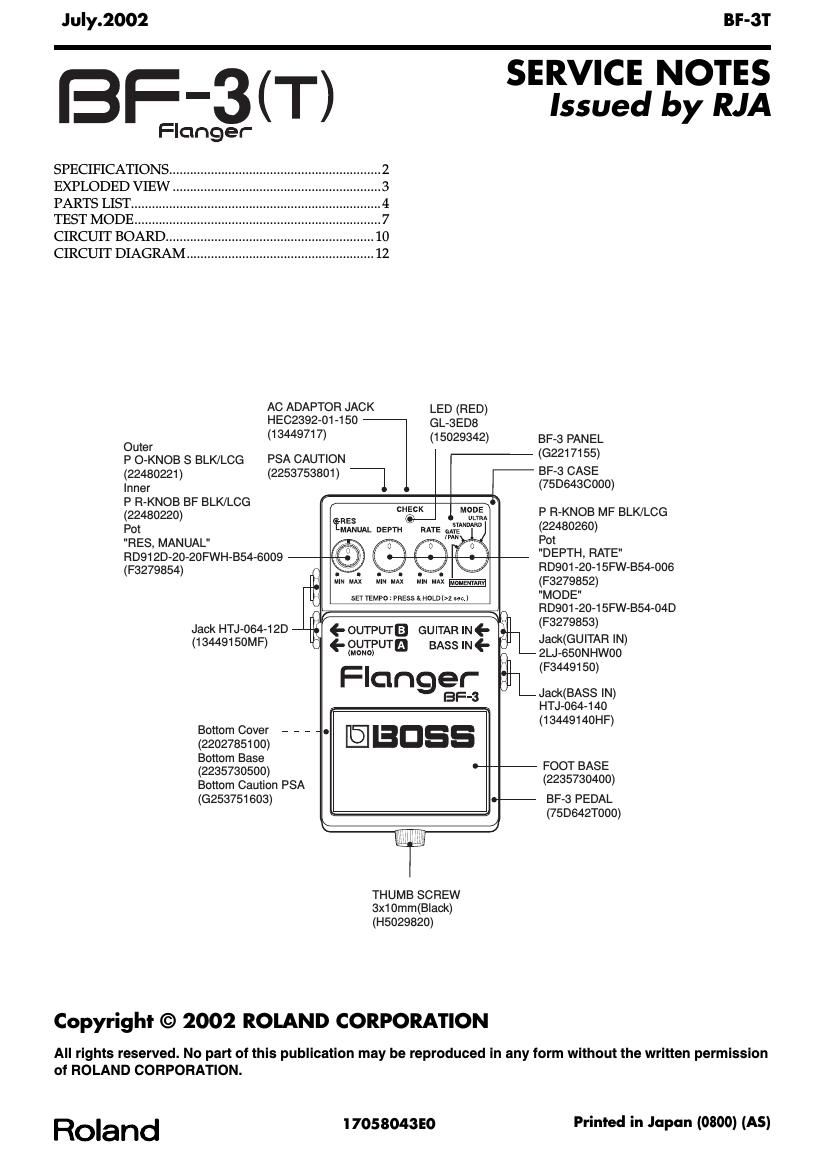

Page 1
2 July.2002 SPECIFICATIONS BF-3: Flanger - Nominal Input Level -20 dBu - Input Impedance 1 M ohm - Nominal Output Level -20 dBu - Output Impedance 1 k ohm - Recommended Load Impedance 10 k ohm or greater - Delay Time 0.3 mS -- 14.4 mS (GUITAR IN) 0.3 mS -- 6.3 mS (BASS IN) - LFO Speed 100 mS -- 18 S - Residual Noise -95 dBu (IHF-A Typ.) - Controls Pedal Switch, MANUAL Knob, RES (resonance) Knob, DEPTH Knob, RATE Knob, MODE Knob - Indicator CHECK Indicator (Serves also as tempo and battery check indicator) - Connectors GUITAR IN Jack, BASS IN Jack, OUTPUT A (MONO) Jack, OUTPUT B Jack, AC adaptor Jack (DC 9 V) - Power Supply DC 9 V: Dry battery (9 V type) S-006P/9 V (6F22/9 V) Dry battery (9 V type) 6AM6/9 V (alkaline) AC Adaptor (PSA-series: optional) - Current Draw 40 mA (DC 9 V) * Expected battery life under continuous use: Carbon: 3 hours Alkaline: 10 hours These figures will vary depending on the actual conditions of use. -Dimensions 73 (W) x 129 (D) x 59 (H) mm 2-7/8 (W) x 5-1/8 (D) x 2-3/8 (H) inches -Weight 420 g /15 oz (including Battery) -AccessoriesOwners Manual English (#G6017305) Dry battery (9 V type) S-006P/9 V (6F22/9 V) * The battery that was supplied with the unit is for temporary use-intended primarily for testing its operation. -Options AC Adaptor PSA-Series * 0 dBu = 0.775 Vrms * In the interest of product improvement, the specifications and/or appearance of this unit are subject to change without prior notice.
Page 2
3 BF-3T EXPLODED VIEW fig.bunkai Switch JM-0404 (13129710)Foot Base (2235730400) Spring (2217710900) Cushion (2226733300) Battery Connector (F3419102) Bottom Caution PSA (G253751603)Bottom Base (2235730500)Bottom Cover (2202785100) Insulation Spacer (G2167301)Pedal Guide Bush (2215770201) Nylon Washer (H5039401)Thumb Screw 3 x 10 (Black) (H5029820) Binding Tapping 3 x 6 B1 FeBC ( x 4) (H5029325) Binding Machine 3 x 6 x 0.5 ( x 2) 3 x 10 FeBC ( x 2) (40010267)
