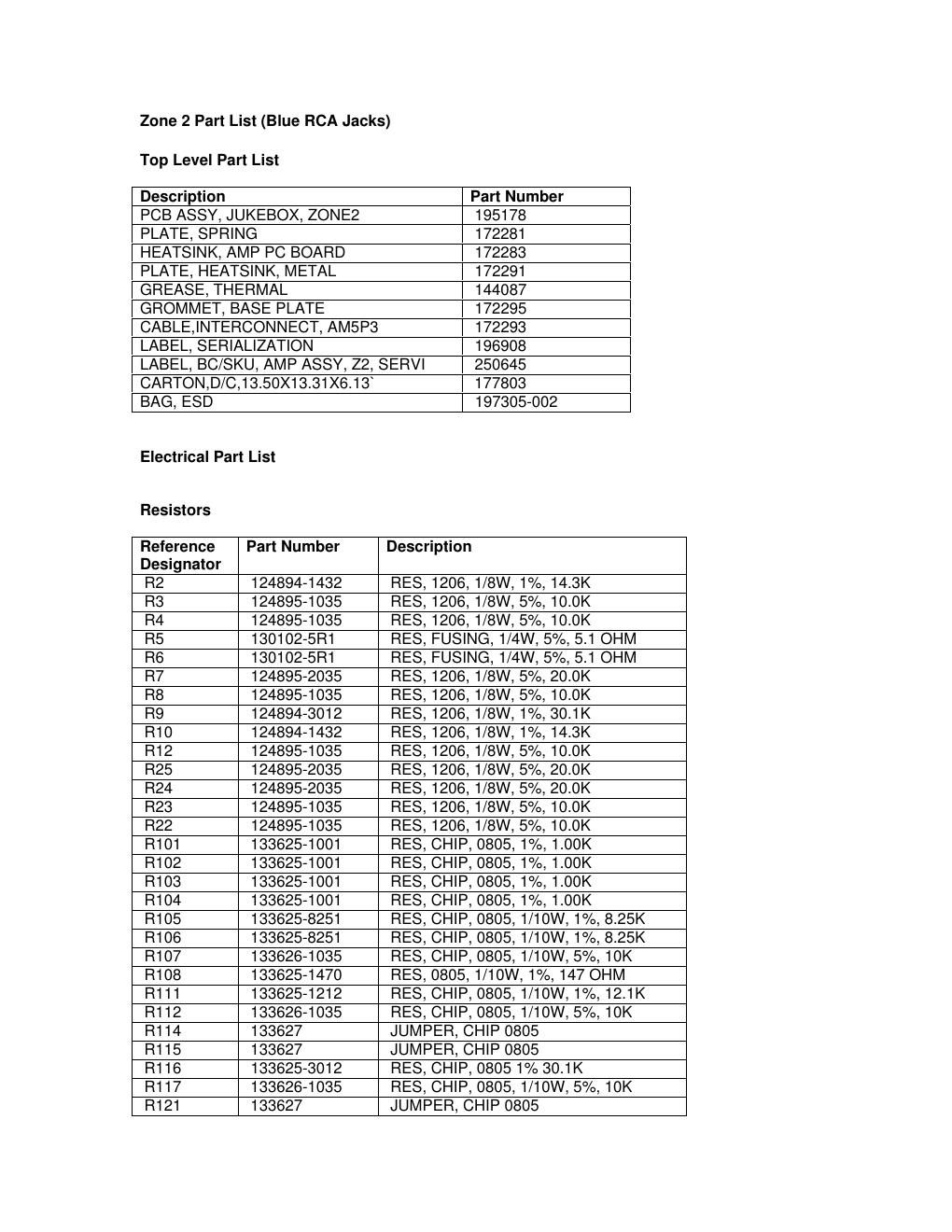

Zone 2 Part List (Blue RCA Jacks)
Top Level Part List
Description Part Number
PCB ASSY, JUKEBOX, ZONE2 195178
PLATE, SPRING 172281
HEATSINK, AMP PC BOARD 172283
PLATE, HEATSINK, METAL 172291
GREASE, THERMAL 144087
GROMMET, BASE PLATE 172295
CABLE,INTERCONNECT, AM5P3 172293
LABEL, SERIALIZATION 196908
LABEL, BC/SKU, AMP ASSY, Z2, SERVI 250645
CARTON,D/C,13.50X13.31X6.13 177803
BAG, ESD 197305-002
Electrical Part List
Resistors
Reference Part Number Description
Designator
R2 124894-1432 RES, 1206, 1/8W, 1%, 14.3K
R3 124895-1035 RES, 1206, 1/8W, 5%, 10.0K
R4 124895-1035 RES, 1206, 1/8W, 5%, 10.0K
R5 130102-5R1 RES, FUSING, 1/4W, 5%, 5.1 OHM
R6 130102-5R1 RES, FUSING, 1/4W, 5%, 5.1 OHM
R7 124895-2035 RES, 1206, 1/8W, 5%, 20.0K
R8 124895-1035 RES, 1206, 1/8W, 5%, 10.0K
R9 124894-3012 RES, 1206, 1/8W, 1%, 30.1K
R10 124894-1432 RES, 1206, 1/8W, 1%,14.3K
R12 124895-1035 RES, 1206, 1/8W,5%,10.0K
R25 124895-2035 RES, 1206, 1/8W, 5%, 20.0K
R24 124895-2035 RES, 1206, 1/8W, 5%, 20.0K
R23 124895-1035 RES, 1206, 1/8W, 5%, 10.0K
R22 124895-1035 RES, 1206, 1/8W, 5%, 10.0K
R101 133625-1001 RES, CHIP, 0805, 1%, 1.00K
R102 133625-1001 RES, CHIP, 0805, 1%, 1.00K
R103 133625-1001 RES, CHIP, 0805, 1%, 1.00K
R104 133625-1001 RES, CHIP, 0805, 1%, 1.00K
R105 133625-8251 RES, CHIP, 0805, 1/10W, 1%, 8.25K
R106 133625-8251 RES, CHIP, 0805, 1/10W, 1%, 8.25K
R107 133626-1035 RES, CHIP, 0805, 1/1OW, 5%, 10K
R108 133625-1470 RES, 0805, 1/10W, 1%, 147 OHM
R111 133625-1212 RES, CHIP, 0805, 1/10W, 1%, 12.1K
R112 133626-1035 RES, CHIP, 0805, 1/10W, 5%, 10K
R114 133627 JUMPER, CHIP 0805
R115 133627 JUMPER, CHIP 0805
R116 133625-3012 RES, CHIP, 0805 1% 30.1K
R117 133626-1035 RES, CHIP, 0805, 1/1OW, 5%, 10K
R121 133627 JUMPER, CHIP 0805
Page 2
Reference Part Number Description
Designator
R122 133627 JUMPER, CHIP 0805
R123 133627 JUMPER, CHIP 0805
R127 133627 JUMPER, CHIP 0805
R132 133627 JUMPER, CHIP 0805
R135 133626-3315 RES, CHIP, 0805, 1/10W, 5%, 330 OHM
R136 133626-3315 RES, CHIP, 0805, 1/10W, 5%, 330 OHM
R137 133626-1005 RES, CHIP, 0805, 5%, 10 OHM
R143 133626-1045 RES, CHIP, 0805, 5%, 100K
R149 133626-2045 RES, CHIP, 0805, 1/1OW, 5%, 200K
R174 124894-5901 RES, 1206, 1/8W, 1%, 5.90K
R175 124894-2491 RES, 1206, 1/8W, 1%, 2.49K
R176 124895-1035 RES, 1206, 1/8W, 5%, 10.0K
R177 124894-2491 RES, 1206, 1/8W, 1%, 2.49K
R178 124894-4992 RES, 1206, 1/8W, 1%, 49.9K
R179 124894-4992 RES, 1206, 1/8W, 1%, 49.9K
R180 124895-1045 RES, 1206, 1/8W, 5%, 100K
R181 124895-1025 RES, 1206, 1/8W,5%,1.00K
R182 124894-7501 RES, 1206, 1/8W, 1%, 7.50K
R183 124895-1025 RES, 1206, 1/8W, 5%, 1.00K
R184 121243-1212215 RES, CF, 5%, 52MM, 220 OHM
R185 124895-1045 RES, 1206, 1/8W, 5%, 100K
R186 124895-1025 RES, 1206, 1/8W, 5%, 1.00K
R187 124894-7501 RES, 1206, 1/8W, 1%, 7.50K
R188 124895-1025 RES, 1206, 1/8W, 5%, 1.00K
R189 124895-1025 RES, 1206, 1/8W, 5%, 1.00K
R190 124895-1035 RES, 1206, 1/8W, 5%, 10.0K
R191 124895-1025 RES, 1206, 1/8W,5%,1.00K
R192 124895-1035 RES, 1206, 1/8W, 5%, 10.0K
R193 121243-1212215 RES, CF, 5%, 52MM, 220 OHM
R194 149322-100 RES, 2512, 1W, 5%, 0.1 OHM
R195 124896 JUMPER, CHIP
R196 133627 JUMPER, CHIP 0805
R201 133625-1001 RES, CHIP, 0805, 1%, 1.00K
R202 133625-1001 RES, CHIP, 0805, 1%, 1.00K
R203 133625-1001 RES, CHIP, 0805, 1%, 1.00K
R204 133625-1001 RES, CHIP, 0805, 1%, 1.00K
R205 133625-8251 RES, CHIP, 0805, 1/10W, 1%, 8.25K
R206 133625-8251 RES, CHIP, 0805, 1/10W, 1%, 8.25K
R207 133626-1035 RES, CHIP, 0805, 1/10W, 5%, 10K
R208 133625-1470 RES, 0805, 1/10W, 1%, 147 OHM
R211 133625-1212 RES, CHIP, 0805, 1/10W, 1%, 12.1K
R212 133626-1035 RES, CHIP, 0805, 1/10W,5%,10K
R214 133627 JUMPER, CHIP 0805
R215 133627 JUMPER, CHIP 0805
R216 133625-3012 RES, CHIP, 0805 1% 30.1K
R217 133626-1035 RES, CHIP, 0805, 1/10W,5%,10K
R221 133627 JUMPER, CHIP 0805
R222 133627 JUMPER, CHIP 0805
R223 133627 JUMPER, CHIP 0805
R227 133627 JUMPER, CHIP 0805
R232 133627 JUMPER, CHIP 0805
R235
133626-3315
RES, CHIP, 0805, 1/10W, 5%, 330 OHM
