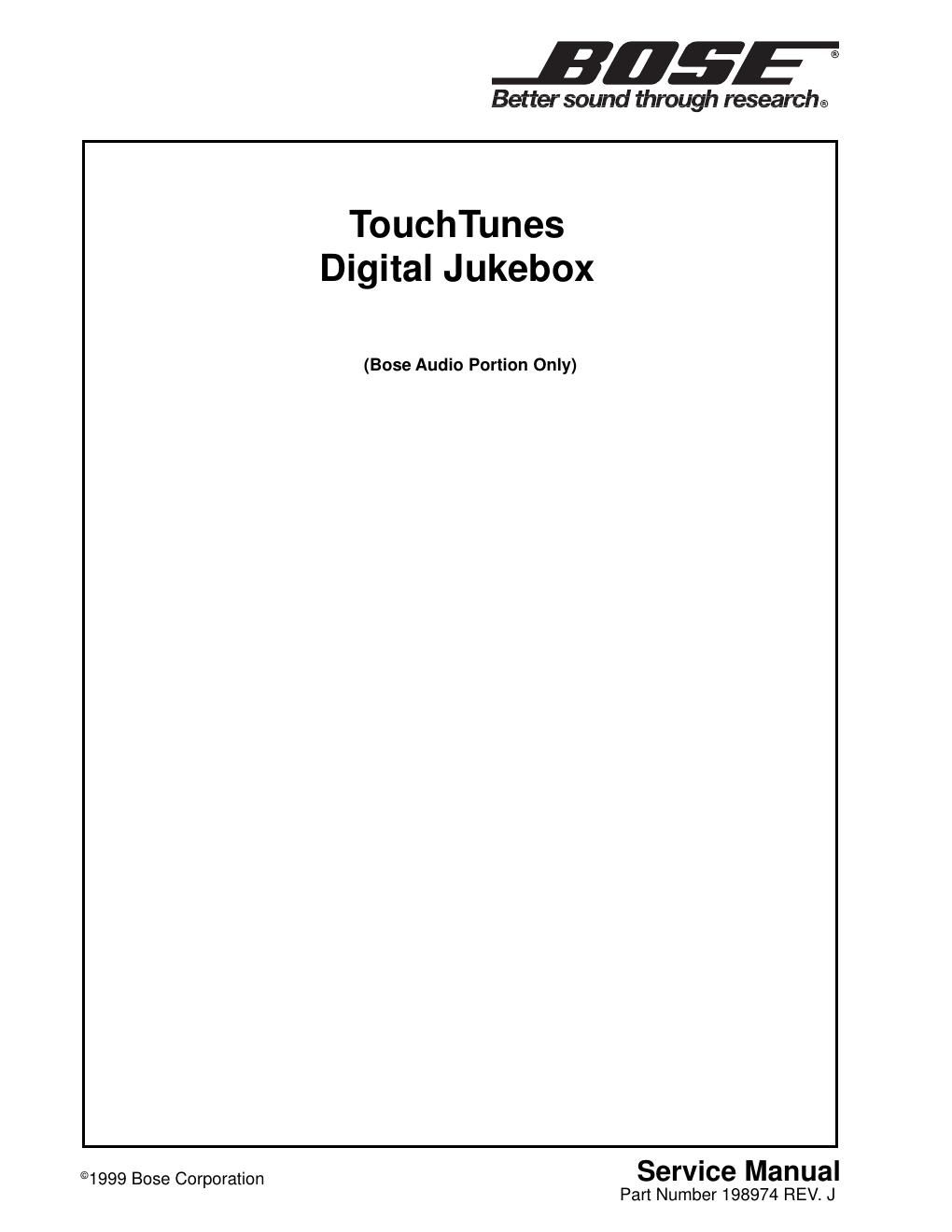

Bose touchtunes jukebox sound by bose
This is the 34 pages manual for bose touchtunes jukebox sound by bose.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from bose touchtunes jukebox sound by bose (Ocr-read)
Page 1
1 Contents Safety Information ............................................................................................................................ 2 Electrostatic Discharge Sensitive (ESDS) Device Handling ........................................................ 2 Jukebox Disassembly/Assembly Procedures ............................................................................ 3-4 Jukebox Remote control ................................................................................................................. 5 Disassembly/Assembly Procedures .............................................................................................. 5 Figure 1. Remote Control Assembly Exploded View ........................................................................5 Test Procedures ............................................................................................................................ 6-8 Part List Notes .................................................................................................................................. 9 Main Part List .................................................................................................................................... 9 Figure 2. Jukebox Assembly ..........................................................................................................10 Figure 3. Woofer Wiring Diagram ...................................................................................................10 Figure 4. Rear Panel Assembly ......................................................................................................11 Zone 1 Amp Electrical Part List ............................................................................................... 12-16 Zone 2 Amp Electrical Part List ............................................................................................... 17-19 I/O PCB Part List ....................................................................................................................... 20-22 Remote Control Part List ............................................................................................................... 23 Figure 5. Remote Control Exploded View ......................................................................................23 141 ¨JB Part List .............................................................................................................................. 24 Figure 6. 141JB Exploded View .....................................................................................................24 ZONE 2 Speaker Connections Greater Than 3.2 W ..................................................................... 25 Figure 7. Zone 2 External Speaker Connections ...........................................................................25 ZONE 2 Speaker Connections Less Than 3.2 W .......................................................................... 26 Figure 8. Low DC Resistance Connections ...................................................................................26 Figure 9. Low DC Resistance Connections ...................................................................................26 Troubleshooting Tips ..................................................................................................................... 27 Figure 10. Audio Section Wiring/Block Diagram ............................................................................28 Figure 11. Control Section Wiring/Block Diagram ..........................................................................29 Cable Drawings ......................................................................................................................... 30-31 PROPRIETARY INFORMATION THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION OF BOSE ¨ CORPORATION WHICH IS BEING FURNISHED ONLY FOR THE PURPOSE OF SERVICING THE IDENTIFIED BOSE PRODUCT BY AN AUTHORIZED BOSE SERVICE CENTER OR OWNER OF THE BOSE PRODUCT, AND SHALL NOT BE REPRODUCED OR USED FOR ANY OTHER PURPOSE. Caution: The TouchTunes Digital Jukebox contains no user serviceable parts. To pre- vent warranty infractions, refer servicing to warranty service stations or factory service.
Page 2
2 SAFETY INFORMATION 1. Parts that have special safety characteristics are identified by the symbol on schematics or by special notes in the part lists. Use only replacement parts that have critical characteristics recommended by the manufacturer. 2. Make leakage current or resistance measurements to determine that exposed parts are acceptably insulated from the supply circuit before returning the unit to the customer. Use the following checks to perform these measurements: A. Leakage Current Hot Check: With the unit completely assembled, plug the AC line cord directly into a 120V AC outlet. (Do not use an isolation transformer during this test.) Use a leakage current tester or a metering system that complies with American National Standards Institute (ANSI) C101.1 "Leakage Current for Appliances" and Underwriters Laboratories (UL) 813. With the unit's AC switch first in the ON position and then in the OFF position, measure from a known earth ground (metal water pipe, conduit, etc.) to all exposed metal parts of the unit (antennas, handle bracket, metal cabinet, screw-heads, metallic overlays, control shafts, etc.), especially any exposed metal parts that offer an electrical return path to the chassis. Any current measured must not exceed 0.75 milliamp. Reverse the unit's power cord plug in the outlet and repeat the test. ANY MEASUREMENTS NOT WITHIN THE LIMITS SPECIFIED HEREIN INDICATE A POTENTIAL SHOCK HAZARD THAT MUST BE ELIMINATED BE- FORE RETURNING THE UNIT TO THE CUSTOMER. B. Insulation Resistance Test Cold Check: (1) Unplug the power cord from the wall outlet and connect a jumper wire between the two prongs of the plug. (2) Turn on the power switch of the unit. (3) Measure the resistance with an ohmmeter between the jumpered AC plug and each exposed metallic cabinet part on the unit. The reading should be between infinite. When there is no return path to the chassis, the reading must be "infinite". If it is not within the limits specified, there is the possibility of a shock hazard, and the unit must be repaired and re- checked before it is returned to the customer. ELECTROSTATIC DISCHARGE SENSITIVE (ESDS) DEVICE HANDLING This unit contains ESDS devices. We recommend the following precautions when repairing, replacing or transporting ESDS devices: ¥ Perform work at an electrically grounded work station. ¥ Wear wrist straps that connect to the station or heel straps that connect to conductive floor mats. ¥ Avoid touching the leads or contacts of ESDS devices or PC boards even if properly grounded. Handle boards by the edges only. ¥ Transport or store ESDS devices in ESD protective bags, bins, or totes. Do not insert unprotected devices into materials such as plastic, polystyrene foam, clear plastic bags, bubble wrap or plastic trays.
