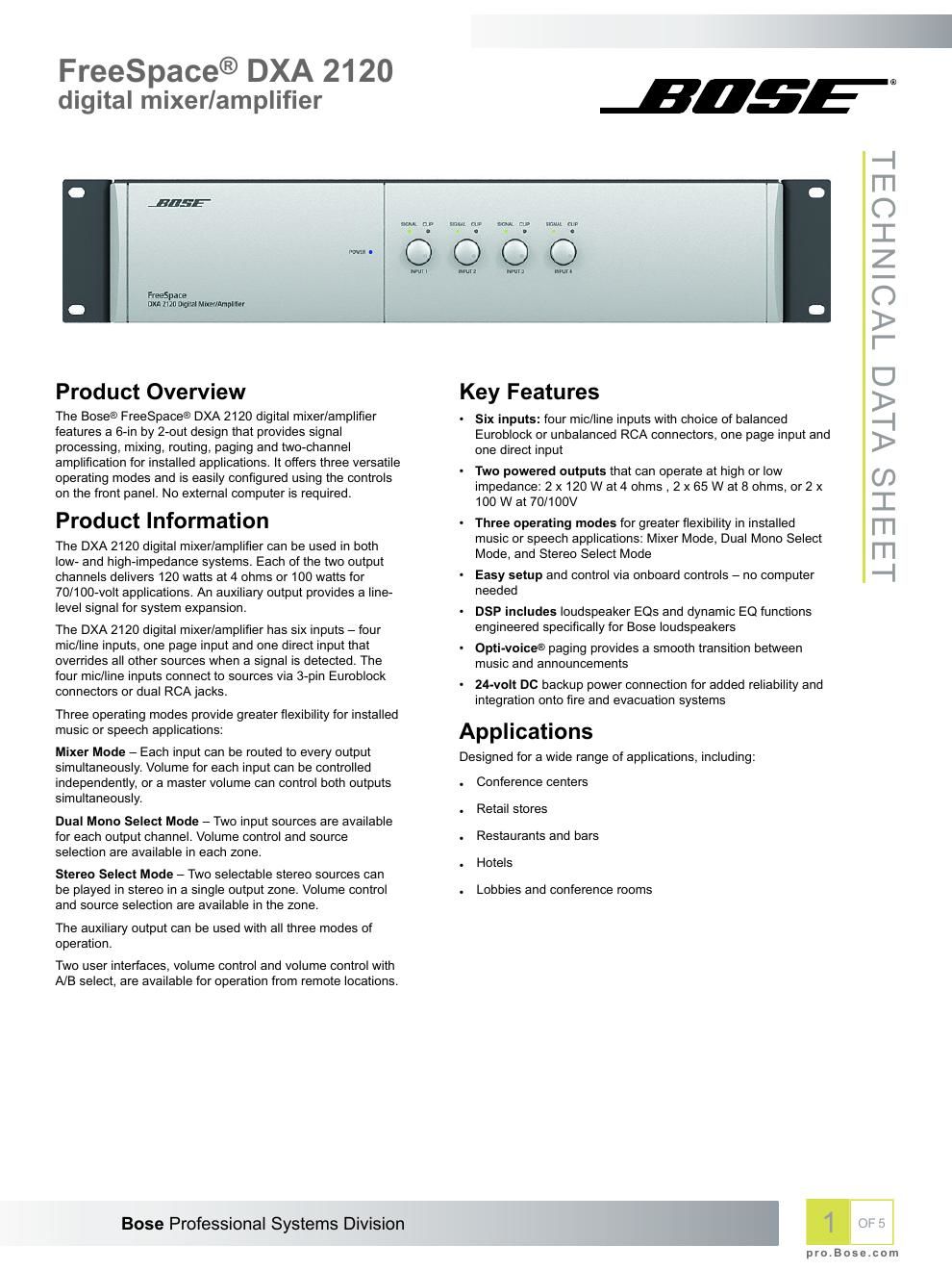

Page 1

FreeSpace® DXA 2120

digital mixer/amplifier

,
JHSE
M- O
_.
filial-Imam

was

999 l

1044 cu m a.»

Product Overview

The Bose® FreeSpace® DXA 2120 digital mixer/amplifier
features a 6-in by 2-out design that provides signal
processing, mixing, routing, paging and two-channel
amplification for installed applications. It offers three versatile
operating modes and is easily configured using the controls
on the front panel. No external computer is required.

Product Information

The DXA 2120 digital mixer/amplifier can be used in both
low- and high-impedance systems. Each of the two output
channels delivers 120 watts at 4 ohms or 100 watts for
70/100-volt applications. An auxiliary output provides a line-
level signal for system expansion.

The DXA 2120 digital mixer/amplifier has six inputs - four
mic/line inputs, one page input and one direct input that
overrides all other sources when a signal is detected. The
four mic/line inputs connect to sources via 13-pin Euroblock
connectors or dual RCAjacks.

Three operating modes provide greater flexibility for installed
music or speech applications:

Mixer Mode - Each input can be routed to every output
simultaneously. Volume for each input can be controlled
independently, or a master volume can control both outputs
simultaneously.

Dual Mono Select Mode - Two input sources are available
for each output channel. Volume control and source
selection are available in each zone.

Stereo Select Mode - Two selectable stereo sources can
be played in stereo in a single output zone. Volume control
and source selection are available in the zone.

The auxiliary output can be used with all three modes of
operation.

Two user interfaces, volume control and volume control with
AlB select, are available for operation from remote locations.

Bose Professional Systems Division

Key Features

- Six inputs: four mic/line inputs with choice of balanced
Euroblock or unbalanced RCA connectors, one page input and
one direct input

~ Two powered outputs that can operate at high or low
impedance: 2 x 120 W at 4 ohms ,2 x 65 W at 8 ohms, or 2 x
100 W at 70/100V

- Three operating modes for greater flexibility in installed
music or speech applications: Mixer Mode, Dual Mono Select
Mode, and Stereo Select Mode

~ Easy setup and control via onboard controls - no computer
needed

- DSP includes loudspeaker EQs and dynamic EQ functions
engineered specifically for Bose loudspeakers

- Opti-voice® paging provides a smooth transition between
music and announcements

- 24-volt DC backup power connection for added reliability and
integration onto fire and evacuation systems

Applications

Designed for a wide range of applications, including:
. Conference centers

. Retail stores

. Restaurants and bars

. Hotels

. Lobbies and conference rooms

lI

pro.Bose.com

Page 2

FreeS ace® DXA 2120 8
digital nEixer/amplifier 105E

Technical Specifications

Mo_

Output Channels 2 channels

_|
Power W m
Amplifier Power 2x120Wat40hms,2x65WaI8ohms,ur2x100Wat70/1DOV 0
Audio ' :
Frequency Response 40 Hz - 16 kHz (+DKI dB) I
Signal-to-Noise Ratio 75 dB (below rated power, A-weighted) Z
THD 50.5 % (at full rated power) _
Channel Separation (Crosslalk) 5-60 dBV (below rated power, 1 kHz) 0
Dynamic Range 80 dB >
AID and D/A Converters 24-bit |_
Sample Rate 44.1 kHz
Audio lnpllfi U
Input Channels 6 channels >
Mic/Line Inputs I Line Input: Page Inputs I Direct Inputs _|
Inputs A balanced 4 unbalanced 1 balanced 1 balanced
Connectors, Input 31-pin Euroblook Dual RCA (summed to mono) 4-pin Euroblook lpin Eurohlock >
Input Range 20 Hz - 20 kHz 20 Hz - 20 kHz 20 Hz - 20 kHz 20 Hz - 20 kHz
Input Impedance Mic 2 kfl I Line 25 kfl 10 kn 400 0 13 k0 CD
Maximum Input Level MIC -20 dBu I Line 10 dBu +10 dBu -30 dBu +8 dBu I
Equivalent Inpul Noise -122 dB (A-weighted/ 20 Hz - 20 N/A 422 dB (A-weighted/ 20 Hz - 20 N/A
kHz) kHz) ITI
m
_|

Amplifier Outputs Auxiliary Output
Outputs 2 1
Connectors, Output 5-terminal inverted Euroblock 3-pin Eumblock
Nominal Load 50 fl @ 70 V, 100 Q @ 100 V NIA
Output Impedance 4 Q 400 0
Maximum Output Level NIA 2.2 dBV
mam_
LED Status Indicators Blue LED: power, Green LED: signal present, Red LED: clip
5mm. _
Mains Voltage 100 V version: 100 VAC; 50/60 Hz

120 VI220-240 V version: 120 V/220-240 VAC; 50/60 Hz
AC Power Consumption Idle: 39 W, Active: 350 W
Maximum Inrush Current 23.2 A @ 230 V - 50 Hz

33.2A@120V-60 Hz
Overload Prolection T6.3ALI250 V (100 V and 120 V) or T3.15ALI250 V (220-240 V)
DC Backup Fower/Conneclor +24 V (:1 %) Connector 2-terminal barrier strip
Input Voltage Level +24 V
Minimum Input Power 50 W
Maximum Input Power 150 W
rum -
Dimensions 3.5" H x 16.5 W x 13.8" D (90 mm x 420 mm x 349 mm)
Net Weight 32 lb (14.4 kg)
Shipping Weight 40 lb (18.1 kg)
Operating Temperature 32 "F - 104 F (0 C -40 0)
Storage Temperature 40 F - 158 F (40 "c - 7o "(2)
Humidity 40 % - 90 % relaIive humidity
General
Communication Purl RS-232 serial port

r
Bose Professional Systems Division OF 5

pro.Bose.com
