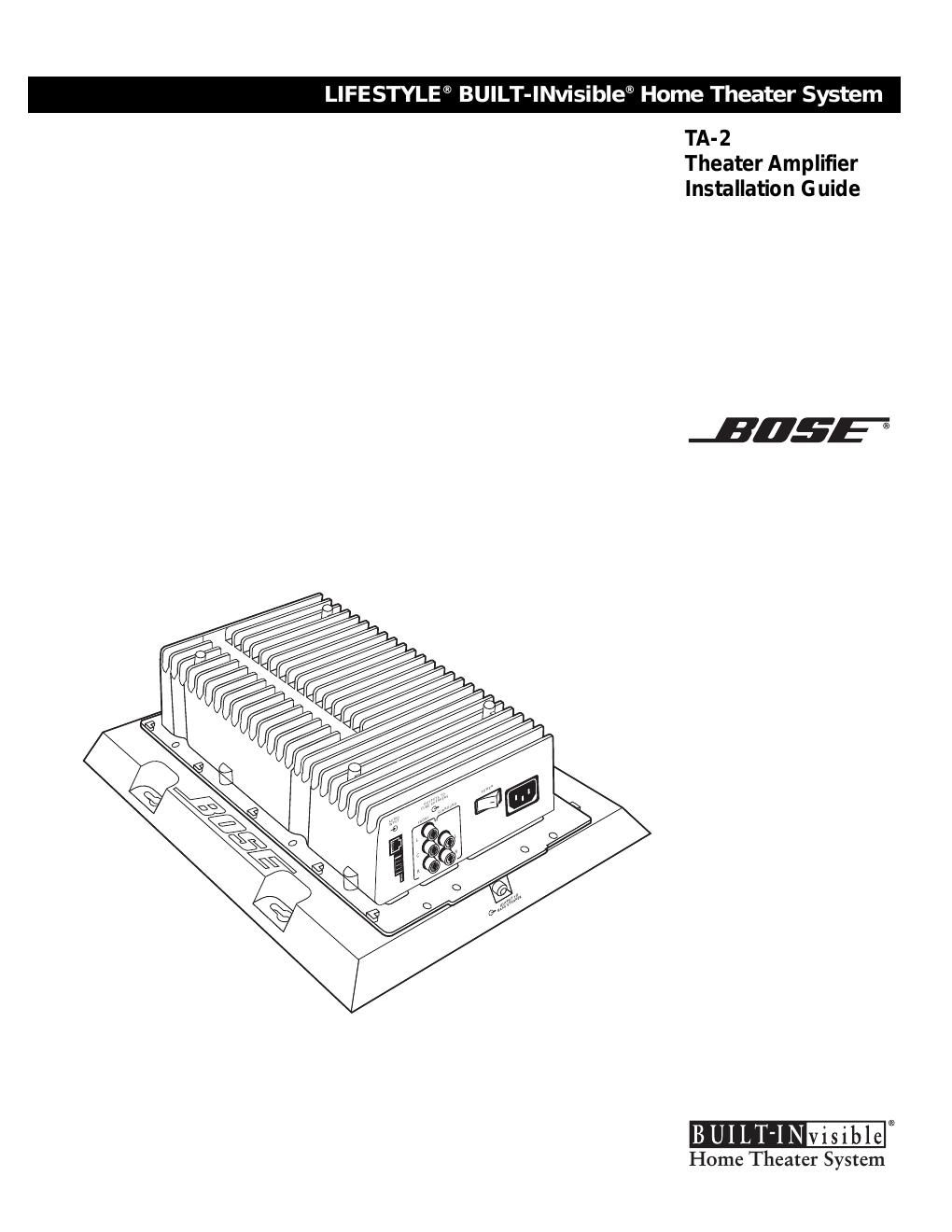

Page 1
2 Safety Information For the intended audience This guide has been written for professional installers of music systems or for licensed electricians. CAUTION: Only an experienced contractor should install the BUILT-INvisible ® home theater system from Bose. Familiarity with standard electrical practices, as recognized by a licensed engineer or governmental agency in your area, is necessary. If you do not have these qualifications, do not install the BUILT-INvisible home theater system, the system chassis, or any other installed Bose ® products. CAUTION: Do not mount the chassis to an uninsulated exterior wall or in locations where condensation may occur. CAUTION: Check local regulations before installing or wiring the TA-2 theater amplifier. The building code may require professional installation by a skilled technician or licensed contractor. Regional or electrical codes may require similar qualifications for wiring the system. WA R N IN G: The TA-2 theater amplifier is an electrical appli - ance. There are no user-serviceable parts inside. As with all electrical appliances, dangerous electrical shock may result if unqualified personnel attempt repair. Only Bose-authorized personnel should perform service. WARNING: To reduce the risk of fire or electric shock, do not expose this system to rain or moisture. CAUTION: To reduce the risk of electric shock, do not disas- semble the TA-2 theater amplifier chassis. There are no user- serviceable parts inside. Refer servicing to qualified service personnel. The CAUTION marks shown here are on the bottom end of the chassis. The lightning flash with arrowhead symbol, within an equilateral triangle, alerts the user to the presence of uninsulated dangerous voltage within the chassis enclosure. This voltage may be sufficient to constitute a risk of electrical shock. The exclamation point within an equilateral triangle alerts the user to the presence of important operat- ing instructions in this installers guide. WARNING: To prevent electric shock do not use this plug with an extension cord, receptacle or other outlet unless the blades can be fully inserted to prevent blade exposure. RISK OF ELECTRICAL SHOCK - DO NOT OPEN TO PREVENT ELECTRICAL SHOCK, DO NOT REMOVE COVER. NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED PERSONNEL. TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. CAUTION ADVERTISSEMENT : Nexposez pas ce système à la pluie òu à lhumitité afin de réduire le risque dincendie ou de choc électrique. AVIS DE PRECAUTION : Pour réduire le risque de choc, ne retirez pas le couvercle de ce système. Il ny a pas de pièces pouvant être réparées par lutilisateur à lintérieur. Veuillez vous adresser a des réparateurs agréés en cas de problème. Le avis de précaution contenus sur cette page figurent à larrière de votre système. Le symbole déclair avec une tête de flèche con- tenue dans un triangle équilateral a pour but davertir lutilisateur de la présence dune tension dan- gereuse non isolee à lintérieur de lébénisteries du système qui peut être assez haute pour causer un risque de choc électricque. Le point dexclamation contenu dans un triangle équilateral, tel quil apparaît sur le système, a pour but davertir lutilisateur de la présence dinstruc- tions importantes relatives à lutilisation et à lentretien dans ce mode demploi. ATTENTION : Pour prevenir les chocs electriques ne pas utilizer cette fiche polarizee avec un prolongateur, une prise de courant ou une autre sortie de courant, sauf si les lames peuvent etre inserees a fond sans en laisser aucune partie a decouvrir. RISQUE DE CHOC ÉLECTRIQUE-NE PAS OUVRIR AFIN DE PRÉVENIR TOUT RISQUE DE CHOC ÉLECTRIQUE, NE PAS ENLEVER LE COUVERCLE ARRIÈRE. IL NE SE TROUVE À LINTÉRIEUR AUCUNE PIÈCE POUVANT ÊTRE RÉPARÉE PAR LUTILISATEUR. SADRESSER À UN RÉPARATEUR COMPÉTENT. AFIN DE PRÉVENIR TOUT RISQUE DINCENDIE OU DE CHOC ÉLECTRIQUE, NE PAS LAISSER CETTE UNITÉ À LA PLUIE OU À LHUMIDITÉ. AVIS
