Bose t1 tonematch audio engine rev 01

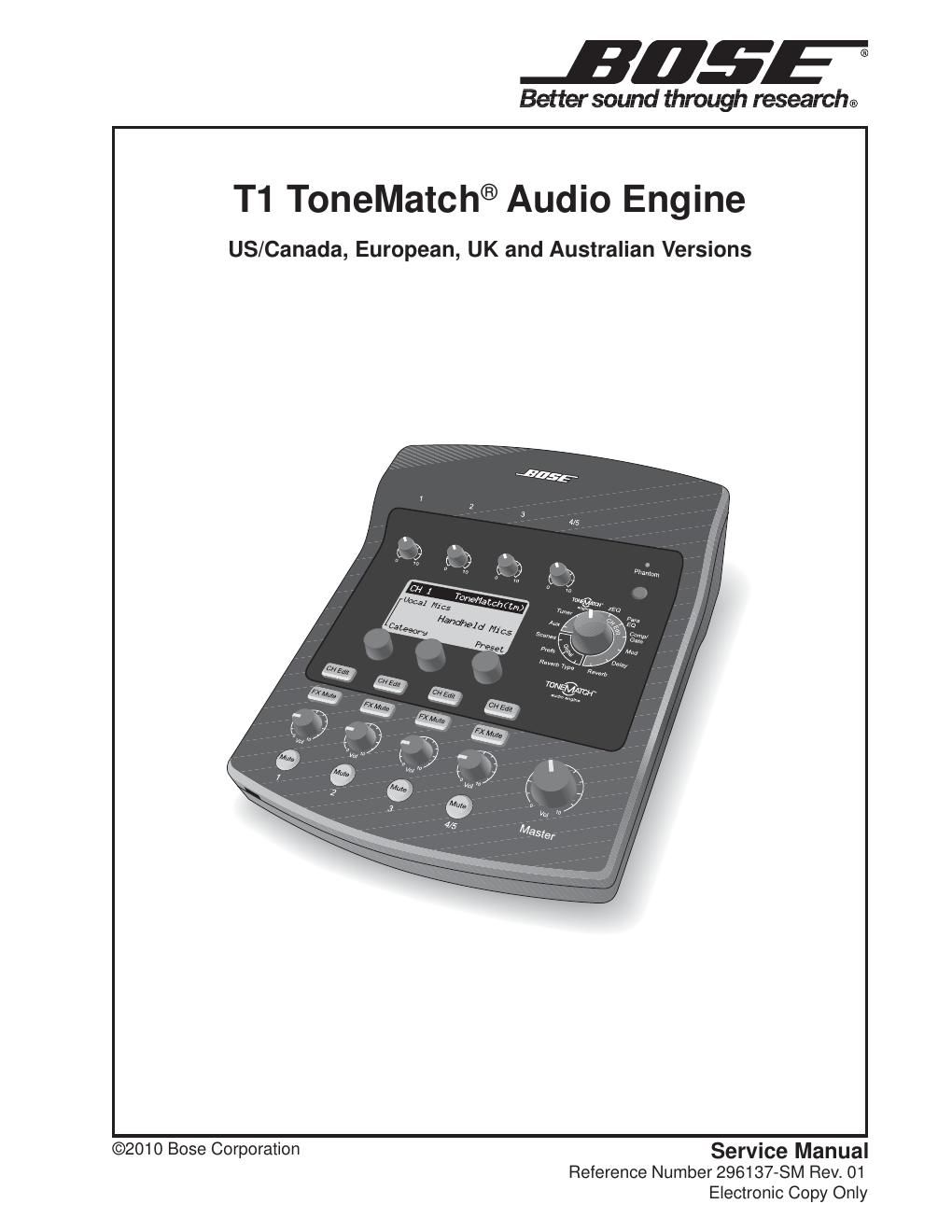

This is the 70 pages manual for bose t1 tonematch audio engine rev 01.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from bose t1 tonematch audio engine rev 01 (Ocr-read)
Page 1
2 Contents Safety Information ............................................................................................................................. 3 Warranty ............................................................................................................................................. 3 Specifications .................................................................................................................................... 4 Product Description ...................................................................................................................... 4-6 Electrostatic Discharge Sensitive (ESDS) Device Handling ......................................................... 7 Part List Notes ................................................................................................................................... 7 Accessories....................................................................................................................................... 7 Packaging Part List, T1 ToneMatch ® Audio Engine (see Figure 1) ............................................... 8 Figure 1. T1 ToneMatch Audio Engine Packaging View .....................................................................8 Main Part List, T1 ToneMatch Audio Engine (see Figure 2) .......................................................... 9 Figure 2. T1 ToneMatchTM Audio Engine Exploded View ................................................................10 Electrical Part Lists .................................................................................................................... 11-39 Input/Output PCB Assembly ..................................................................................................... 11-14 Digital Signal Processor (DSP) PCB Assembly ...................................................................... 15-39 Display PCB Assembly ................................................................................................................... 39 Disassembly Procedures .........................................................................................................40-41 Test Procedures ........................................................................................................................ 42-43 Appendix.................................................................................................................................... 44-65 T1 ToneMatch Test Cables ............................................................................................................. 44 Software Update Procedure ........................................................................................................... 45 Theory of Operation .................................................................................................................. 46-51 Circuit Board Layout Diagrams ............................................................................................... 52-56 Figure 3. DSP PCB Top Component Layout and Etch ......................................................................52 Figure 4. DSP PCB Top Component Layout and Power Layer Etch ................................................53 Figure 5. DSP PCB Top Component Layout and Ground Layer Etch ...............................................54 Figure 6. DSP PCB Bottom Component Layout and Etch ................................................................55 Figure 7. Input / Output PCB Top Component Layout and Etch .......................................................56 Figure 8. Input / Output PCB Bottom Component Layout and Etch .................................................56 Figure 9. -15V PCB Top Component Layout and Etch .....................................................................56 Figure 10. -15V PCB Bottom Component Layout and Etch ..............................................................56 Figure 11. Display PCB Top Component Layout and Etch ...............................................................56 IC Diagrams ............................................................................................................................... 57-65 Troubleshooting ........................................................................................................................ 66-69 Service Manual Revision History ................................................................................................... 69
Page 2
3 Safety Information 1. Parts that have special safety characteristics are identified by the symbol on schematics or by special notes on the parts list. Use only replacement parts that have critical characteristics recommended by the manufacturer. 2. Make leakage current or resistance measurements to determine that exposed parts are acceptably insulated from the supply circuit before returning the unit to the customer. Use the following checks to perform these measurements: A. Leakage Current Hot Check-With the unit completely reassembled, plug the AC line cord directly into a 120V AC outlet. (Do not use an isolation transformer during this test.) Use a leakage current tester or a metering system that complies with American National Standards Institute (ANSI) C101.1 "Leakage Current for Appliances" and Underwriters Laboratories (UL) 6500 / IEC 60056 paragraph 9.1.1. With the unit AC switch first in the ON position and then in OFF position, measure from a known earth ground (metal waterpipe, conduit, etc.) to all ex- posed metal parts of the unit (antennas, handle bracket, metal cabinet, screwheads, metallic overlays, control shafts, etc.), especially any exposed metal parts that offer an electrical return path to the chassis. Any current measured must not exceed 0.5 milliamp. Reverse the unit power cord plug in the outlet and repeat test. ANY MEASUREMENTS NOT WITHIN THE LIMITS SPECIFIED HEREIN INDICATE A POTENTIAL SHOCK HAZARD THAT MUST BE ELIMINATED BEFORE RETURNING THE UNIT TO THE CUSTOMER. B. Insulation Resistance Test Cold Check-(1) Unplug the power supply and connect a jumper wire between the two prongs of the plug. (2) Turn on the power switch of the unit. (3) Measure the resistance with an ohmmeter between the jumpered AC plug and each exposed metallic cabinet part on the unit. When testing 3 wire products, the resistance measured to the product enclosure should be between 2 and infinite MOhms. Also, the resistance measured to exposed input/output connectors should be between 4 and infinite MOhms. When testing 2 wire prod- ucts, the resistance measured to exposed input/output connectors should be between 4 and infinite MOhms. If it is not within the limits specified, there is the possibility of a shock hazard, and the unit must be repaired and rechecked before it is returned to the customer. CAUTION: The Bose ® T1 ToneMatch ® Audio Engine contains no user-serviceable parts. To prevent warranty infractions, refer servicing to warranty service stations or factory service. PROPRIETARY INFORMATION THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION OF BOSE CORPORATION WHICH IS BEING FURNISHED ONLY FOR THE PURPOSE OF SERVICING THE IDENTIFIED BOSE PRODUCT BY AN AUTHORIZED BOSE SERVICE CENTER OR OWNER OF THE BOSE PRODUCT, AND SHALL NOT BE REPRODUCED OR USED FOR ANY OTHER PURPOSE. The Bose T1 ToneMatch Audio Engine is covered by a limited 2-year transferable warranty. Warranty
