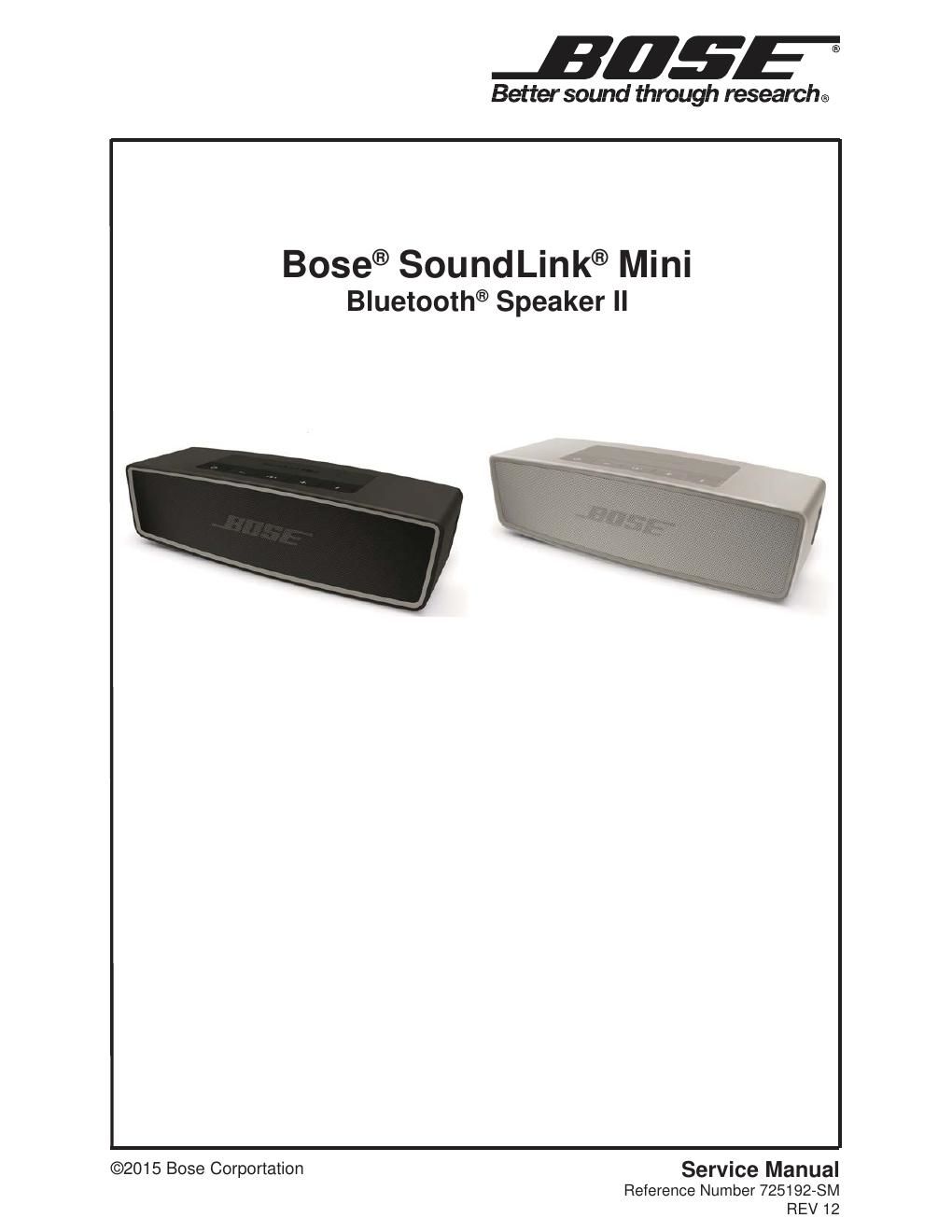

Bose soundlink mini 9364327 1
This is the 35 pages manual for bose soundlink mini 9364327 1.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from bose soundlink mini 9364327 1 (Ocr-read)
Page 1
2 Contents Product Descripton 3 Safety Information 3 Electrostatic Discharge Sensitive (ESDS) Device Handling 4 Warranty 4 Part List Notes 4 Packaging Part List, SoundLink ® Mini II 5 Figure 1. SoundLink Mini II, Packaging View 6 Main Part List, SoundLink Mini II 7 Figure 2. SoundLink Mini II Main Assembly, Exploded View 8 Electrical Parts List 9-20 Disassembly Procedure 21-25 Assembly Key Points 26-29 Using TAP Commands 30 Test Procedures 31-33 Remanufacturing TAP Commands 34 Service Manual Revision History 35
Page 2
3 PRODUCT DESCRIPTON PROPRIETARY INFORMATION THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION OF BOSE CORPORATION WHICH IS BEING FURNISHED ONLY FOR THE PURPOSE OF SERVICING THE IDENTIFIED BOSE PRODUCT BY AN AUTHORIZED BOSE SERVICE CENTER, AND SHALL NOT BE REPRODUCED OR USED FOR ANY OTHER PURPOSE. The Bose ®SoundLink ® Mini Bluetooth ® speaker II is a one-piece, ultra-compact, battery-powered Blue- tooth speaker. It delivers full, deep sound that's unexpected from a mobile speaker that fi ts in the palm of your hand. Its ability to connect wirelessly to Bluetooth enabled audio devices, combined with its size, allows you to enjoy your music, videos or games almost anywhere. Its engineered with a solid aluminum chassis that contributes to the sound while providing the durability to withstand the rigors of everyday use. The included charging cradle provides a home base to keep it charged so its ready and able to go just about anywhere with you. The SoundLink Mini II has a built-in speakerphone, so you can enjoy the same clear sound for out-loud calls. And voice prompts talk you through Bluetooth pairing, so wirelessly con- necting to your music is easier than ever. The SoundLink Mini Bluetooth speaker II uses many proprietary Bose acoustic, mechanical and electrical technologies. Most prominent are two compact transducers specifi cally designed with unusually high cone displacement for exceptional sound output relative to their size. In addition, dual opposing passive radi- ators allow the SoundLink Mini Bluetooth speaker II to deliver high-quality low-note performance from a small enclosure. With the radiators placed symmetrically opposite each other, the SoundLink Mini Blue- tooth speaker II reduces unwanted and wasteful vibration, turning that energy instead into acoustic output. The unique, patented shape of the radiator surrounds also produce performance beyond most competitive products. Together, these technologies allow the SoundLink Mini Bluetooth speaker II to produce surpris- ingly full and deep sound from a speaker that fi ts in the palm of your hand. The speaker also uses voice prompts that walk the user through Bluetooth pairing, so connection management of Bluetooth enabled devices is easier than ever. - Speakerphone feature – including mic - USB charging - New battery charger IC, Rohm BD8665 - Voice prompts – similar to SoundLink Color - No AUX button – relies on AUX sensing - Updated BT processor – 8670 – same as SoundLink Color - Custom battery pack, based on SoundLink Mini Palladium architecture, with 4 conductor ribbon cable to connect to boost board. - Boost circuit – redesigned for Boost-on-Demand feature to save battery life - New external power supply and charging cradle - Mechanical parts – grilles with scrim, new rear grille gasket with mic port, housing fi nish and machining changes, color changes, new keypad and topcap - Two system color schemes
