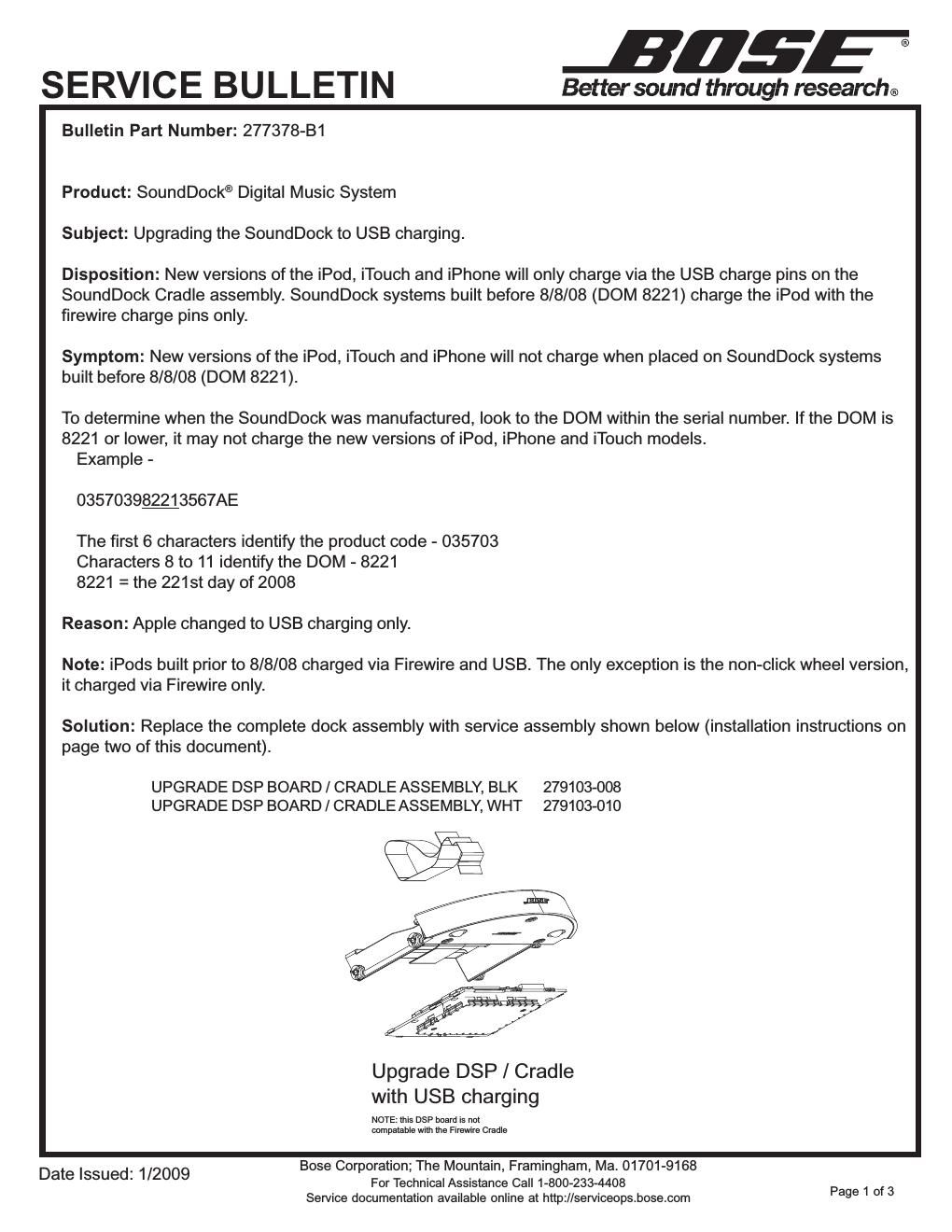

Page 2 of 3 USB UPDATE PROCEDURE USB Upgrade It is possible to upgrade SoundDock ® systems built before 8/08 from Firewire to USB charging by replacing the Dock and DSP boards with the upgraded versions. Use this procedure to up- grade older systems to USB charging. Equipment Required a. DSP board / Cradle Assy - Black - 279103-008 White - 279103-010 b. Phillips-head screw driver c. Bose Logo Black - 277381-002 White - 277381-001 1. Original Dock Removal 1.1 Remove the four Phillips-head screws securing the bottom cradle cover. 1.2 Remove the cable connected to J300. 2. Grille and Amplifier board Removal 2.1 Remove the grille by pushing upward as shown above. 2.2 Remove the four Phillips-head screws securing the amp board to the acoustic enclosure. 3. Install the DSP/Cradle Upgrade Assem- bly 3.2 Connect the flex cable to J300 on the new upgrade assembly and install the cradle along with the amplifier board. 3.3 Install Bose ® logo on the front of the cradle. 3.4Fully test with iPod to confirm the system is operating correctly.
