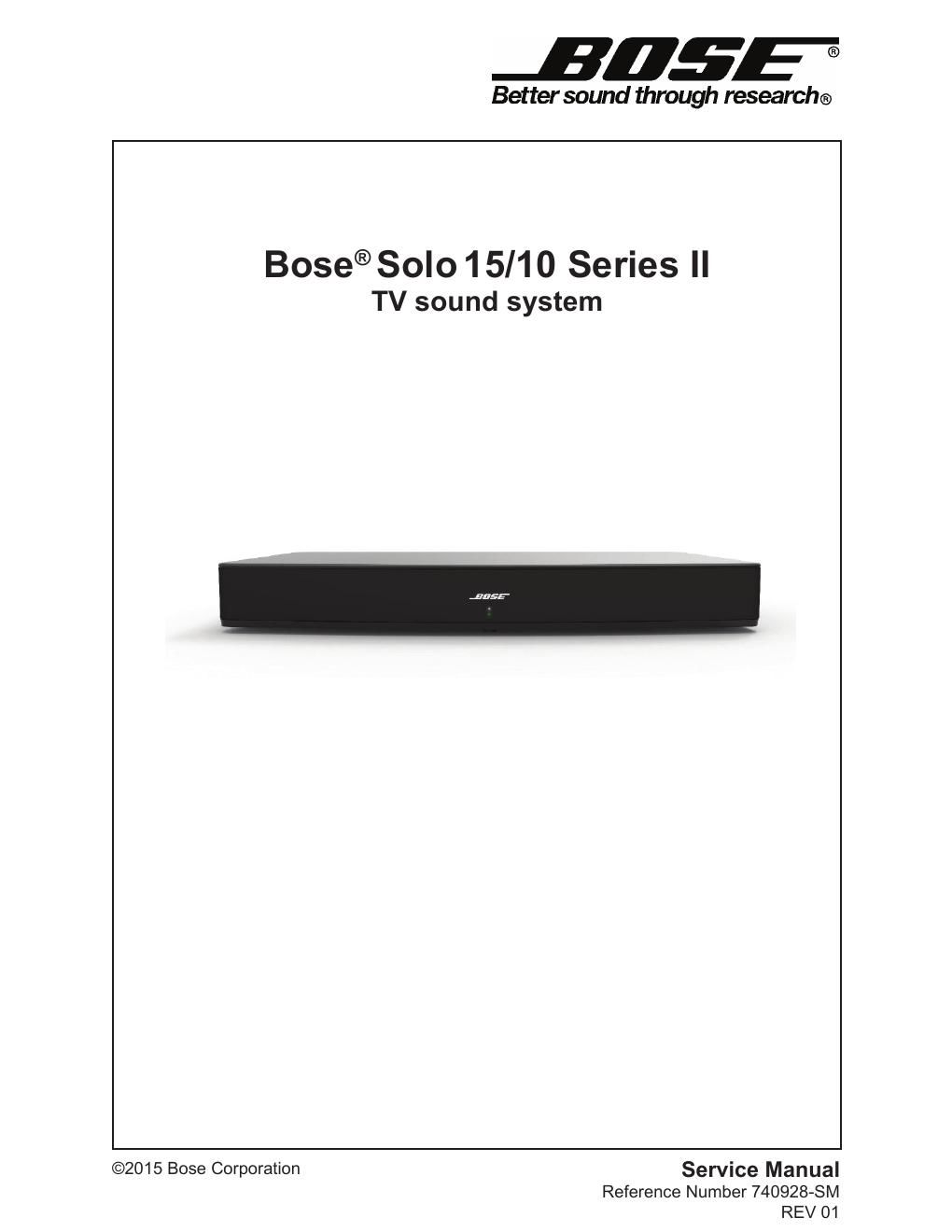

Bose solo 15 solo 10 series ii service manual
This is the 40 pages manual for bose solo 15 solo 10 series ii service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from bose solo 15 solo 10 series ii service manual (Ocr-read)
Page 1
2 Title \ Page PRODUCT DESCRIPTION........................................................................................................................3 SAFETY INFORMATION........................................................................\ ...................................................3 ELECTROSTATIC DISCHARGE SENSITIVE (ESDS) DEVICE HANDLING ..........................................4WARRANTY.........................................................................\ .....................................................................4 PART LIST NOTES .......................................................................\ ...........................................................4 PACKAGING PART LIST ........................................................................\ ..................................................5 Figure 1.Packaging Exploded View ....................................................................\ ......................................6 MAIN ASSEMBLY PART LIST . ........................................................................\ ........................................7 Figure 2. Main Assembly Exploded View ....................................................................\ ..............................8 MAIN PCB PART LIST.........................................................................\ ................................................9-29 IR PCB PART LIST.........................................................................\ .........................................................30 DISASSEMBLY PROCEDURES.........................................................................\ ...............................31-33 TAP COMMAND SETUP........................................................................\ .................................................34 FUNCTIONAL TEST PROCEDURES.................................................................................................35-37 TAP COMMAND........................................................................\ ..............................................................38 SERVICE MANUAL REVISION HISTORY........................................................................\ ......................39 CONTENTS
Page 2
3 SAFETY INFORMATION 1. Parts that have special safety characteristics are identified by the symbol on schematics or by special notes on the parts list. Use only replacement parts that h\ ave critical characteristics recommended by the manufacturer. 2. Refer to the Hi-POT test on page 37 of this service manual. PRODUCT DESCRIPTION Bose ® Solo 15/10 Series II TV sound system is designed to fit under TVs that weigh no more than 75 lbs (34 kg) and have bases no wider than 24 (61 cm), and no deeper t\ han 12.25 (31 cm). Bose Solo 15/10 Series II TV sound system come with built in Bluetooth connectivity for music play\ back from mobile devices. The enclosure contains 5 drivers, which are not shielded, an amplifier/power supply and IR PCB. The Bose Solo 15 has a metal grille and is packaged with a programmable \ universal remote. The Bose Solo 10 has a cloth grille and is packaged with a simple remote\ . PROPRIETARY INFORMATION THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION OF BOSE CORPORATION WHICH IS BEING FURNISHED ONLY FOR THE PURPOSE OF SERVICING THE IDENTIFIED BOSE PRODUCT BY AN AUTHORIZED BOSE SERVICE CENTER, AND SHALL NOT BE REPRODUCED OR USED FOR ANY OTHER PURPOSE. CAUTION: The Bose ® Solo 15/10 Series II TV sound system contains no user-serviceable parts. To prevent warranty infractions, refer servicing to warranty service s\ tations or factory service.
