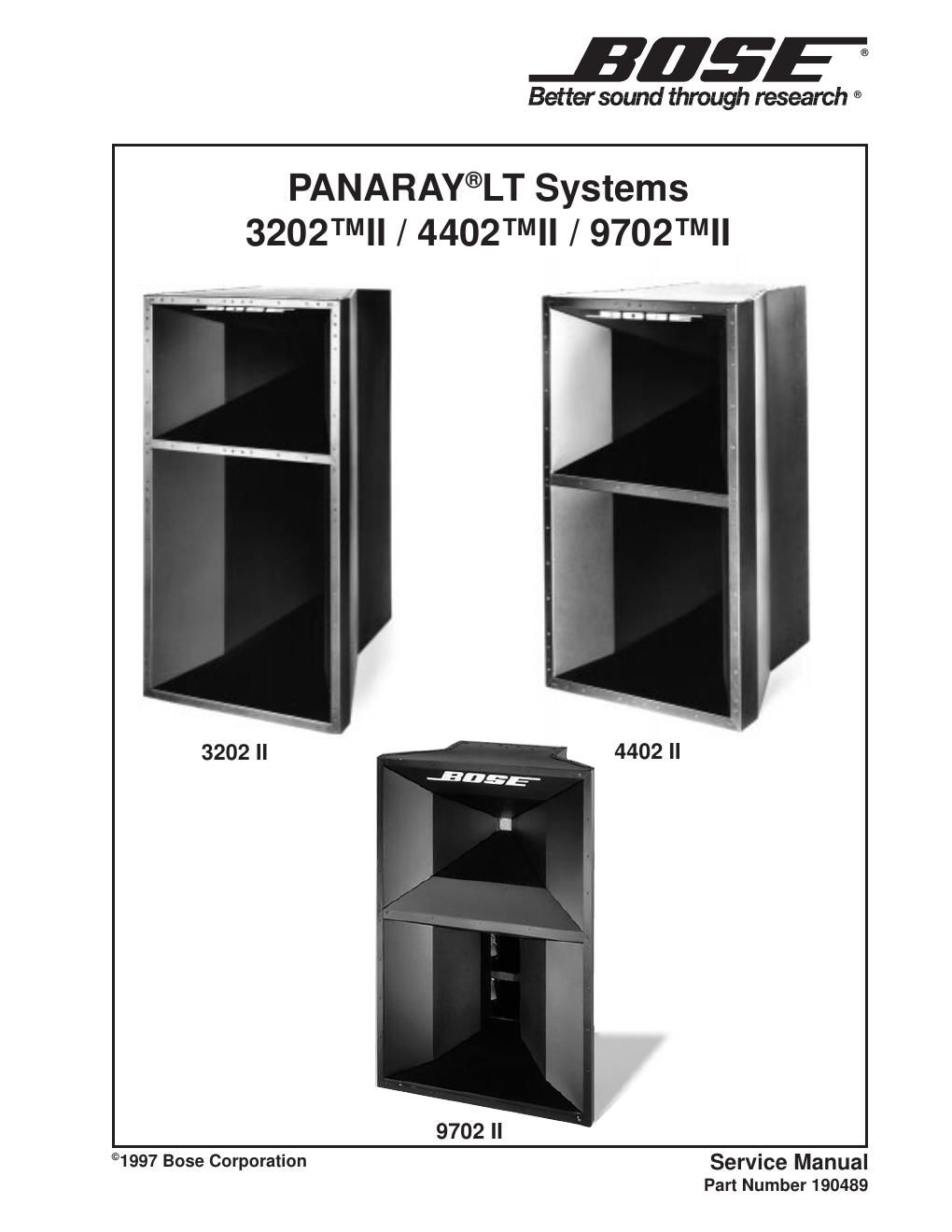

Bose panaray lt3202 ii 4402 ii 9702 ii service manual
This is the 18 pages manual for bose panaray lt3202 ii 4402 ii 9702 ii service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from bose panaray lt3202 ii 4402 ii 9702 ii service manual (Ocr-read)
Page 1
2 PROPRIETARY INFORMATION THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION OF BOSE ¨ CORPORATION WHICH IS BEING FURNISHED ONLY FOR THE PURPOSE OF SERVICING THE IDENTIFIED BOSE PRODUCT BY AN AUTHORIZED BOSE SERVICE CENTER OR OWNER OF THE BOSE PRODUCT, AND SHALL NOT BE REPRODUCED OR USED FOR ANY OTHER PURPOSE. Contents Specifications ............................... 3-8 Figure 1. Panaray ¨ Exploded View ................9 Figure 2. Panaray Series II Exploded View ................9 Disassembly/Assembly Procedures ................ 10-12 Diaphragm Replacement Procedure ................... 13 Test Procedures ............................ 14 Figure 3. Connection Diagram ..........................14 Part List Notes ................................ 15 Figure 4. Panaray Series II Exploded View .....................16 Panaray Lt Series II Part List ............................ 16 Panaray Lt Part List ................................. 17 Figure 5. Panaray Exploded View .............................17 Packing Part List ..................................... 18 Figure 6. Packing ....................................18 CAUTION: THE PANARAY LOUDSPEAKERS CONTAIN NO USER-SERVICEABLE PARTS. TO PREVENT WARRANTY INFRACTIONS, REFER SERVICING TO WARRANTY SERVICE STATIONS OR FACTORY SERVICE.
Page 2
3 SPECIFICATIONS 3202ª II Mechanical Specification Dimensions: 42"H x 22.2"W front/ 12.2"W x 37.2"D rear106.7 x 56.4cm 30.9 x 94.5cm Weight: 106lb48kg Components: One High-frequency Compression Driver Two Mid-range Driverst1.4hp Vee Four Mid-range Driver Assembly Frequency Range:160Hz to 16kHz (± 3dB) Crossover frequency 2kHz Nominal Impedance: Passive 2-Way Bi-amplified Mid-frequency High-frequency16W 16W 8W Maximum Acoustic Output: (IEC Noise) Passive 2-Way 134dB SPL, 1m (rms) 140dB SPL, 1m (peak) Bi-amplified 134dB SPL, 1m (rms) 140dB SPL, 1m (peak) Sensitivity: (Pink Noise) Passive 2-Way Bi-amplified Mid-frequency High-frequency110dB-SPL, 1w, 1m 107dB SPL, 1w, 1m 111dB SPL, 1w, 1m Beamwidth (-6dB point): Horizontal Vertical27 degrees 20 degrees Maximum Recommended Amplifier Power: Passive 2-Way Bi-amplified Mid-frequency High-frequency1200W into 16W 1200W into 16W 150W into 8W
