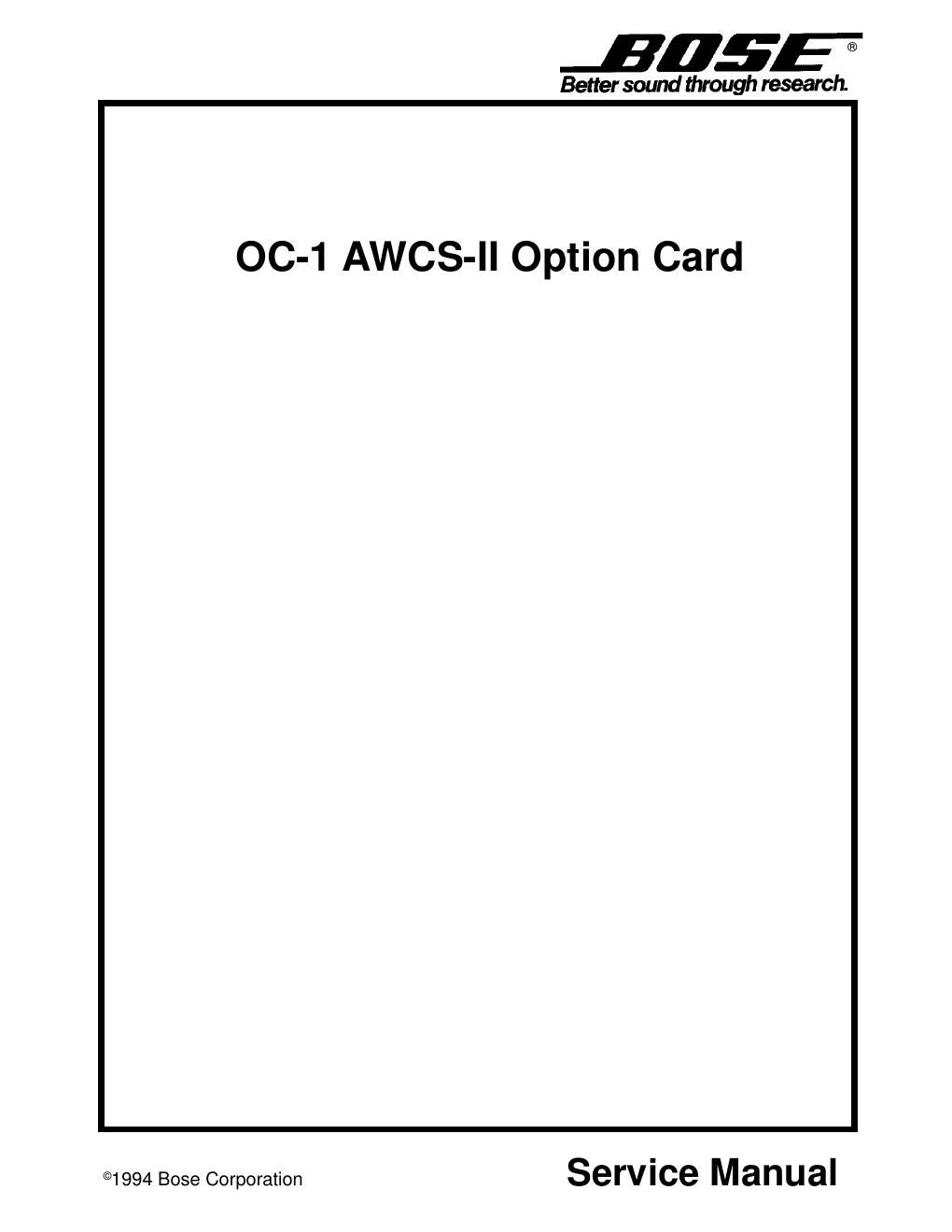

Bose oc 1 service manual
This is the 22 pages manual for bose oc 1 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from bose oc 1 service manual (Ocr-read)
Page 1
1 TABLE OF CONTENTS 1. SPECIFICATIONS........................... 2 2. THEORY OF OPERATION................ 3 3. EQ CURVES...................... 5 4. BLOCK DIAGRAM................... 8 5. INSTALLATION INSTRUCTIONS............... 9 6. TEST PROCEDURES...................... 12 7. PARTS LIST ......................... CAUTION: THE OC-1 OPTION CARD CONTAINS NO USER SER- VICEABLE PARTS. TO PREVENT WARRANTY INFRACTIONS, REFER SERVICING TO WARRANTY SERVICE STATIONS OR FACTORY SERVICE. PROPRIETARY INFORMATION THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION OF BOSE ¨ CORPORATION WHICH IS BEING FURNISHED ONLY FOR THE PURPOSE OF SERVICING THE IDENTIFIED BOSE PRODUCT BY AN AUTHORIZED BOSE SERVICE CENTER OR OWNER OF THE BOSE PRODUCT, AND SHALL NOT BE REPRODUCED OR USED FOR ANY OTHER PURPOSE. 16
Page 2
OC-1 SPECIFICATIONS Dimensions:.63" Hx1.29"Wx8.98"D(1.6x3.3x22.8 cm) Weight: .09 lbs. (.042 kg.) Input/Output:2 audio inputs,Channel 1 and 2 high frequency outputs, bass channnel output Input Impedance: 482 kW (nominal) (feedback input) Output Level: 5.0 Vrms into 10 kW Crossover Frequency: 125 Hz,Roll-off slope: 24 dB/oct. Output Noise: £ 40mV (A-weighted) Channel Separation:50 dB (min.) @ 5 kHz 2
