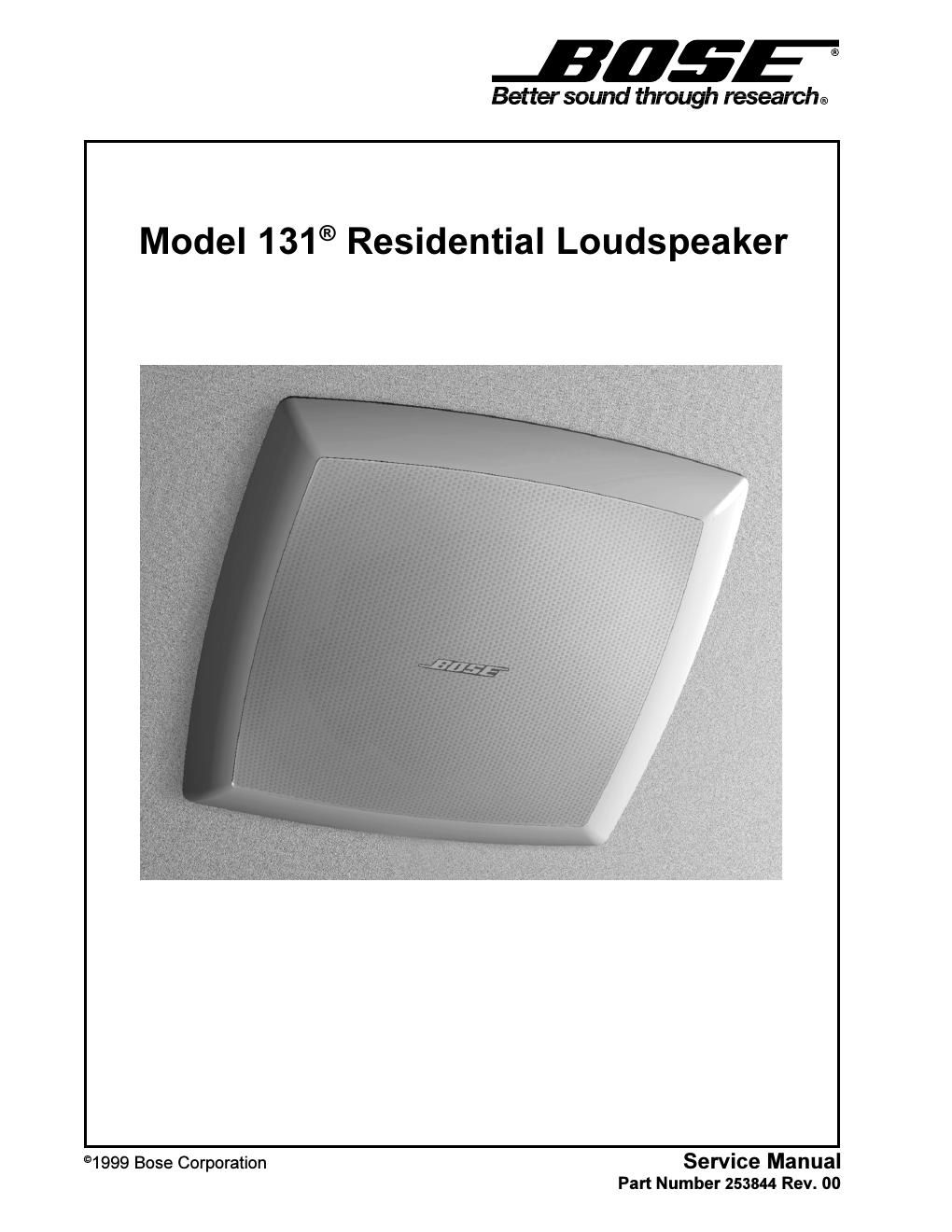

Page 1
JEEP
Better sound through researchs.
Service Manual
Part Number 253844 Rev. 00
Model 131® Residential Loudspeaker
@1999 Bose Corporation
Page 2
CONTENTS
Specifications .................................................................................................................................... 2
Product Description
Warranty Information .......................
DisassemblylAssembly Procedures .. ..3
Figure 1. Exploded View ................................................................................................................... 3
Test Procedures ............................................................................................................................... 4
Part List ............................................................................. ..5
Figure 2. Residential 131® Loudspeaker Exploded and Packing Views ............................................ 5
CAUTION: The Bose® Residential 131 Loudspeaker contains no
user-serviceable parts. To prevent warranty infractions, refer
servicing to warranty service stations or factory service.
PROPRIETARY INFORMATION
THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION OF
BOSE® CORPORATION WHICH IS BEING FURNISHED ONLY FOR
THE PURPOSE OF SERVICING THE IDENTIFIED BOSE PRODUCT
BY AN AUTHORIZED BOSE SERVICE CENTER OR OWNER OF THE
BOSE PRODUCT, AND SHALL NOT BE REPRODUCED OR USED
FOR ANY OTHER PURPOSE.
