Bose l1 compact system theory of operation
This is the 19 pages manual for bose l1 compact system theory of operation.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from bose l1 compact system theory of operation (Ocr-read)

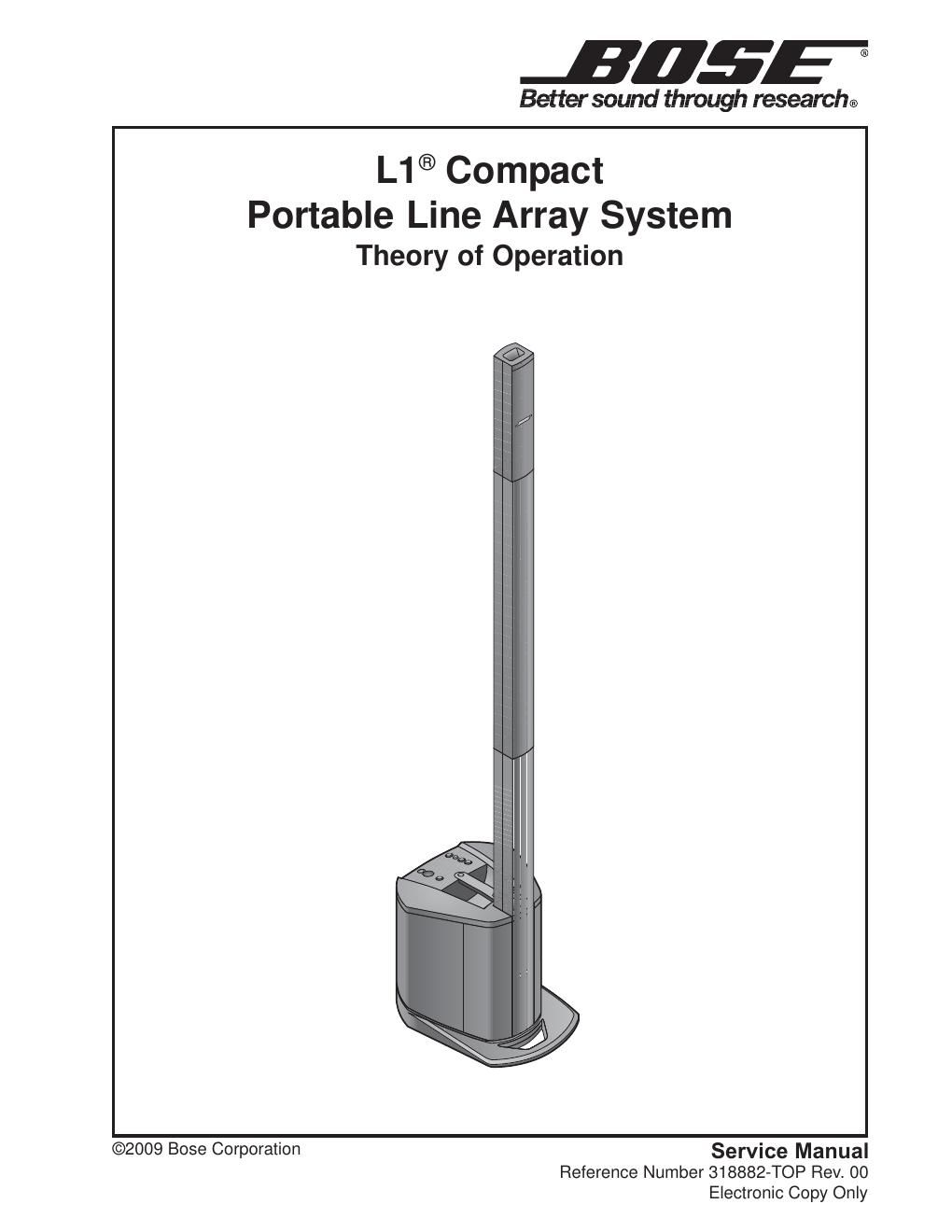

Page 1
2 General This document refers to schematic revision 01 for both the I/O Board and PS & Amp board. The L1 ® Compact comprises a Power Stand base unit that houses input and output connectors and all electronics, a removable Twiddler TM Array, and two extension sections used to raise the Twiddler Array to ear level when standing. The electronics in the base are on two circuit boards: an I/O Board directly beneath the top cover, and the PS & Amp Board which is mounted vertically on the back wall of the enclosure. I/O Connectors - AC mains input- IEC connector XRL Microphone Input Jack 1/8" Stereo Input Jack Two RCA Input Jacks ¼ Balanced Input Jack ¼ Line Out Jack Two RCA Line Out Jacks Controls - Power Switch - Switches the system on and off Mic Volume - Adjusts the Audio Output Level from the Microphone Input Mic Treble - Adjusts the Treble for the Microphone Audio Output Mic Bass - Adjusts the Bass for the Microphone Audio Output Channel 2 Volume - Adjusts the Audio Output Level from the Channel 2 Inputs: - 1/8" Jack, RCA Jacks, or ¼ Jack. Indicators Power Indicator - Indicates power status: Blue = system on. Signal/Clip Indicator - Ch1 (Mic) and Ch2 - Indicates the level of the Audio Output: - Green = Normal. Red = Over Maximum Audio Level. Power Supply The L1 Compact Power supply is a Flyback switching supply based on Power Integrations TOP258 which provides Under voltage, Over voltage, and Thermal Protection internally. This produces four regulated DC Power Rails from the secondary: +28V and -28V for the ampli- fier (Philips / NXP TDA8920BTH) and +18V and -18V which are provided to the I/O board over the 10 pin ribbon cable. These +/-18V rails are post regulated on the I/O board to +/-15V by U315 & U316. Diagrams – Pages 3 to 6 L1 Compact Block Diagram L1 Compact PCB Layout L1 Compact I/O Board L1 Compact Channel 1 Input Section L1 Compact Channel 2 Input Section L1 Compact - Theory of Operation
Page 2
3 L1 Compact Power Stand Block Diagram L1 Compact - Theory of Operation
