Bose knex main 270593 rev 00
This is the 17 pages manual for bose knex main 270593 rev 00.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from bose knex main 270593 rev 00 (Ocr-read)
Page 1

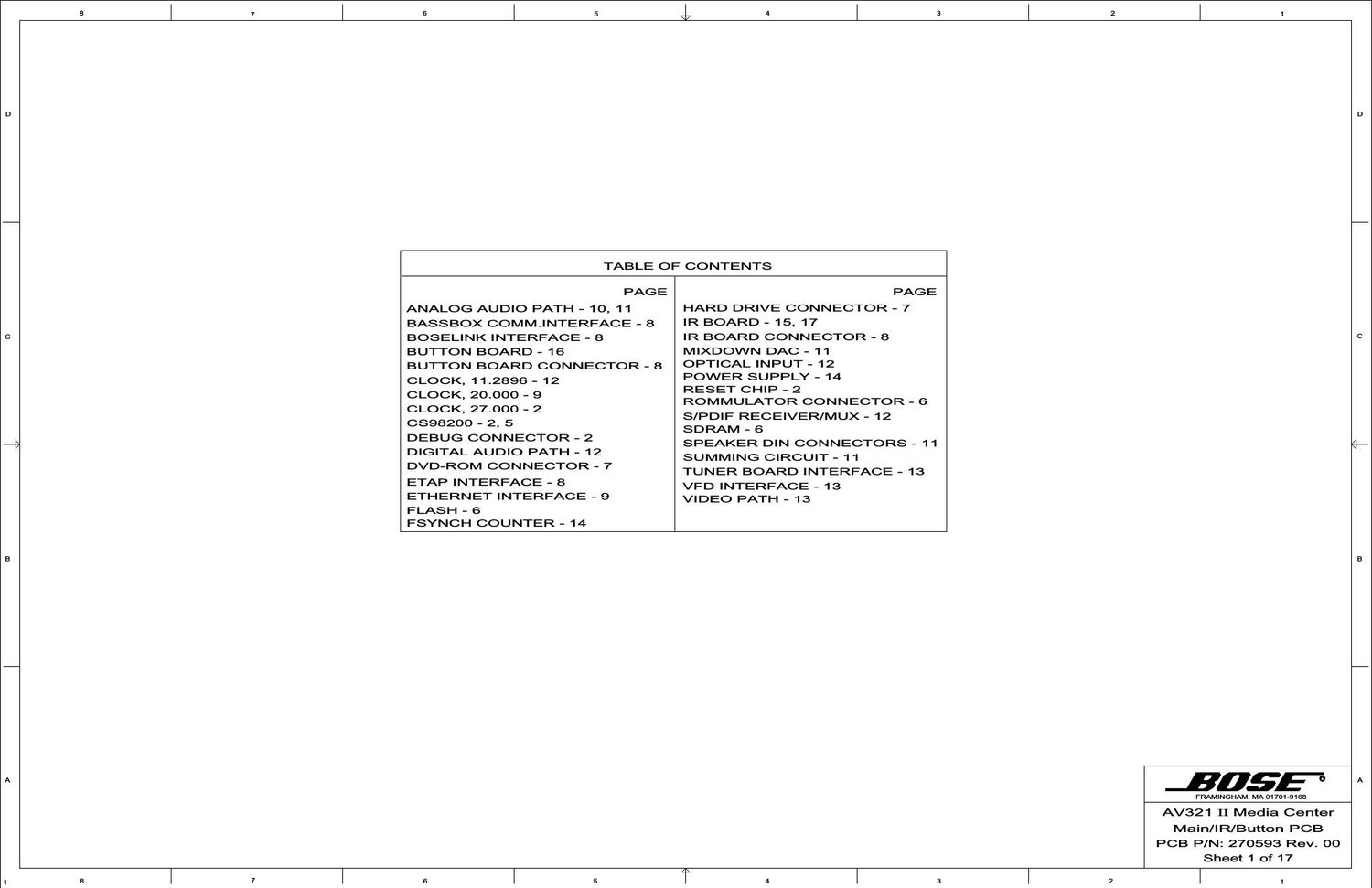

TABLE OF CONTENTS
PAG E
ANALOG AUDIO PATH - 10, 11
BASSBOX COMMJNTERFACE - 8
BOSELINK INTERFACE - 8
BUTTON BOARD - 16
BUTTON BOARD CONNECTOR - 8
CLOCK, 1 1 .2896 - 12
CLOCK, 20.000 - 9
CLOCK, 27.000 - 2
C8982OO - 2, 5
DEBUG CONNECTOR - 2
DIGITAL AUDIO PATH - 12
DVD-ROM CONNECTOR - 7
ETAP INTERFACE - 8
ETHERNET INTERFACE - 9
FLASH - 6
FSYNCH COUNTER - 14
PAG E
HARD DRIVE CONNECTOR - 7
IR BOARD - 15, 17
IR BOARD CONNECTOR - 8
MIXDOWN DAC - 1 1
OPTICAL INPUT - 12
POWER SUPPLY - 14
RESET CHIP - 2
ROMMULATOR CONNECTOR - 6
S/PDIF RECEIVER/MUX - 12
SDRAM - 6
SPEAKER DIN CONNECTORS - 1 1
SUMMING CIRCUIT - 1 1
TUNER BOARD INTERFACE - 13
VFD INTERFACE - 13
VIDEO PATH - 13
JUSE
FRAMINGHAM. MA 01701 -9168
AV321 11 Media Center
Main/lR/Button PCB
PCB P/N: 270593 Rev. 00
Sheet 1 of 17
