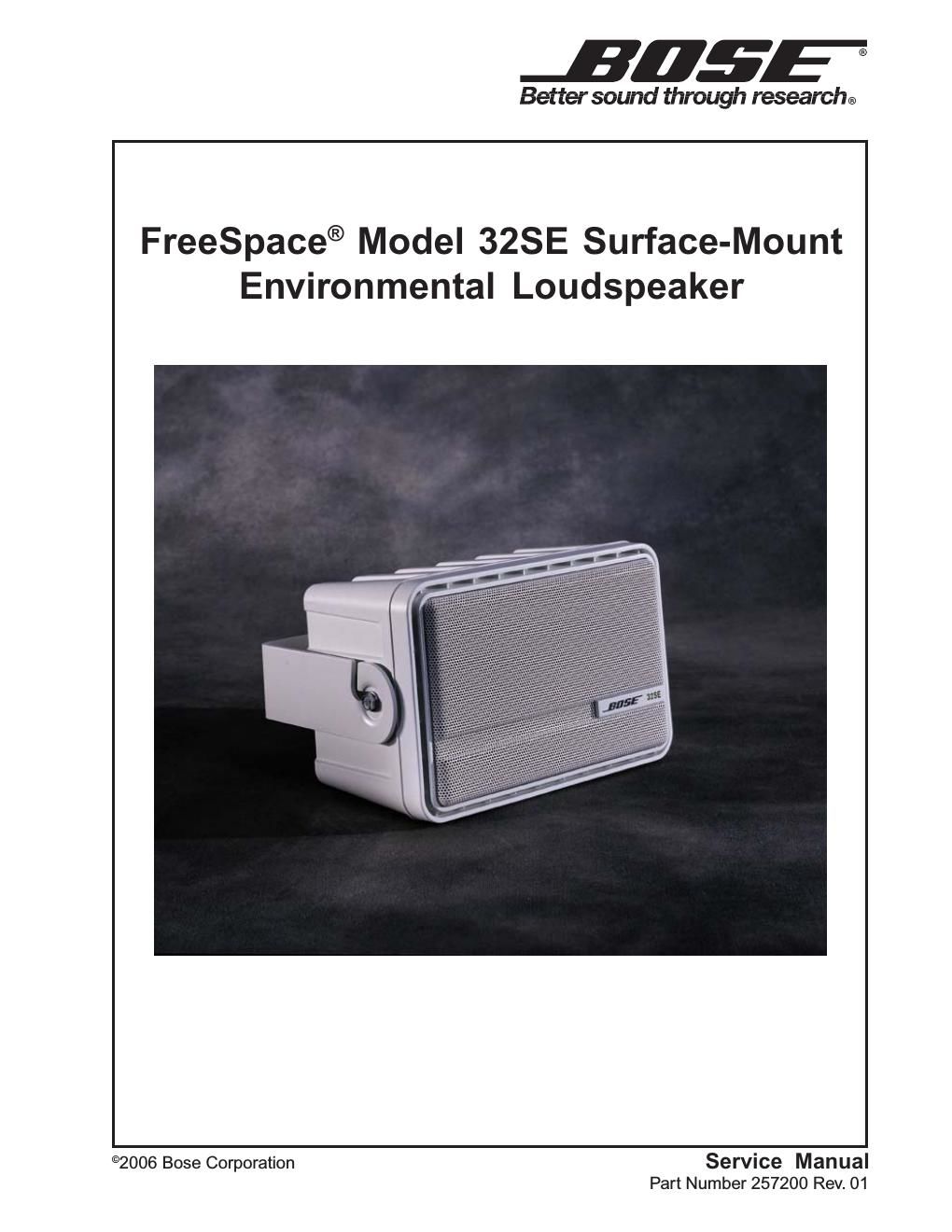

Bose freespace bose model 32se surface mount environmental loudspeaker r1
This is the 12 pages manual for bose freespace bose model 32se surface mount environmental loudspeaker r1.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from bose freespace bose model 32se surface mount environmental loudspeaker r1 (Ocr-read)
Page 1
2 PROPRIETARY INFORMATION THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION OF BOSE CORPORATION WHICH IS BEING FURNISHED ONLY FOR THE PURPOSE OF SERVICING THE IDENTIFIED BOSE PRODUCT BY AN AUTHORIZED BOSE SERVICE CENTER OR OWNER OF THE BOSE PRODUCT, AND SHALL NOT BE REPRODUCED OR USED FOR ANY OTHER PURPOSE.CAUTION: The Bose ® Model 32SE loudspeaker contains no user-serviceable parts. To prevent warranty infractions, refer servicing to warranty service stations or factory service. CONTENTS WARRANTY The Bose Model 32SE Loudspeaker is covered by a five-year limited warranty. Warranty ............................................................................................................................................. 2 Specifications.................................................................................................................................... 3 Product Description ......................................................................................................................... 3 Disassembly/Assembly Procedures ........................................................................................... 4-5 Test Procedures ................................................................................................................................ 6 Figure 1. Model 32SE Passive Crossover Schematic Diagram .......................................................6 Main Part List, Model 32SE Loudspeaker (see Figures 2 and 3) ................................................... 7 Figure 2. Model 32SE Loudspeaker Exploded View (70/100V Variation) ..........................................7 Figure 3. Model 32SE Loudpeaker Exploded View (Passive Variation) ............................................8 Electrical Part List, Crossover Assembly, Passive Variation (see Figure 4) ................................ 9 Figure 4. Model 32SE Loudpeaker Passive Variation Crossover Assembly .....................................9 Packaging Part List, Model 32SE Loudspeaker (see Figure 5) ................................................... 10 Figure 5. Model 32SE Loudspeaker Packaging View .....................................................................10
Page 2
3 SPECIFICATIONS PRODUCT DESCRIPTION External Dimensions:Single Speaker: 9.12" x 6" x 5.6" (23 cm x 15 cm x 14 cm) Packed System: 7.3" x 14.2" x 10.3" (18.5 cm x 36.1 cm x 26.2 cm) Weight:Single Speaker: 5.0 lb (2.3 kg) Packed System: 11.0 lb (5 kg) Transducer Complement:One 4.5" environmental driver per loudspeaker Internal Cabinet Volume:180 cu in (2.94 liters) Does not include 0.25 liter displaced by mounted driver Por t:Description: (2) oval ports located on one side of the driver Total Port Area: 0.97 sq in (6.3 sq cm) Port Length: 3.5 in (8.9 cm) Resonance Frequency:80 Hz Impedance:70 V Units: 130 Ohms @ 70 V, 32 W from 70 Hz - 15 kHz 100 V Units: 250 Ohms @ 100 V, 32 W from 70 Hz - 15 kHz Passive Units: 4 Ohms Power Handling:32 W (VRMS) continuous per IEC 268-5 for duration of 100 hours Sensitivity:87 dB-SPL, 1 W, 1 m (speech) 85 dB-SPL, 1 W, 1 m (music) The Model 32SE loudspeaker is an environmental version of the Pro Model 25 surface mount loudspeaker. It meets the European requirements for loudspeakers used in fire and evacuation applications in dry, damp and wet environments, as well as meeting the new UL1480 require- ments for fire and evacuation / voice warning systems in wet environments. Three variations of the Model 32SE loudspeaker are available, 70V/32W, 100V/32W and 4 Ohms passive. The Model 32SE loudspeaker uses one, 1.2 Ohm, 4.5" environmental driver per enclosure. It also uses a metal grille similar to the Model 25. On the 70 and 100V variations, the input connection interface is the Model 32 transformer, internally mounted in the enclosure. The access to the transformer is covered by an aluminum plate with an installed gasket on the rear of the enclosure to ensure the terminals are "touchproof" once the loudspeaker is installed and to seal out water. The packed system consists of two loudspeakers, hardware, brackets, an owner's manual and packaging. The speaker housing color is arctic white or black.
