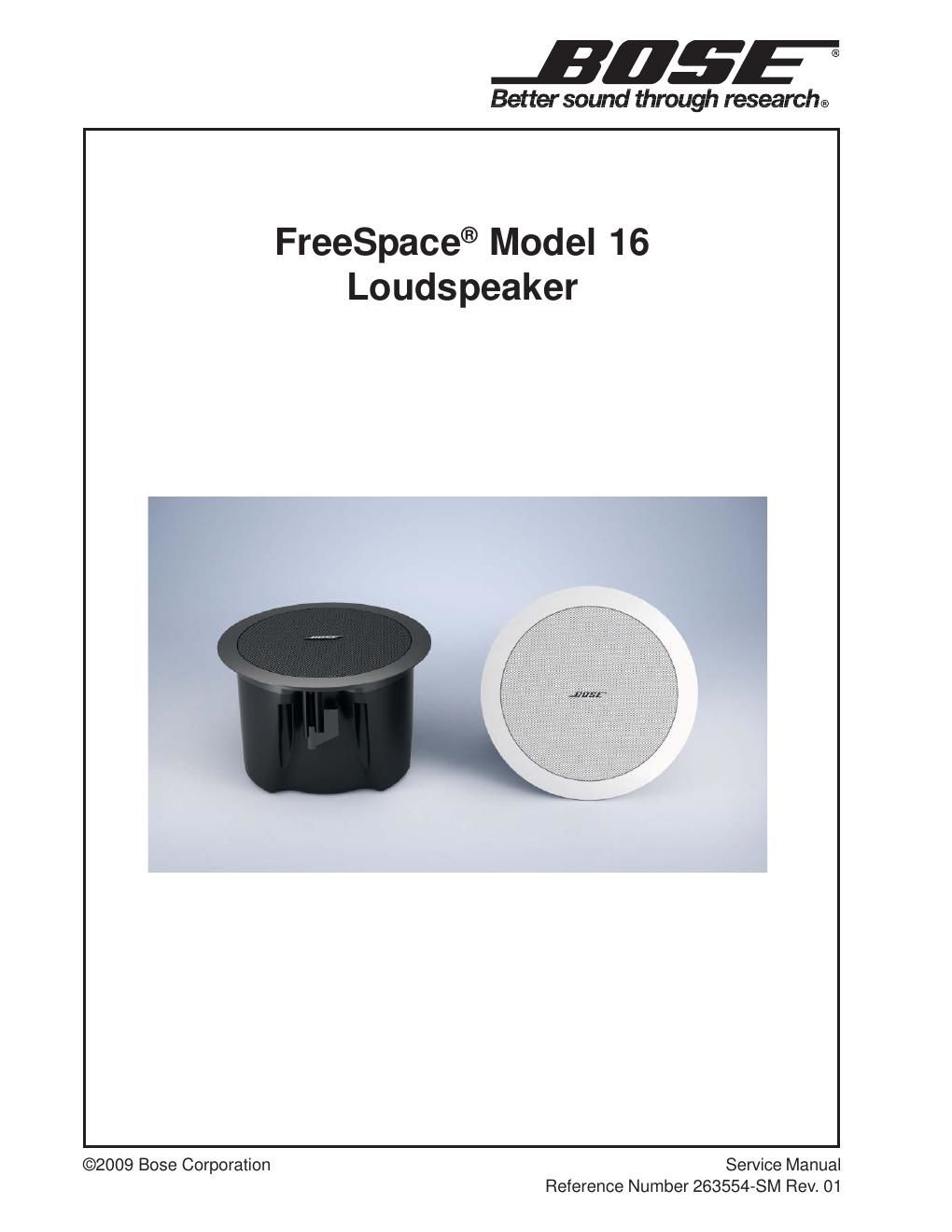

Page 1
1 CONTENTS Warranty Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Product Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Disassembly/Assembly Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Test Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Figure 1. Free Space ®Model 16 Loudspeaker Test Setup Diagram . . . . . . . . . . . . . . . . 4 Main Part List, Free Space Model 16 Loudspeaker . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Figure 2. Free Space Model 16 Loudspeaker Exploded View . . . . . . . . . . . . . . . . . . . . 5 Packing List, Free Space Model 16 Loudspeaker . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Figure 3. Free Space Model 16 Loudspeaker Packing View . . . . . . . . . . . . . . . . . . . . . 6 CAUTION:The Bose ®Free Space Model 16 Loudspeaker contains no user serviceable parts. To prevent warranty infractions, refer servicing to warranty service centers or factory service. PROPRIETARY INFORMATION THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION OF BOSE CORPORATION WHICH IS BEING FURNISHED ONLY FOR THE PURPOSE OF SERVICING THE IDENTIFIED BOSE PRODUCT BY AN AUTHORIZED BOSE SERVICING CENTER OR OWNER OF THE BOSE PRODUCT, AND SHALL NOT BE REPRODUCED OR USED FOR ANY OTHER PURPOSE. WARRANTY INFORMATION The Bose Free Space Model 16 Loudspeaker is covered by a 5-year transferable limited warranty.
Page 2
2 SPECIFICATIONS External Dimensions: 9.5 in. x 6.3 in. (240mm Diameter x 160mm Depth) Weight: Unpacked System: 5.5 lb. (2.5 kg) Packed System: 6.6 lb. (3 kg) Sensitivity: 84 dBSPL, 80Hz ~ 16kHz (1W, 1m Free Space) Impedance: 8 ohms nominal, 6.5 ohms minimum Power Handling: 16 Watts continuous per IEC-268-5, 96 hours. Recommended amplifier/ Max 16 Watts. Filter: 24db/oct Butterworth, Hi-pass 80Hz Lo-pass 16kHz, PRODUCT DESCRIPTION The Bose ®Free Space ®Model 16 Loudspeaker is a passive flush-mount ceiling speaker with two variants, Model 16 and Model 16EU. The Model 16 is a world wide, general-pur- pose use 8Ω/70V/100V speaker that complies with the requirements for Fire/Emergency warning devices in the US. The Model 16EU is a version that includes accessories allowing the loudspeaker to be used as a Fire/Emergency warning device in the UK.
