Bose freespace 360p 263872 service manual rev02
This is the 7 pages manual for bose freespace 360p 263872 service manual rev02.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from bose freespace 360p 263872 service manual rev02 (Ocr-read)

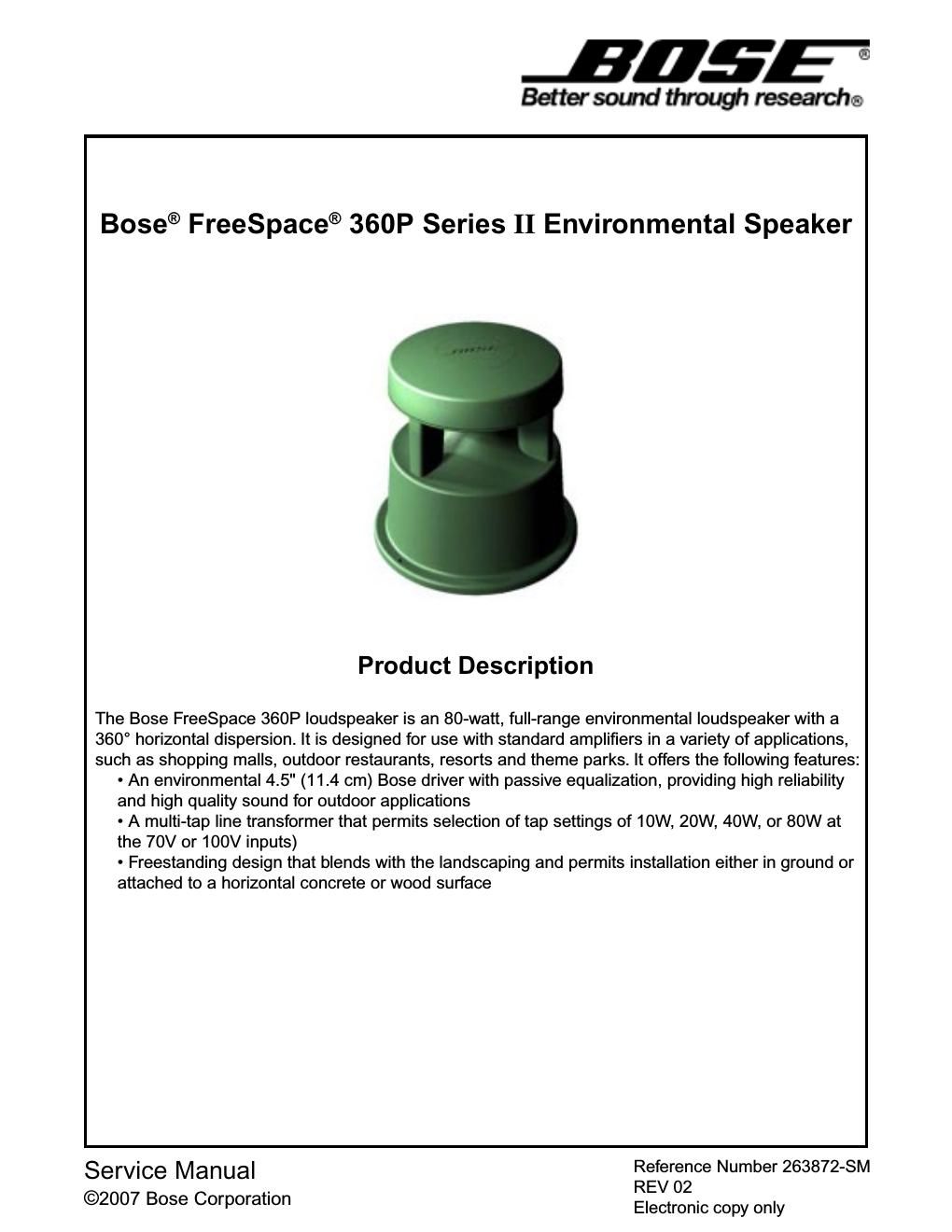

Page 1
1FS360P II Environmental Loudspeaker Warranty The Bose ® FreeSpace ® 360P Series II loudspeaker is covered by a 5-year, transferable limited war- ranty Caution: The FreeSpace loudspeaker contains no user serviceable parts. To prevent warranty infrac- tions, refer servicing to warranty service centers or factory service. Proprietary Information THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION OF BOSE CORPORATION WHICH IS BEING FURNISHED ONLY FOR THE PURPOSE OF SERVICING THE IDENTIFIED BOSE PRODUCT BY AN AUTHORIZED BOSE SERVICE CENTER OR OWNER OF THE BOSE PRODUCT, AND SHALL NOT BE REPRODUCED OR USED FOR ANY OTHER PURPOSE. Specifications Frequency Range: 70Hz to15kHz (±3dB) FreeSpace © 360P versions: 70V/100V (10W, 20W, 40W, 80W taps) Sensitivity: 87dB-SPL @ 1W, 1m (pink noise) Maximum Acoustic Output: 100dB-SPL @ 1m (pink noise) Dispersion (–6dB point, average,1-4kHz): 360° horizontal; 50° vertical Long-Term Power Handling: 40W continuous, 80W peak Mechanical Specifications: Dimensions: 14.5" (36.83 cm) base diameter; 14.9" (37.85 cm) height Weight: 14.5 lb (16.58 kg) Input Connections: External multi-wire cable with wire nuts included Enclosure Construction: Glass reinforced polypropylene Mounting Points: Three (3) #10 (M4) holes in base Contents Specifications ........................................................................\ ......................................... ................. 1 Assembly Part List ........................................................................\ ..................................... ............. 2 Packaging Part List - Pair ........................................................................\ ............................. .......... 2 Figure 1. Assembly and Packaging View ........................................................................\ .................. .2 Disassembly Procedures ........................................................................\ ................................. ....... 3 Figure 2. Schematic Diagram ........................................................................\ ............................ ........4 Test Procedures ........................................................................\ ........................................ .............. 4
Page 2
2FS360P II Environmental Loudspeaker Assembly Part List Packaging Part List - Pair Note: 1. The crossover PCB is located in the top of the unit and is not accessib\ le for repair or replacement. 2. The transformer is located in the base of the unit and is not accessibl\ e for repair or replacment. Figure 1. Assembly and Packaging View 6 2 5 4 1 8 9 10 12 7 11 3 Item Number Description Part Number Qty Note 8 CARTON, REG SLOTTED 270555 1 9 OWNERS GUIDE 263873 1 10 CONNECTOR, WIRENUT, 16-22AWG 188199-001 8 11 BAG, POLY, ZIP LOCK, 2 MIL, 3X5" 260556-0305 1 4 12 BAG, POLY, 13X33.5X11.5X3 137847 2 4 Item Number Description Part Number Qty Note 1 DRIVER ASSY, 4.5", ENV 289807-001 1 2 GASKET, STRIP, 2.0X5.0X340.0, PSA 291132-340 1 3 DIFFUSER, FS-51 268607 1 4 PROTECTOR, DRIVER, TRANSIT, 4.5 120003 1 5 LOGO CAP, GREEN 268601-1 1 6 SCREW, TF, 8-11X1.25, HEXW HD 296497-020 3 4 7 SCREW, TAPP, 8-11X.5, PAN, XREC/SQ 296495-008 3 4
