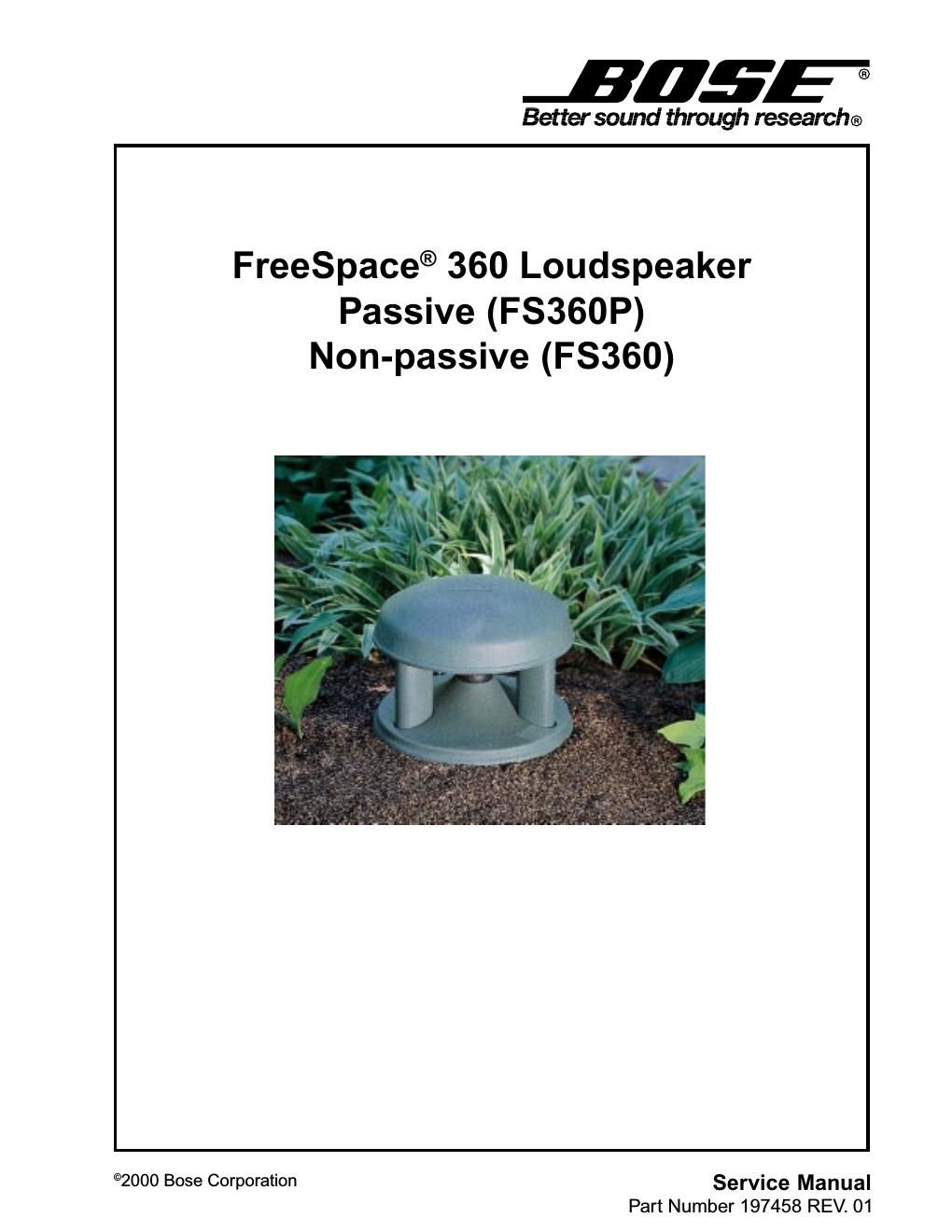

Bose freespace 360 loudspeaker
This is the 9 pages manual for bose freespace 360 loudspeaker.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from bose freespace 360 loudspeaker (Ocr-read)
Page 1
1 CAUTION: The FreeSpace ® 3 6 0 P / 3 6 0 l o u d s p e a k e r c o n t a i n s n o user serviceable parts. To prevent warranty infractions, refer servicing to warranty service centers or factory service. PROPRIETARY INFORMATION THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION OF BOSE CORPORATION WHICH IS BEING FURNISHED ONLY FOR THE PURPOSE OF SERVICING THE IDENTIFIED BOSE PRODUCT BY AN AUTHORIZED BOSE SERVICE CEN- TER OR OWNER OF THE BOSE PRODUCT, AND SHALL NOT BE REPRODUCED OR USED FOR ANY OTHER PURPOSE. WARRANTY INFORMATION The FreeSpace 360P/360 loudspeaker is covered by a 5 year warranty Contents Product Description ............................................................................................................ .............. 2 Specifications ................................................................................................................. ................... 2 Disassembly/Assembly Procedures ................................................................................................ 3 Figure 1. Wiring Diagram ....................................................................................................... .............. 3 Te s t P r o c e d u r e s . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ................ 4 Figure 2. 4 Ohm Passive Version Equalizer Schematic Diagram ........................................................ 4 Figure 3. 70/100V Passive Version Equalizer Schematic Diagram ...................................................... 4 Main Part List ................................................................................................................. .................... 5 Figure 4. Exploded View ........................................................................................................ .............. 6 Equalizer PCB Part List ........................................................................................................ ............ 7 Packaging Part List ............................................................................................................ ............... 7 Figure 5. Packaging View ....................................................................................................... ............. 7 Figure 7. Equalizer PCB Component Layout ....................................................................................... 7 Figure 6. Position of EQ PCB on Driver ......................................................................................... ...... 7
Page 2
2 SPECIFICATIONS PRODUCT DESCRIPTION The FreeSpace ® 360P/360 is a full-range environmental loudspeaker intended for background music and paging. There are three versions. The FS360P 70V/100V, 25W version has an internal passive equalizer. The FS360P 4 Ohm, 25W version has an internal passive equalizer. The FS360 70V/100V, 25W version requires a Bose ® FS360 active equalizer to be connected to or located in the amplifier. The FreeSpace 360P/360 can be installed in-ground with approximately one-half of the speaker exposed above ground. It can also be permanently secured above ground on a horizontal surface such as a deck. External dimensions: 13.80" base diameter x 14.6" height (320 mm base diameter x 370 mm height) Weight (packed system): 12.0 lbs. (5.4 kg) Internal cabinet volume: Top enclosure: 142 cubic inches (2.3 liters) Bottom enclosure: 659 cubic inches (10.8 liters) Port: Diffuser port: Tuned to 80 Hz Three connecting ports: Tuned to 180 Hz Impedance (nominal): Non-passive version: 214 Ohm, 70V transformer @ 25W 271 Ohm, 100V transformer @ 25W Passive version: 414 Ohm, 70V transformer @ 25W 852 Ohm, 100V transformer @ 25W Non-transformer version: 4 Ohms Power Handling: 25W (70V, 100V) continuous per IEC-268-5, 100 hour duration Sensitivity (1W, 1M): 80 dB SPL, free field, per IEC-268-5 (for octave-band centered at 400 Hz)
