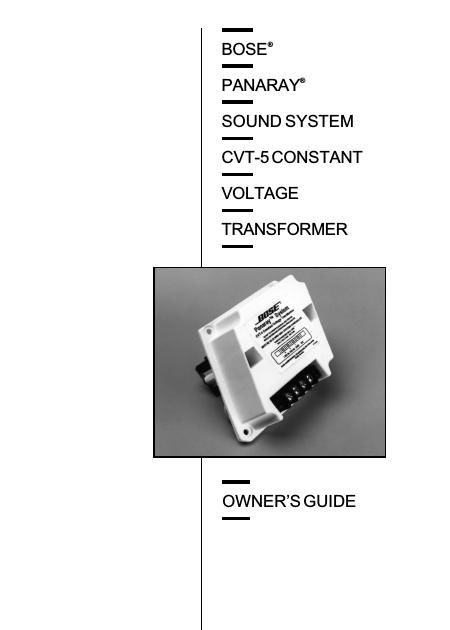

Page 1
2 Contents CVT-5 Constant Voltage Transformer For The Panaray ® 502 ®A Controlled Array............................... 3 Before You Begin…............................................................ 3 Attaching the CVT-5 Transformer To The 502A Array.............................................................. 4 Electrical Connections........................................................ 9 Note On Painting............................................................... 11 Note On Replacement Parts................................................ 11 For Information.................................................................. 12
Page 2
3 CVT-5 Constant Voltage Transformer For The Panaray ® 502 ®A Controlled Array Thank you for purchasing the Bose ® CVT-5 Constant Voltage Transformer for the Panaray 502A Controlled Array. The CVT-5 is an integral, factory- designed 70/100V transformer engineered for quick installation on the 502A array. The transformer handles up to 150W of power (in four different taps) to accommodate a variety of distributed voice-only application requirements. The compact, custom molded enclosure of the CVT-5 attaches flush to the rear of the 502A array. This provides an aesthetic advantage and a good fit when you use the CVT-5 transformer in conjunction with Bose Panaray mounting accessories. Before You Begin… The transformers symmetrical housing allows you to attach the CVT-5 with its speaker terminals pointing away from or toward the 502A arrays four rear attachment points (Figure 1). Before making the attachment, consider which orientation requires the least speaker cable. That may help you decide the orientation you prefer. Blue (75W) Green (38W) White (19W) Black (–) Figure 1
