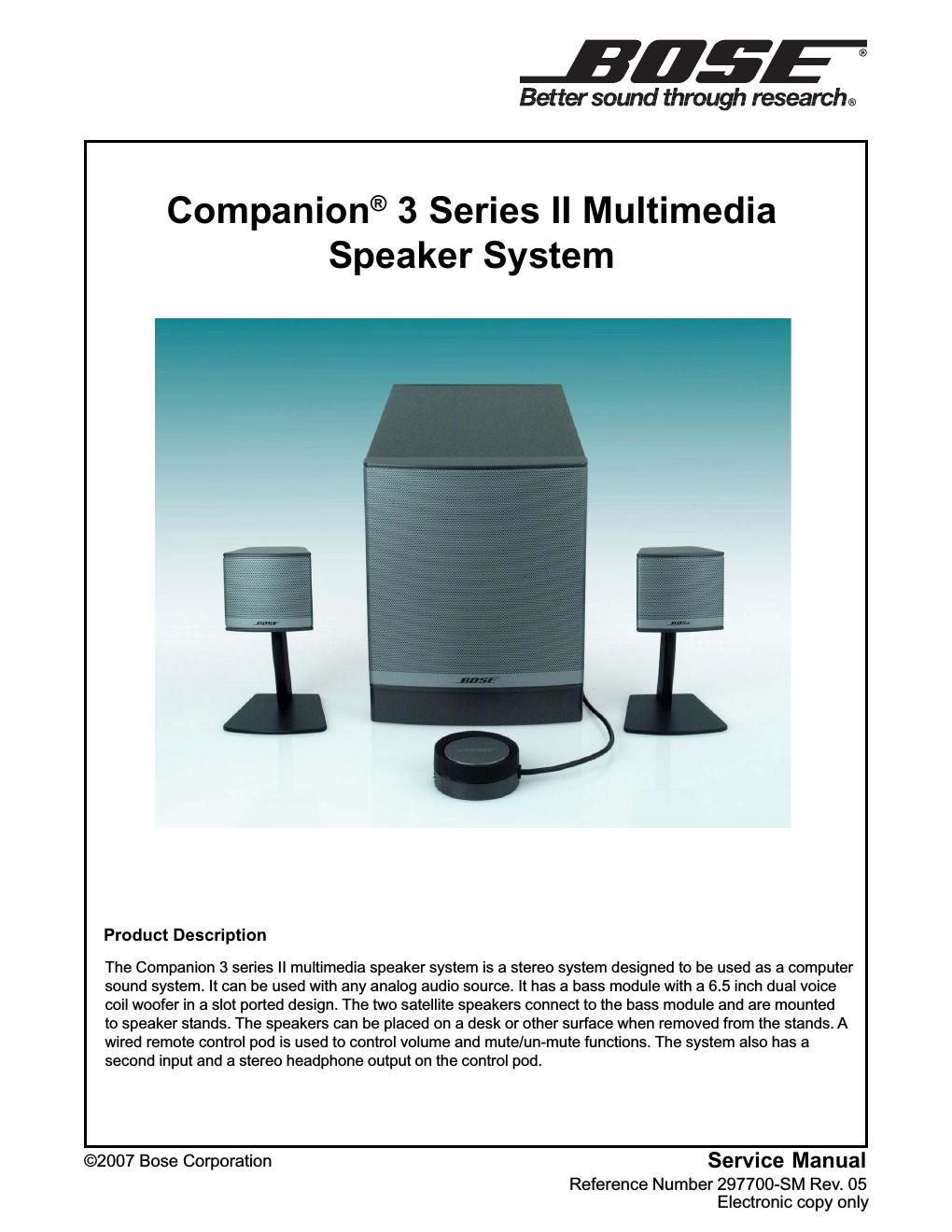

Bose companion 3 series ii sm r05
This is the 30 pages manual for bose companion 3 series ii sm r05.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from bose companion 3 series ii sm r05 (Ocr-read)
Page 1
2 Warranty The Bose ® Companion ® 3 series II MultiMedia Speaker System is covered by a 1-year, transferable limited warranty. Caution: The Companion 3 series II MultiMedia Speaker System contains no user serviceable parts. To prevent warranty infractions, refer servicing to warranty service centers or factory service. Proprietary Information THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION OF BOSE CORPORATION WHICH IS BEING FURNISHED ONLY FOR THE PURPOSE OF SERVICING THE IDENTIFIED BOSE PRODUCT BY AN AUTHORIZED BOSE SERVICE CENTER OR OWNER OF THE BOSE PRODUCT, AND SHALL NOT BE REPRODUCED OR USED FOR ANY OTHER PURPOSE. Contents Safety Information ............................................................................................................................. 3 Electrostatic Discharge Sensitive (ESDS) Device Handling ....................................................... 3 Specifications.................................................................................................................................... 4 Part List Notes .................................................................................................................................. 5 Figure 1. Bass Module Assembly Exploded View ..............................................................................56 Bass Module Assembly Parts List ................................................................................................... 6 Figure 2. Amplifier Module Assembly Exploded View ...........................................................................7 Amplifier Module Assembly Parts list .............................................................................................. 7 Figure 3. Packing Exploded Veiw ........................................................................................................8 Packing Parts List ............................................................................................................................. 8 Electrical Parts List ....................................................................................................................9-19 Main PCB Assembly Parts List ...................................................................................................9-17 Power Supply PCB Assembly Parts List.................................................................................18-19 Disassembly Procedures .........................................................................................................20-22 Test Procedures.......................................................................................................................23-25 Theory of Operation .................................................................................................................26-28 Revision History ............................................................................................................................. 29
Page 2
3 Safety Information 1. Parts that have special safety characteristics are identified by the symbol on the schematics or by special notes on the parts list. Use only replacement parts that have critical characteristics recommended by the manufacturer. 2. Make leakage current or resistance measurements to determine that exposed parts are acceptably insulated from the supply circuit before returning the unit to the customer. Use the following checks to perform these measurements: A. Leakage Current Hot Check- With the unit completely reassembled, plug the AC line cord directly into a 120V AC outlet. (Do not use an isolation transformer during this test). Use a leakage current tester or a metering system that complies with the American National Standards Institute (ANSI) C101.1 Leakage Current for Appliances and the Underwriters Laboratories (UL) 6500/IEC 60056 paragraph 9.1.1. With the unit AC switch first in the ON position and then in the OFF position, mea- sure from a known earth ground (metal waterpipe, conduit, etc.) to all exposed metal parts of the unit (antennas, handle bracket, metal cabinet, screwheads, metallic overlays, control shafts, etc.) espe- cially any exposed metal parts that offer an electrical return path to the chassis. Any current measured must not exceed 0.5 milliamp. Reverse the unit power cord plug in the AC outlet and repeat the test. ANY MEASUREMENTS NOT WITHIN THE LIMITS SPECIFIED HEREIN INDICATE A POTENTIAL SHOCK HAZARD THAT MUST BE ELIMINATED BEFORE RETURNING THE UNIT TO THE CUS- TOMER. B. Insulation Resistance Test Cold Check- (1) Unplug the power supply and connect a jumper wire between the two prongs of the plug. (2) Turn on the power switch of the unit. (3) Measure the resis- tance with an ohmmeter between the jumpered AC plug and each exposed metallic cabinet part on the unit. When testing 3 wire products, the resistance measured to the product enclosure should be between 2 and infinite MOhms. Also, the resistance measured to exposed input/output connectors should be between 4 and infinite MOhms. When testing 2 wire products, the resistance measured to exposed input/output connectors should be between 4 and infinite MOhms. If it is not within the limits specified, there is the possibility of a shock hazard, and the unit must be repaired and rechecked before it is returned to the customer. Electrostatic Discharge Sensitive (ESDS) Device Handling This unit contains ESDS devices. We recommend the following precautions when repairing, replacing or transporting ESDS devices: Perform work at an electrically grounded work station. Wear wrist straps that connect to the station or heel straps that connect to conductive floor mats. Avoid touching the leads or contacts of ESDS devices or PC boards even if properly grounded. Handle boards by the edges only. Transport or store ESDS devices in ESD protective bags, bins, or totes. Do not insert unprotected devices into materials such as plastic, polystyrene foam, clear plastic bags, bubble wrap or plastic trays.
