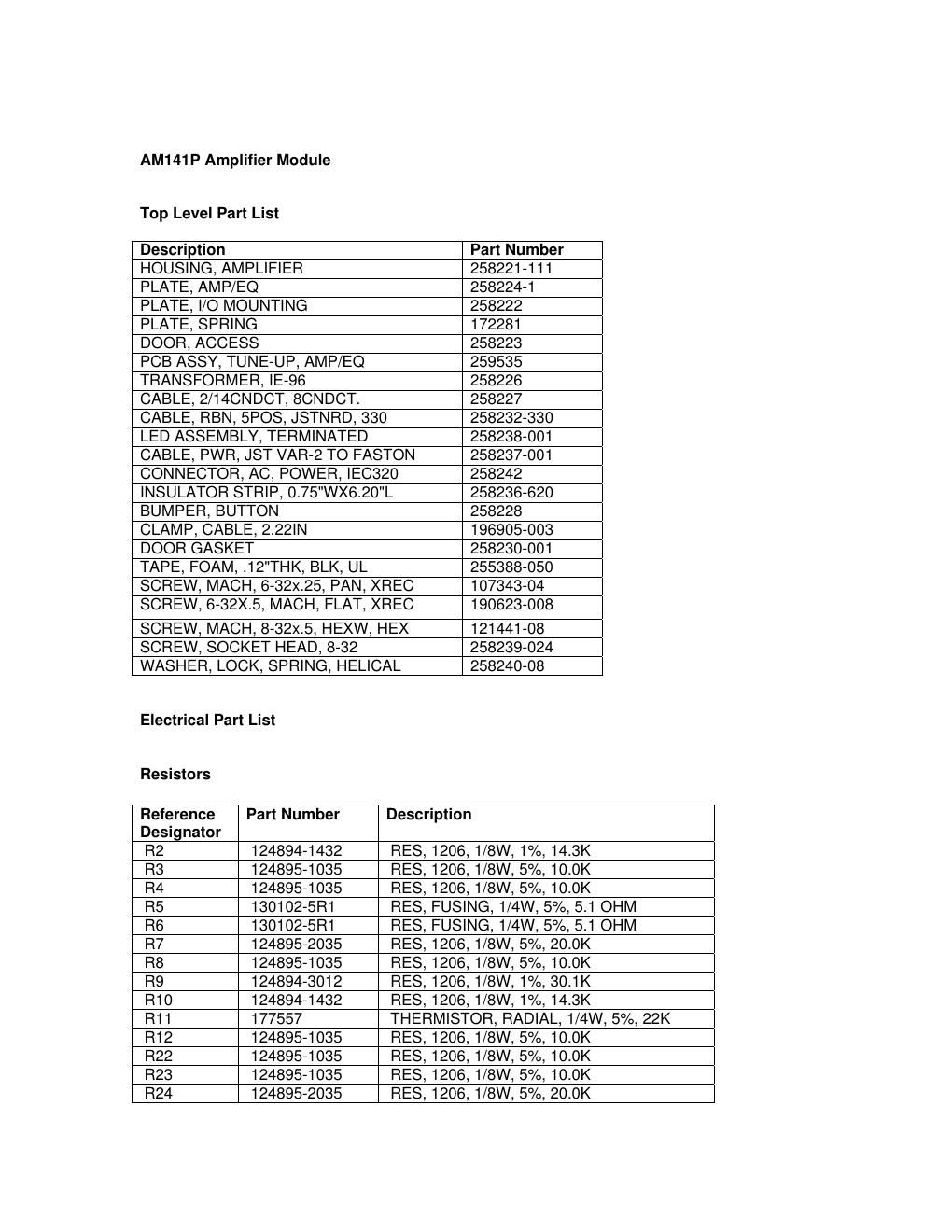

AM141 P Amplifier Module
Top Level Part List
Description Part Number
HOUSING, AMPLIFIER 258221-111
PLATE, AMP/EC) 258224»1
PLATE, I/O MOUNTING 258222
PLATE, SPRING 172281
DOOR, ACCESS 258223
PCB ASSY, TUNE-UP, AMP/EQ 259535
TRANSFORMER, IE-96 258226
CABLE, 2/14CNDCT, BCNDCT. 258227
CABLE, RBN, 5POS, JSTNRD, 330 258232-330
LED ASSEMBLY, TERMINATED 258238001
CABLE, PWR, JST VAR-2 TO FASTON 258237001
CONNECTOR, AC, POWER, IEC320 258242
INSULATOR STRIP, 0.75"WX6.20"L 258236-620
BUMPER, BUTTON 258228
CLAMP, CABLE, 2.22IN 196905003
DOOR GASKET 258230001
TAPE, FOAM, .12"THK, BLK, UL 255388050
SCREW, MACH, 6-32x.25, PAN, XREC 107343-04
SCREW, 6-32X.5, MACH, FLAT, XREC 190623-008
SCREW, MACH, 8-32x.5, HEXW, HEX 121441-08
SCREW, SOCKET HEAD, 832 258239-024
WASHER, LOCK, SPRING, HELICAL 258240-08
Electrical Part List
Resistors
Reference Part Number Description
Designator
R2 124894-1432 RES, 1206, 1/8W, 1%, 14.3K
R3 124895-1035 RES, 1206, 1/8W, 5%, 10.0K
R4 124895-1035 RES, 1206, 1/8W, 5%, 10.0K
R5 130102-5R1 RES, FUSING, 1/4W, 5%, 5.1 OHM
R6 130102-5R1 RES, FUSING, 1/4W, 5%, 5.1 OHM
R7 124895-2035 RES, 1206, 1/8W, 5%, 20.0K
R8 124895-1035 RES, 1206, 1/8W, 5%, 10.0K
R9 124894-3012 RES, 1206, 1/8W, 1%, 30.1K
R10 124894-1432 RES, 1206, 1/8W, 1%,14.3K
R11 177557 THERMISTOR, RADIAL, 1/4W, 5%, 22K
R12 124895-1035 RES, 1206, 1/8W,5%,10.0K
R22 124895-1035 RES, 1206, 1/8W, 5%, 10.0K
R23 124895-1035 RES, 1206, 1/8W, 5%, 10.0K
R24 124895-2035 RES, 1206, 1/8W, 5%, 20.0K
Page 2
Reference Part Number Description
Designator
R25 124895-2035 RES, 1206, 1/8W, 5%, 20.0K
R26 133625-2002 RES, CHIP, 0805, 1%, 20.0K
R27 133625-2492 RES, CHIP, 0805, 1%, 24.9K
R28 133625-2492 RES, CHIP, 0805, 1%, 24.9K
R29 133625-1002 RES, CHIP, 0805, 1%, 10.0K
R30 133625-1002 RES, CHIP, 0805, 1%, 10.0K
R31 133625-2492 RES, CHIP, 0805, 1%, 24.9K
R32 133625-2492 RES, CHIP, 0805, 1%, 24.9K
R33 133625-2002 RES, CHIP, 0805, 1%, 20.0K
R34 133625-1001 RES, CHIP, 0805, 1%, 1.00K
R35 133625-3011 RES, 0805, 1/10W, 1%, 3.01K
R38 133627 JUMPER, CHIP 0805
R102 133625-1001 RES, CHIP, 0805, 1%, 1.00K
R104 133625-1001 RES, CHIP, 0805, 1%, 1.00K
R105 133625-1742 RES, 0805, 1/10W, 1%, 17.4K
R106 133625-2491 RES, 0805, 1/10W, 1%, 2.49K
R107 133626-1035 RES, CHIP, 0805, 1/10W, 5%, 10K
R108 133625-1470 RES, 0805, 1/10W, 1%, 147 OHM
R109 133627 JUMPER, CHIP 0805
R110 133625-2491 RES, 0805, 1/10W, 1%, 2.49K
R111 133625-1002 RES, CHIP, 0805, 1%, 10.0K
R112 133625-1002 RES, CHIP, 0805, 1%, 10.0K
R114 133625-1692 RES, 0805, 1/1OW, 1%, 16.9K
R115 133625-1001 RES, CHIP, 0805, 1%, 1.00K
R116 133625-5111 RES, CHIP, 0805, 1/10W, 1%, 5.11K
R117 133625-1001 RES, CHIP, 0805, 1%, 1.00K
R118 133625-1002 RES, CHIP, 0805, 1%, 10.0K
R119 133625-2371 RES, 0805, 1/10W, 1%, 2.37K
R120 133626-1035 RES, CHIP, 0805, 1/10W,5%,10K
R121 133625-1331 RES, CHIP, 0805, 1%, 1.33K
R122 133626-1005 RES, CHIP, 0805, 5%, 10 OHM
R124 133625-1212 RES, CHIP, 0805, 1/10W, 1%, 12.1K
R125 133625-8871 RES, CHIP, 0805 1% 8.87K
R126 133625-1212 RES, CHIP, 0805, 1/10W, 1%, 12.1K
R127 133625-6810 RES, CHIP, 0805, 1/10W, 1%, 681 OHM
R129 133627 JUMPER, CHIP 0805
R130 133625-1001 RES, CHIP, 0805, 1%, 1.00K
R131 133625-2002 RES, CHIP, 0805, 1%, 20.0K
R132 133625-4320 RES, 0805, 1/10W, 1%, 432 OHM
R133 133625-1212 RES, CHIP, 0805, 1/10W, 1%, 12.1K
R134 133625-1212 RES, CHIP, 0805, 1/10W, 1%, 12.1K
R135 133626-3315 RES, CHIP, 0805, 1/10W, 5%, 330 OHM
R136 133626-3315 RES, CHIP, 0805, 1/10W, 5%, 330 OHM
R137 133626-1005 RES, CHIP, 0805, 5%, 10 OHM
R138 133627 JUMPER, CHIP 0805
R139 133625-7870 RES, 0805, 1/10W, 1%, 787 OHM
R140 133626-1035 RES, CHIP, 0805, 1/10W,5%,10K
R141 133625-3572 RES, 0805, 1/10W, 1%, 35.7K
R143 133625-2002 RES, CHIP, 0805, 1%, 20.0K
R149 133626-1045 RES, CHIP, 0805, 5%, 100K
R174 124894-5901 RES, 1206, 1/8W, 1%, 5.90K
R175
1 24895-1 825
RES,1206, 1/8W,5%,1.80K
