Bose acm 1 amplifier schematics
This is the 5 pages manual for bose acm 1 amplifier schematics.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Page: 1 / 5
Extracted text from bose acm 1 amplifier schematics (Ocr-read)
Page 1
Page 2

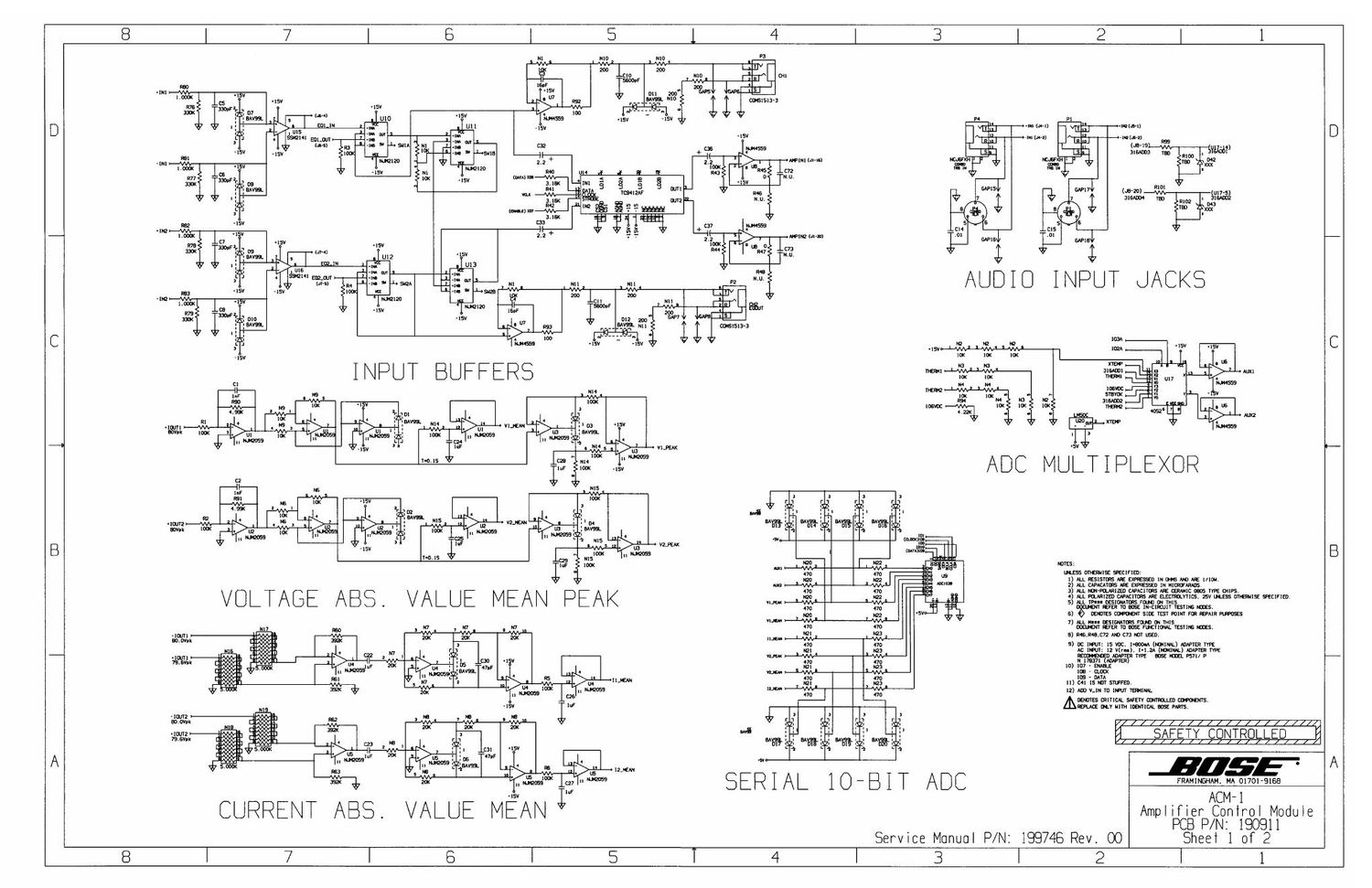

Bose ¨ ACM-1 Amplifier Control Module Motherboard PCB Topside Etch and Component Layout Diagram Service Manual P/N: 199746
