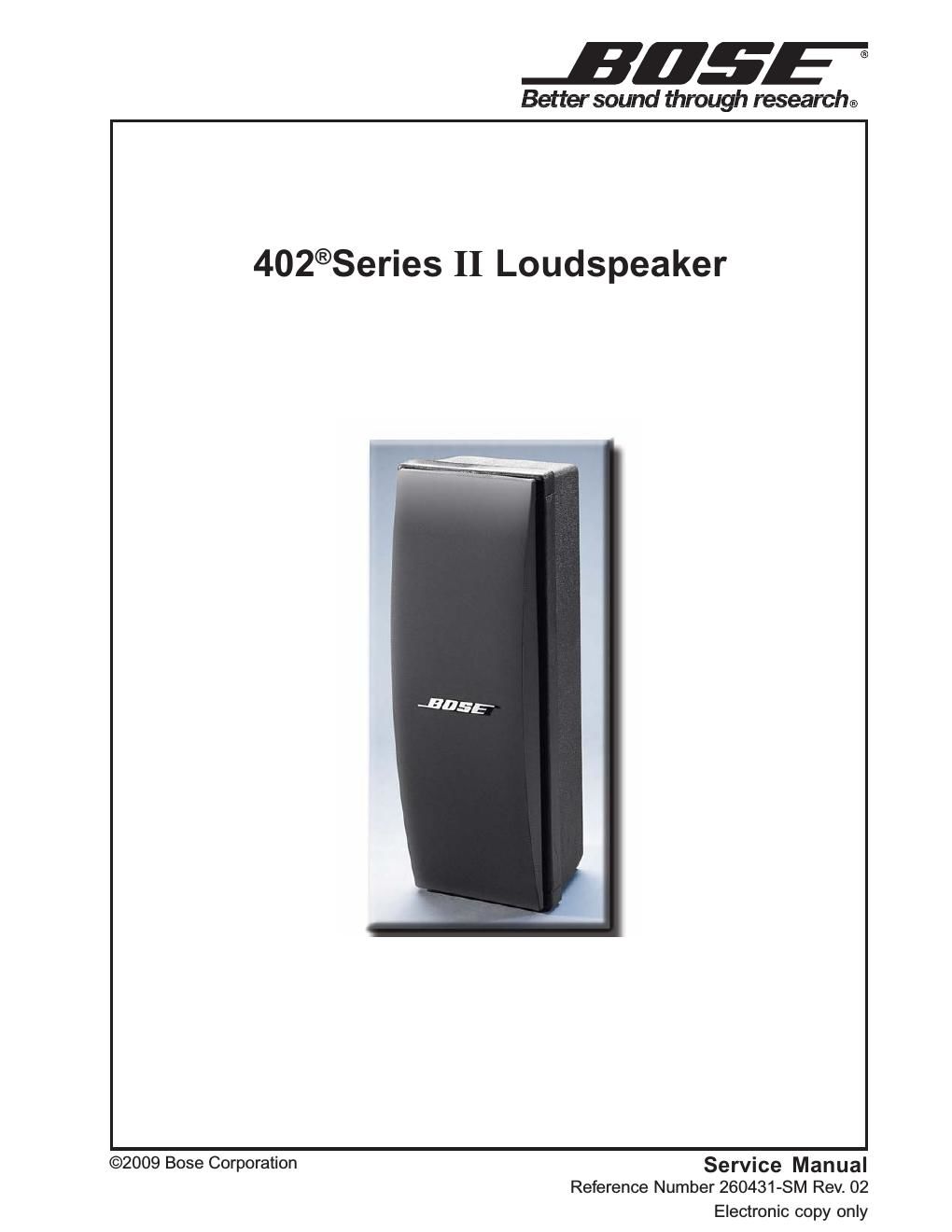

Bose 402 series ii speaker manual revision 02
This is the 9 pages manual for bose 402 series ii speaker manual revision 02.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from bose 402 series ii speaker manual revision 02 (Ocr-read)
Page 1
2 SPECIFICATIONS WARRANTY 5 year limited warranty PROPRIETARY INFORMATION THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION OF BOSE ® CORPORATION WHICH IS BEING FURNISHED ONLY FOR THE PURPOSE OF SERVICING THE IDENTIFIED BOSE PRODUCT BY AN AUTHORIZED BOSE SERVICE CEN- TER OR OWNER OF THE BOSE PRODUCT, AND SHALL NOT BE REPRODUCED OR USED FOR ANY OTHER PURPOSE. Specifications.................................................................................................................................... 1 Disassembly/Assembly Procedures ........................................................................................... 2-3 Figure 1. Schematic Diagram ..............................................................................................................3 Test Procedures ................................................................................................................................ 4 Main Part List ..................................................................................................................................... 5 Figure 2. Exploded View ......................................................................................................................5 Crossover PCB Part List .................................................................................................................. 6 Figure 3. Crossover PCB Layout ........................................................................................................6 Packaging Part List ........................................................................................................................... 6 Figure 4. Packaging View ....................................................................................................................6 External dimensions: Single speaker: 23.3" H x 8.2" W x 7.8" D (59.2 x 20.8 x 19.8)cm Packed system: 27.0" H x 12.0" W x 11.0" D (68.6 x 30.5 x 27.9)cm Weight: Single speaker: 17.5 lbs (7.94 kg) Packed system: 21.3 lbs (9.66 kg) Transducer: Four 4.5" environmental drivers per enclosure Internal cabinet volume: 1067.9 cu. In. (17.5 liters) Port: Type: Two rectangular ports located at the top and bottom. Total port area: 8.84 sq. in. (57 sq. cm) Port length: 3.23" (8.2cm) Resonance frequency: 90 Hz Impedance: 8 ± 2 Ohm Power handling: 120W continuous per IEC-268-5 Sensitivity: 90 dB SPL, 1W, 1m CONTENTS
Page 2
3 Figure 1. Exploded View MAIN PART LIST 12345627 8 9 10 11 12 13 14 15 16 17 12x4x2x2x 2x 2x2x2x 12x 4x 4x Item Number Description Part Number Qty Note 1 GRILLE, BLACK GRILLE, ARCTIC WHITE GRILLE, PRO GRAY 252380-001 252380-002 252380-004 1 2 SCREW, TAPP, 8-15, HEXW, SLOT 290290-12 14 3 DRIVER ASSEMBLY, 4.5" 291020-001 4 1 4 GASKET, DRIVER, 4.5" 128407 4 5 FOAM, ACOUSTIC, 19.75"x7"x1 120357 1 6 CLIP, TINNERMAN 187943 2 7 CROSSOVER ASSEMBLY 291042-001 1 8 CONN, SPEAKON, PANEL MOUNT 258213-002 2 9 SCREW, THUMB, M8x1.25x25mm 137050 2 10 CONN, FUSE CLIP, 1 POS, FEMALE 121112 2 11 SCREW, TAPP, 6-20x.5, PAN, XR 290296-08 2 12 TAPE, FOAM 257555 1 13 NUT, J-TYPE, 8-32 109481 12 14 INSERT, KNURLED 290293-01 4 15 DEFLECTOR 126973-1 1 16 SCREW, TAPP, 6-13x.625, PAN 290294-10 4 17 NAME PLATE, LOGO, BLACK NAME PLATE, LOGO, WHITE 254458-001 254458-002 1 Note: When ordering a driver, also order a driver gasket.
