Bose 402 c 802 c ii supplement 2
This is the 2 pages manual for bose 402 c 802 c ii supplement 2.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from bose 402 c 802 c ii supplement 2 (Ocr-read)

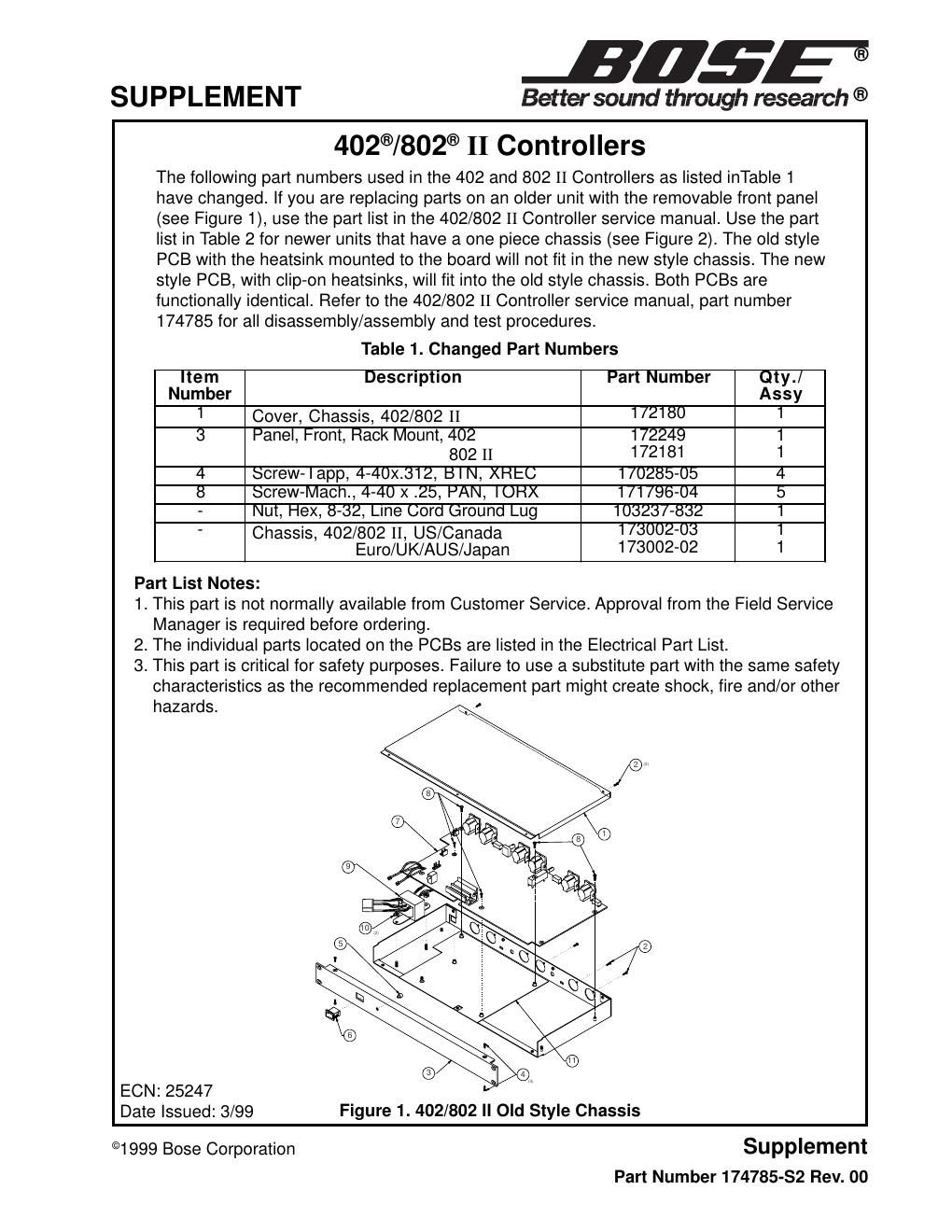

Page 1
SUPPLEMENT Table 2. Current Part Numbers Note: If you are replacing the PCB Assembly (item 11), you must also order heatsinks (item 3) as the PCB is not supplied with them. The heatsinks clip onto the voltage regulators in the positions shown in the drawing below. Figure 2. 402/802 II New Style Chassis 6X 2X (5)1 2 3 4 5 6 7 8 91011 2 12 C113 C114 13 5 9 4 14 Item NumberDescriptionPart NumberQty/ Assy.Note 1 Screw, 6-32, Mach, Flat, Xrec 190623-008 5 2 Screw, Mach, 4-40x.25, PAN, XREC 103140-04 7 3 Clip, Heatsink188599 2 4 XFMR, US/Canada/Japan, 100V/120V EUR/AUS/UK, 220V/240V180128-1 180128-21 13 5 Nut, Hex, 8-32, Keps 118260-08 3 6 Insulator, 9.25x7.56x.015, D/C143948 1 1, 3 7 Switch, Power, Rocker, SPST143960 1 3 8 Lens, LED, Clear, Chassis144023 1 9 Chassis, 402 ®, US/Canada Euro/UK/AUS/Jap198373-003 198373-0041 11 9 Chassis, 802 ® II, US/Canada Euro/UK/AUS/Jap198373-005 198373-0061 11 10 Screw, Tapp, 4-40x.375, PAN, XREC 170284-06 6 11 PCB Assy, 402 802 II172244-2 172175-21 11, 2 12 Cover, Chassis, 402/802 II198374-003 1 13 Line Cord, 3-Wire, USA/Canada 2-Wire, EU 2-Wire, Japan 3-Wire, UK 3-Wire, Aus173242 173243 173244 173245 1732461 1 1 1 13 14 Tape, Foam, 0.50" 198408 1
