Page 1

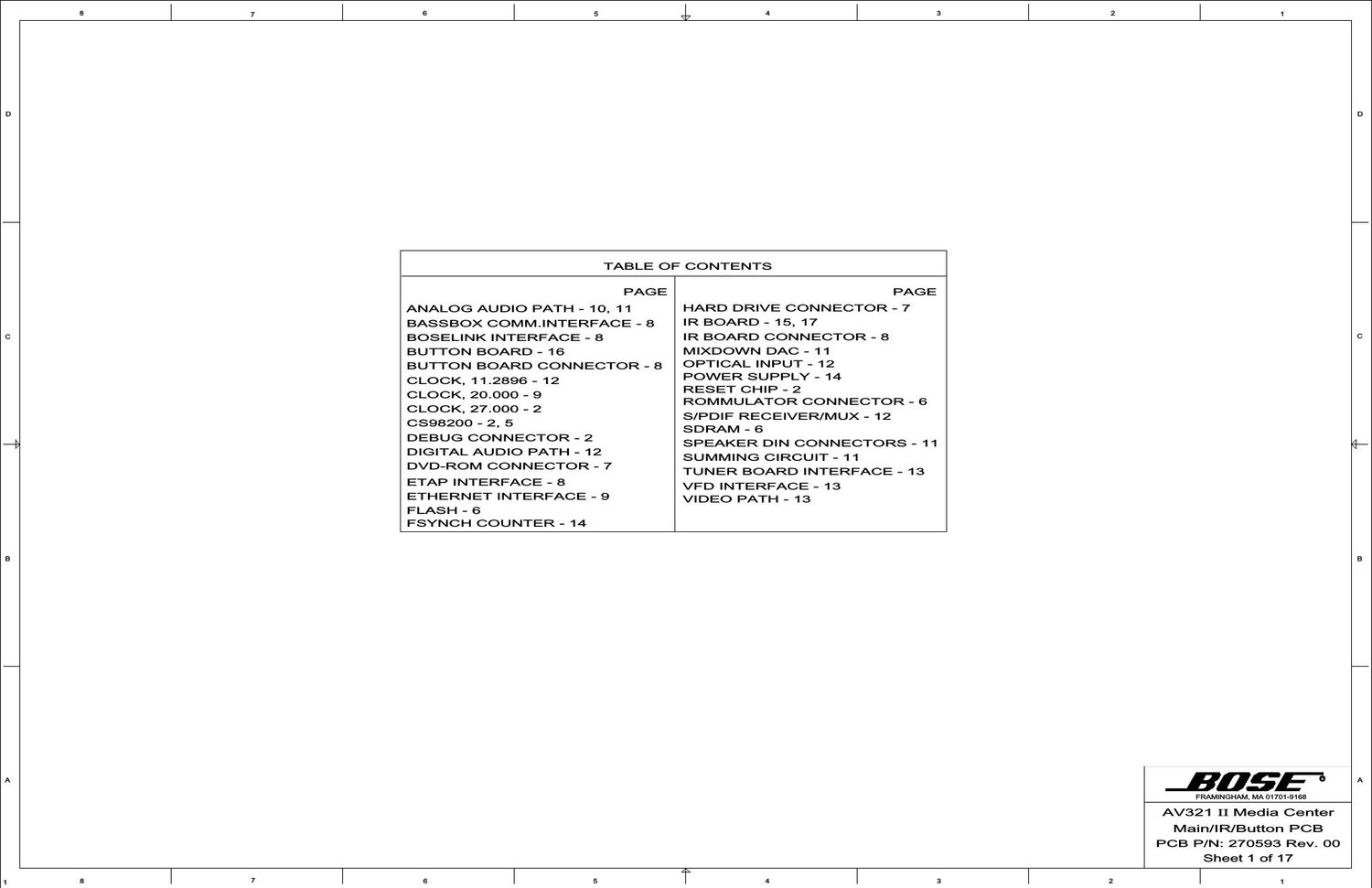

TABLE OF CONTENTS
PAG E
ANALOG AUDIO PATH - 10, 11
BASSBOX COMMJNTERFACE - 8
BOSELINK INTERFACE - 8
BUTTON BOARD - 16
BUTTON BOARD CONNECTOR - 8
CLOCK, 1 1 .2896 - 12
CLOCK, 20.000 - 9
CLOCK, 27.000 - 2
C8982OO - 2, 5
DEBUG CONNECTOR - 2
DIGITAL AUDIO PATH - 12
DVD-ROM CONNECTOR - 7
ETAP INTERFACE - 8
ETHERNET INTERFACE - 9
FLASH - 6
FSYNCH COUNTER - 14
PAG E
HARD DRIVE CONNECTOR - 7
IR BOARD - 15, 17
IR BOARD CONNECTOR - 8
MIXDOWN DAC - 1 1
OPTICAL INPUT - 12
POWER SUPPLY - 14
RESET CHIP - 2
ROMMULATOR CONNECTOR - 6
S/PDIF RECEIVER/MUX - 12
SDRAM - 6
SPEAKER DIN CONNECTORS - 1 1
SUMMING CIRCUIT - 1 1
TUNER BOARD INTERFACE - 13
VFD INTERFACE - 13
VIDEO PATH - 13
JUSE
FRAMINGHAM. MA 01701 -9168
AV321 11 Media Center
Main/lR/Button PCB
PCB P/N: 270593 Rev. 00
Sheet 1 of 17
1
