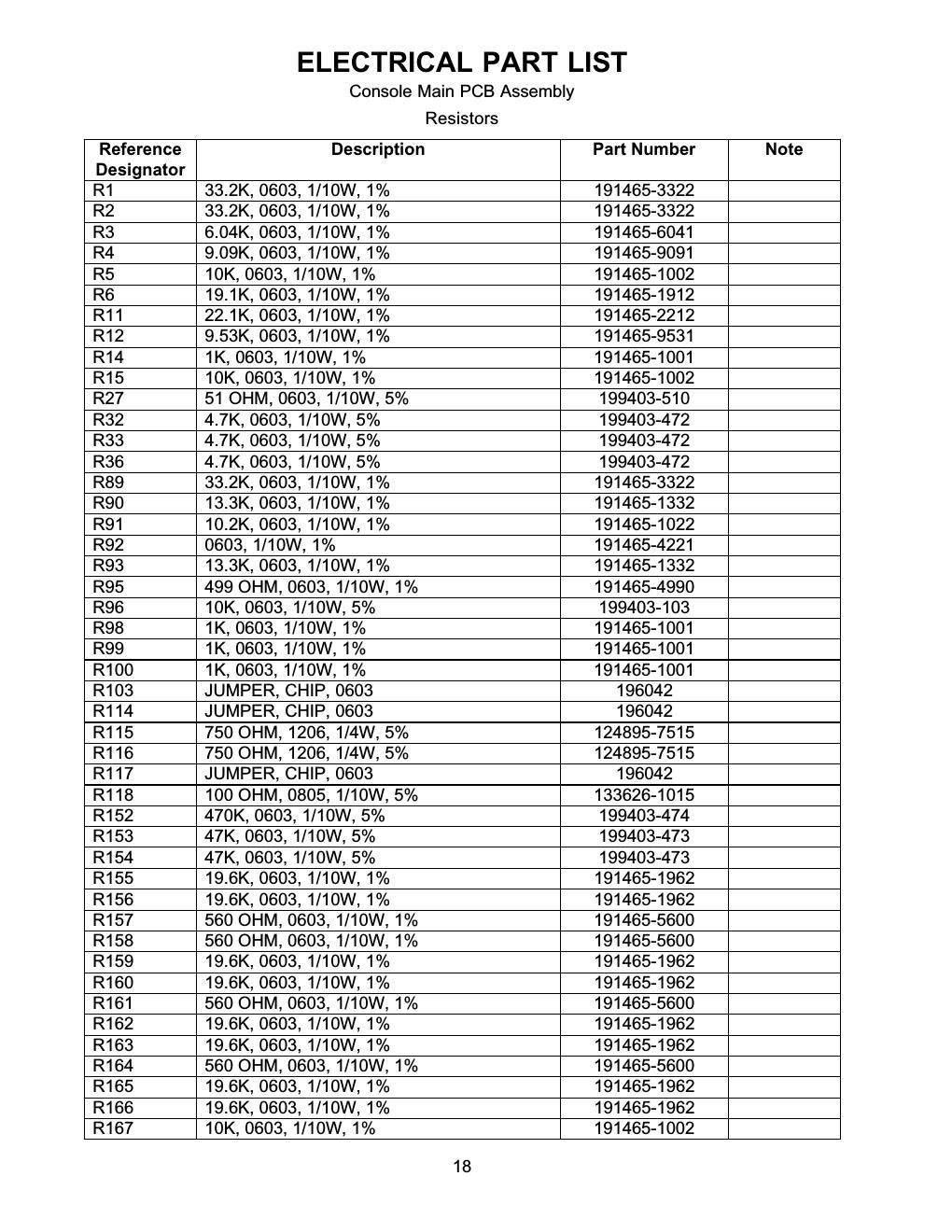

ELECTRICAL PART LIST
Console Main PCB Assembly
Resistors
Reference Description Part Number Note
Designator
R1 33.2K, 0603, 1/10W, 1% 191465-3322
R2 33.2K, 0603, 1/10W, 1% 191465-3322
R3 6.04K, 0603, 1/10W, 1% 191465-6041
R4 9.09K, 0603, 1/10W, 1% 191465-9091
R5 10K, 0603, 1/10W, 1% 191465-1002
R6 19.1K, 0603, 1/10W, 1% 191465-1912
R11 22.1K, 0603, 1/10W, 1% 191465-2212
R12 9.53K, 0603, 1/10W, 1% 191465-9531
R14 1K, 0603, 1/10W, 1% 191465-1001
R15 10K, 0603, 1/10W, 1% 191465-1002
R27 51 OHM, 0603, 1/10W, 5% 199403-510
R32 4.7K, 0603, 1/10W, 5% 199403-472
R33 4.7K, 0603, 1/10W, 5% 199403-472
R36 4.7K, 0603, 1/10W, 5% 199403-472
R89 33.2K, 0603, 1/10W, 1% 191465-3322
R90 13.3K, 0603, 1/10W, 1% 191465-1332
R91 10.2K, 0603, 1/10W, 1% 191465-1022
R92 0603, 1/10W, 1% 191465-4221
R93 13.3K, 0603, 1/10W, 1% 191465-1332
R95 499 OHM, 0603, 1/1OW, 1% 191465-4990
R96 10K, 0603, 1/10W, 5% 199403-103
R98 1K, 0603, 1/10W, 1% 191465-1001
R99 1K, 0603, 1/10W, 1% 191465-1001
R100 1K, 0603, 1/10W, 1% 191465-1001
R103 JUMPER, CHIP, 0603 196042
R114 JUMPER, CHIP, 0603 196042
R115 750 OHM, 1206, 1/4W, 5% 124895-7515
R116 750 OHM, 1206, 1/4W, 5% 124895-7515
R117 JUMPER, CHIP, 0603 196042
R118 100 OHM, 0805, 1/10W, 5% 133626-1015
R152 470K, 0603, 1/10W, 5% 199403-474
R153 47K, 0603, 1/10W, 5% 199403-473
R154 47K, 0603, 1/10W, 5% 199403-473
R155 19.6K, 0603, 1/10W, 1% 191465-1962
R156 19.6K, 0603, 1/10W, 1% 191465-1962
R157 560 OHM, 0603, 1/1OW, 1% 191465-5600
R158 560 OHM, 0603, 1/10W, 1% 191465-5600
R159 19.6K, 0603, 1/10W, 1% 191465-1962
R160 19.6K, 0603, 1/10W, 1% 191465-1962
R161 560 OHM, 0603, 1/1OW, 1% 191465-5600
R162 19.6K, 0603, 1/10W, 1% 191465-1962
R163 19.6K, 0603, 1/10W, 1% 191465-1962
R164 560 OHM, 0603, 1/1OW, 1% 191465-5600
R165 19.6K, 0603, 1/10W, 1% 191465-1962
R166 19.6K, 0603, 1/10W, 1% 191465-1962
R167 10K, 0603, 1/10W, 1% 191465-1002
18
Page 2
ELECTRICAL PART LIST
Console Main PCB Assembly
Resistors (continued)
Reference Description Part Number Note
Designator
R168 10K, 0603, 1/10W, 1% 191465-1002
R169 10K, 0603, 1/10W, 1% 191465-1002
R170 10K, 0603, 1/10W, 1% 191465-1002
R171 1K, 0603, 1/1OW, 5% 199403-102
R172 1K, 0603, 1/10W, 5% 199403-102
R173 10.0K, 0805, 1/10W, 5% 133626-1035
R175 10.0K, 0805, 1/10W, 5% 133626-1035
R196 19.6K, 0603, 1/10W, 1% 191465-1962
R197 19.6K, 0603, 1/10W, 1% 191465-1962
R198 19.6K, 0603, 1/10W, 1% 191465-1962
R199 19.6K, 0603, 1/10W, 1% 191465-1962
R200 19.6K, 0603, 1/10W, 1% 191465-1962
R201 19.6K, 0603, 1/10W, 1% 191465-1962
R202 19.6K, 0603, 1/10W, 1% 191465-1962
R203 19.6K, 0603, 1/10W, 1% 191465-1962
R204 100 OHM, 0603, 1/1OW, 5% 199403-101
R205 100 OHM, 0603, 1/10W, 5% 199403-101
R206 JUMPER, CHIP, 0805 133627
R1000 100K, 0603, 1/1OW, 5% 199403-104
R1001 100K, 0603, 1/10W, 5% 199403-104
R1002 100K, 0603, 1/10W, 5% 199403-104
R1004 100K, 0603, 1/1OW, 5% 199403-104
R1005 100K, 0603, 1/1OW, 5% 199403-104
R1006 100K, 0603, 1/1OW, 5% 199403-104
R1008 560 OHMS, 0603, 1/1OW, 5% 199403-561
R1009 560 OHMS, 0603, 1/10W, 5% 199403-561
R1010 1.00K, 0805, 1/10W, 5% 133626-1025
R1011 4.7K, 0603, 1/10W, 5% 199403-472
R1012 4.7K, 0603, 1/10W, 5% 199403-472
R1015 100K, 0603, 1/10W, 5% 199403-104
R1016 100K, 0603, 1/10W, 5% 199403-104
R1017 1.00K, 0805, 1/10W, 1% 133625-1001
R1018 1.00K, 0805, 1/10W, 1% 133625-1001
R1019 1.00K, 0805, 1/10W, 5% 133626-1025
R1020 1.00K, 0805, 1/10W, 5% 133626-1025
R1021 1.00K, 0805, 1/10W, 5% 133626-1025
R1023 1.00K, 0805, 1/10W, 5% 133626-1025
R1024 1.00K, 0805, 1/10W, 5% 133626-1025
R1025 1.00K, 0805, 1/10W, 1% 133625-1001
R1026 1.00K, 0805, 1/10W, 1% 133625-1001
R1027 1.00K, 0805, 1/10W, 1% 133625-1001
R1028 1.00K, 0805, 1/10W, 1% 133625-1001
R1029 1.00K, 0805, 1/10W, 1% 133625-1001
R1030 1.00K, 0805, 1/10W, 1% 133625-1001
R2000 3.01K, 0603, 1/10W, 1% 191465-3011
