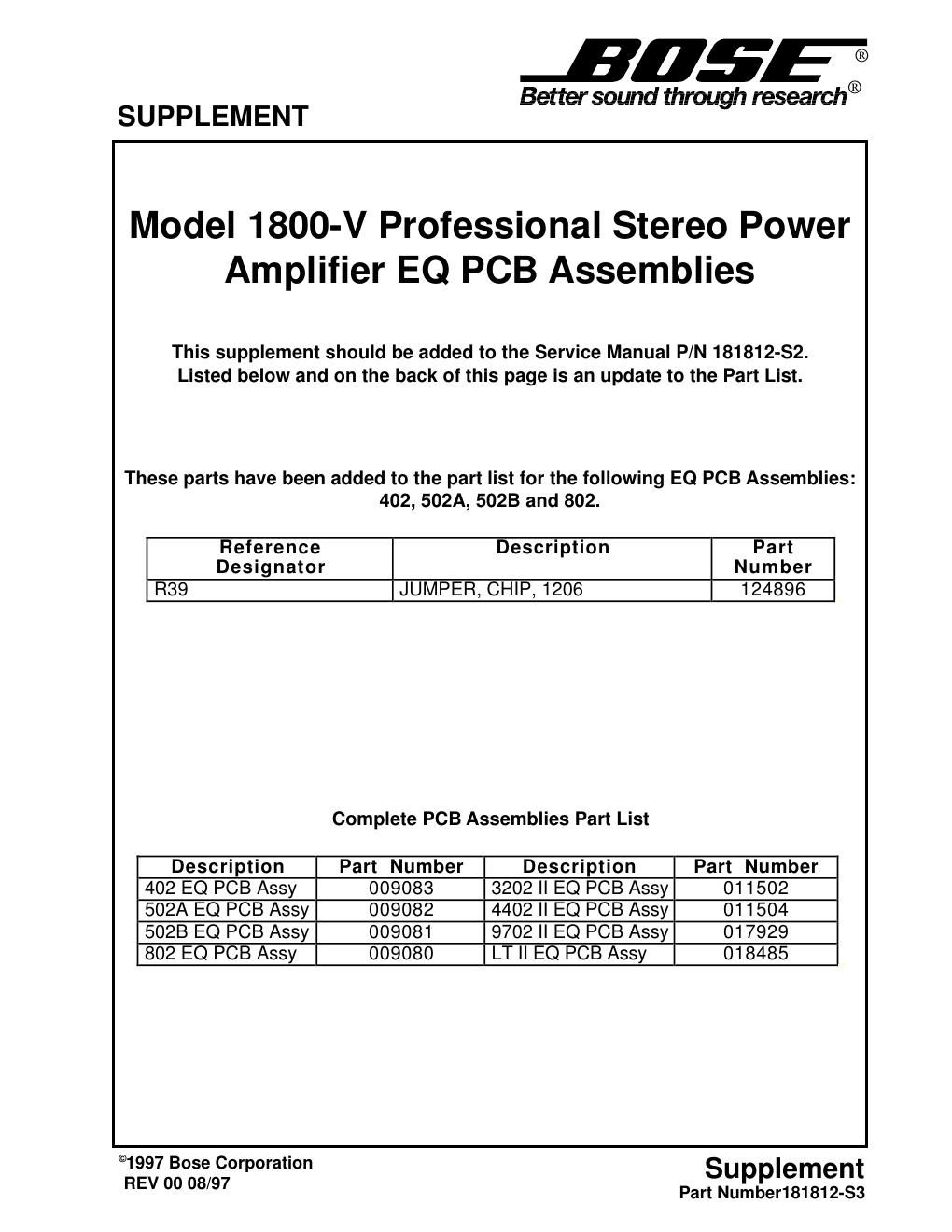

Page 1
The following is an update to the 9702 II EQ PCB Part List Service Manual P/N 181812-S2 The following component values have been changed. The changes are reflected on PCB number 183071 REV 04. There is no need to change any of these component values on PCB's before REV 04 The following components have been deleted from the PCB number 183071 REV 04. Reference DesignatorDescriptionPart Number R4 3.65KW, 0805, 1/10W, 1% 133625-3651 R10, 11 22.6KW, 0805, 1/10W, 1% 133625-2262 R17, 35 JUMPER, CHIP, 1206124896 R19, 20, 45, 46 90.9KW, 0805, 1/10W, 1% 133625-9092 R21 2.80KW, 0805, 1/10W, 1% 133625-2801 R22 14.7KW, 0805, 1/10W, 1% 133625-1472 R27, 40 40.2KW, 0805, 1/10W, 1% 133625-4022 R36 26.1KW, 0805, 1/10W, 1% 133625-2612 R37 15.0KW, 0805, 1/10W, 1% 133625-1502 R43, 44 16.9KW, 0805, 1/10W, 1% 133625-1692 C9, 10 .027uF, BOX, 85, 63V, 5%137127-273 C12, 30 820pF, DISC, SL, 50V, 10%137269-820 C13 .0012uF, BOX, 85, 100V, 5%137127-122 C14, 29 120pF, DISC, SL, 50V, 10%137269-121 C24 .0022uF, BOX, 85, 100V, 5%137127-222 C28 .0082uF, BOX, 85, 100V, 5%137127-822 C31 330pF, DISC, SL, 50V, 10%137269-331 Reference DesignatorDescriptionPart Number R15, 16, 31, 32 JUMPER, CHIP, 0805133627 R41, 42 34.0KW, 0805, 1/10W, 1% 133625-3402
