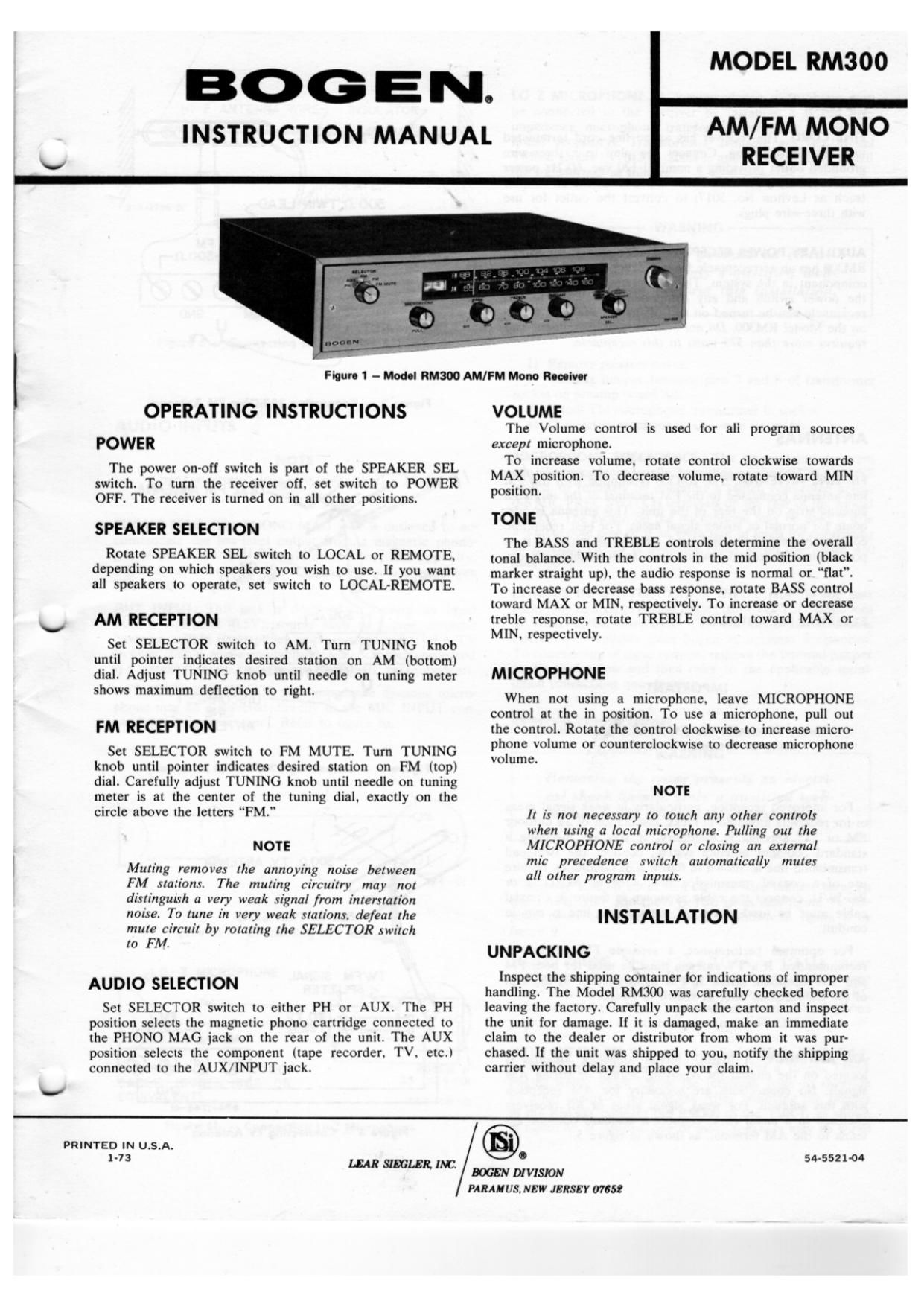

INSTRUCTION MANUAL

RECEIVER

Figure l - Model RMWO AM/FM Mono Rec-Ivor

OPERATING INSTRUCTIONS

POWER

The power on-ofl switch is part ol the SPEAKER SEL
switch. To tum the receiver off. set switch to POWER
OFF. The receiver is turned on in all other positions.

SPEAKER SELECTION

Rotate SPEAKER SEL switch to LOCAL or REMOTE.
depending on which speakers you wish to use. If you want
all speakers to operate. set switch to LOCAL-REMOTE.

AM RECEPTION

Set SELECTOR switch to AM. Turn TUNING knob
until pointer indicates desired station on AM lbottom)
dial. Adjust TUNING knoh until needle on tuning meter
shows maximum deflection to right.

FM RECEPTION

Set SELECTOR switch to FM MUTE. Turn TUNING
knob until pointer indicates desired station on FM (top)
dial. Carefully adjust TUNING knob until needle on tuning
meter is at the center of the tuning dial. exactly on the
circle above the letters FM."

NOTE

Mating removes the annoying noire between
FM statianx. The muting circuitry may not
distinguish a very weak signal from interrtation
noise. To tune in very weak stations. defeat the
mute circuit by rotating the SELECTOR switch
to FM.

AUDIO SELECTION

Set SELECTOR switch to either PH or AUX. The PH
position selects the magnetic phono cartridge connected to
the PHONO MAG jack on the rear of the unit. The AUX
position selects the component {tape recorder. TV. etc.)
connected to the AUX/INPUT jack.

VOLUME

The Volume control is used for all program sources
except microphone.

To increase volume. rotate control clockwise towards
MAX position. To decrease volume. rotate toward MIN
position.

TONE

The BASS and TREBLE controls determine the overall
tonal balance. With the controls in the mid position (black
marker straight upl. the audio response is normal or flat".
To increase or decrease bass response. rotate BASS control
toward MAX or MIN. respectively. To increase or decrease
treble response. rotate TREBLE control toward MAX or
MIN. respectively.

MICROPHONE

When not using a microphone. leave MICROPHONE
control at the in position. To use a microphone. pull out
the control. Rotate the control clockwise to increase micro-
phone volume or counterclockwise to decrease microphone
volume.

NOTE

It is not necessary to touch any other controls
when rating a local microphone. Pulling out the
MICROPHONE control or closing an external
mic precedence rwtlch automatically mute:
all other program inputr.

INSTALLATION
UNPACKING

Inspect the shipping container for indications of improper
handling. The Model RM300 was carefully checked before
leaving the factory. Carefully unpack the carton and inspect
the unit for damage. If it is damaged. make an immediate
claim to the dealer or distributor from whom it was pur-
chased. ll the unit was shipped to you, notify the shipping
carrier without delay and place your claim.

PRINTED IN U.S.A.

173 tun sweat: tw.

@.

WEN DIVISION
PARAIUS. NEW JERSEY 0765!

MODEL RM300

AM/ FM MONO

54-55210

Page 2

POWER

lINE CORD. The receiver has an ac line cord terminated
in a three-prong plug. Connect the plug to a three-wire
grounded outlet providing a nominal 120 vac. 60 Hz power
source. If only a two-wire outlet is available, use an adapter
(such as Leviton No. 5017! to convert the outlet for use
with three-wire plugs.

AUXILIARY POWER RECEPTACLE. The rear of the Model
RM300 has an ac receptacle for supplying power to another
component in the system. This receptacle is controlled by
the power switch and any component connected to this
receptacle can be turned on and off by the POWER switch
on the Model RM300. Do not connect any component that
require: more than 575 watts 10 this receptacle.

ANTENNAS

PM "ME ANTENNA. The RM300 is shipped with the FM
line antenna connected to the FM terminal of the insulated
antenna strip on the rear of the unit. This antenna is ade-
quate for normal or strong signal areas. For best reception,
completely unwind the line cord. placing as much of it as
possible in a horizontal position away from metallic objects.

EXTERNAL FM ANTENNA

IMPORTANT

Always disconnect the FM Line Antenna when
using an external FM antenna.

For improved reception, particularly in weak signal areas
or for receivers mounted in racks. installation of an outdoor
FM or T" antenna is necessary. If you are installing a
standard SOC-ohm antenna system. connect the twin-lead
transmission line as shown in figure 2. [I conditions require
use of a coaxial transmission line. such as RG-ll/U or
RG-59/U. connect the cable as shown in figure 3. Coaxial
cable must be used when the transmission line is run in
conduit.

For optimum performance. a separate FM antenna is
recommended. If a TV antenna must be used for both FM
and TV reception, install an FM signal splitter at the end
of the transmission line. as shown in figure 4.

AM ANTENNA. A high-O. ferrite Ioopstick antenna is
located on the chassis for receiving normal or strong AM
signals. No connections are necessary for AM reception
with this antenna. For weak signal areas or for receivers
enclosed in a metal rack. connect a standard outdoor an-
tenna to the AM terminal. as shown in figure 5.

_2_

300.0. FM ANTENNA

AM GND
DISCONNECT LINE
ANTENNA

Flgure 2 - Connecting (NO-Ohm FM Antenna

RGII/U
0R

SHIELD R6 59/ U

lg m o

GND ETA-ITSQ-OI

Q". msconnecr
W- UNE
ANTEMA

Figure 3 - Connecting 72-Ohm FM Antenna

300.0. TV ANTENNA

300.0. TWIN LEAD

TV/FM SIGNAL

SPLITTER
{aw-éro TV FM
on 0--. [-300n-|
6ND
l16-l740-OI

Flgure 4 - Conneetlng TV Antenna
