Bogen CHB 100 Operating Manual

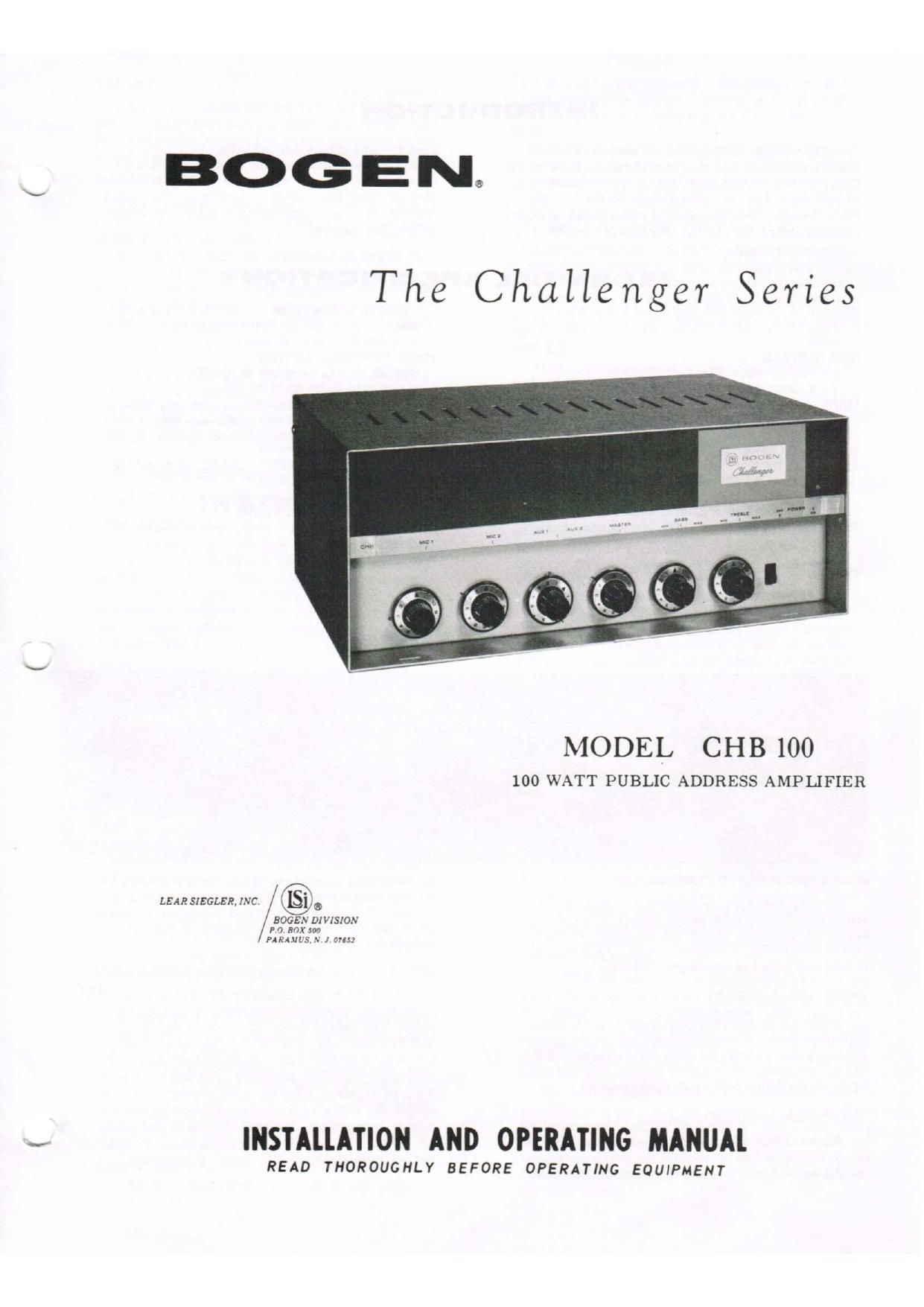

Page 1

BOGENQ

The Challenger Series

MODEL CHB 100

100 WATT PUBLIC ADDRESS AMPLIFIER

LEAR SIEGLER, INC. @ 0
BOGEN DI VISION
P o nnx m
7,4 RAJIL'S, .v 1, am:

INSTALLATION AND OPERATING MANUAL

READ THOROUGHLY BEFORE OPERATING EQUIPMENT

Page 2

INTRODUCTION

The model CHBIOO is a general purpose
loo-watt public address amplifier. It features
five separate inputs with facilities br- selection
and mixing of up to three inputs. A master vol-
ume control provides control of overall gain.
Separate Bass and Treble controls are incorpor-

ated for adjusting tonal balance.

Outputs are provided for all standard speaker
impedances and for operation with 25-volt and
70-volt long line speaker systems. Two quick
disconnect type plugs permit quick connection
of speaker system.

TECHNICAL SPECIFICATIONS

USEABLE POWER: 100 watts at 5% distortion
FREQUENCY RESPONSE: 20 to 20,000 Hz,
t2db
HUM & NOISE:
MIC Input: 65db below rated power
AUX Input: 80db below rated power
GAIN:
MIC Input: 125db
AUX Input: ioodb
MAG Phone Input: 115db
SENSITIVITY:
MIC Input: 4 milllvolts
AUX Input: 0.2 volts
MAG Phono Input: 12 rnillivolts
INPUTS 2 microphone (high impedance),1 mag-
netic phono and 2 auxiliary (high impedance.
high level)
OUTPUTS: 4. 8 and 16 ohm speaker, 25-volt (8

ohms) and '70-vo1t (80 ohms) line. 2 quick dis-
connect sockets and connectors provided in
addition to screw terminals.

TONE CONTROL ACTION:
TREBLE: +12 to -15db at 10 kHz
BASS: +14 to -9 db at 50 Hz

CONTROLS: Microphone No. 1 Volume, Input 2
Volume, Input 2 Selector Switch, Auxl/Z Vol-
ume. Master Volume. Bass. Treble, Power
and Balance Adjustment.

TUBES: Total of 7 (615707, 11AX'7, 604. 4-7868)
plus 3 silicon rectifier-s.

POWER CDNSUMPTION'. 300 watts, 105-125
volts. 50 to 60 cycles, AC

DIMENSIONS: 15-3/4 wide. 6~3/4 high, 10"
deep

WEIGHT: 26 lbs.

ACCESSORIES

MODEL SR2 REMOTE CONTmLLER

Permits the user to control the gain of the
Mic l and Mic Z/Mag Phono inputs from dis-
tances up to 2,000 feet from amplifier without
sacrificing power or signal quality. Allows you
to mix and fade the two signal inputs.

MODEL LK-5 LOCKING PLATE

Model LK-5 Locking Plate is designed to pre-
vent unauthorized tamperingwith controls ofamo
lifier. Comes complete with instructions and a
set of two keys. As a safety factor. key cannot
be removed when lock is in open position.

MODEL LPG-4 PHONO PLAYER TOP

Model LPG-4 is a complete 4-speed phono-
player designed to be mounted directly on top of
of the amplifier. The unit comes complete with

allnecessary hardware. It can be easily install-
ed and connected to amplifier with only a screw-
driver. It includes a 4~speed vibration-isolated
turntable and tone arm housing a dual-Styli
turnover cartridge.

MODEL WMT-l LINE MATCHING TRANSFORMER

Used with this amplifier for distribution of
background music directly from a leased tele-
phone line, wired music systems or any 0 level
500/600 ohm line. Provides an impedance match
between 500/600 ohm balanced line and high
impedance input of amplifier. The WMT-l has a.
3-screw terminal strip for input connections and
output. No wiring or soldering required for making
normal connections between amplifier and input
or output lines. Slight modification permits
WMT-l connection to MIC input of amplifier.
