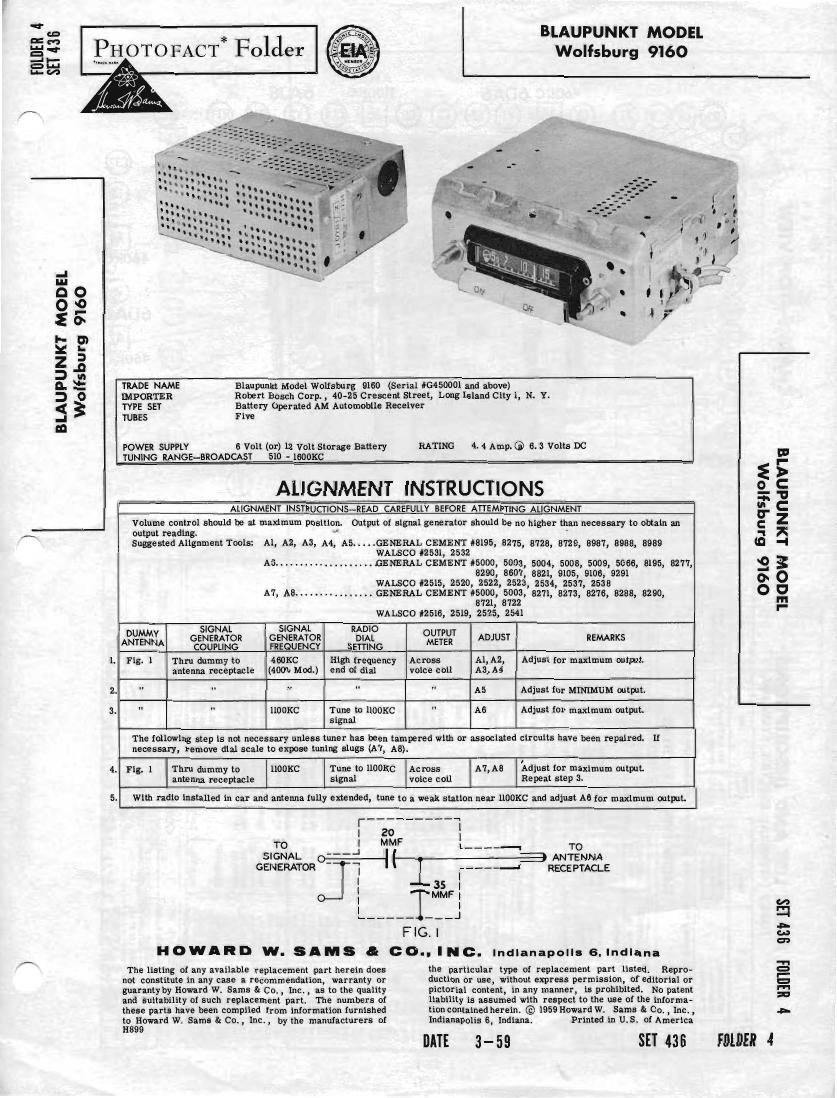

Page 1

FfllllEIl 4
SET 438

PHOTO FACT Folder

BLAUPUNKT MODEL
Wolfsburg 9160

BLAUPUNKT MODEL
Wolfsburg 9160

TRADE NAME Bianpunkt Model Wolisburg 9180 (Serial 56450001 and above)

EMPORTER Robert Bosch Corp. , 40-25 Crescent Street, Long Island City l, N. Y.

TYPE SET Battery Operated AM Automobile Receiver

TUBES Five

POWER SUPPLY 5 Volt (or) 12 Volt Storage Battery RATING 4. 4 Amp. Q 6- 3 Volts DC

TUNING RANGE-BROADCAST 510 -1600KC

ALIGNMENT INSTRUCTIONS

ALIGNMENT INSYRUCIIONS-READ CAREFULLY BEFORE ATTEMPTING ALIGNMENT

Volume control should he at maximum position Output of signal generator should be no higher than necessary to obtain an
output reading
Sugested Alignment Tools: Al, A2, A3, A4, A5.. . . .GEN'ERAL CEMENT #8195, 8275, 8128, 8729, 8987, 8988, 8989
WALSCO 2531, 2532
A5. . . . . . . . .. . . . . . . . . . . GENERAL CEMENT 5000, 5093, 5004, 5008, 5009, 5066, 8195, 8277,
8290, 8807, 3321, 9105, 9106, 9291
WALSCO #2515, 2520, 2522, 2523, 2534, 2537, 2538

A7, A8. .....1.. GENERAL CEMENT wsoou, 5003, 8271, 8273, 3276, 3233, 8290,
8721, 3122
wanco #2516, 2519, 2525, 2541
SIGNAL SIGNAL RADIO
Afiiéflm GENERATOR GENERATOR DIAL 9kg}? ADJUST REMARKS
COUPLING FREQUENCY SETTING
i. Fig. l Thru dummy to 4601: High irequemy Across ALAZ, Adjust for maximum output.
antenna receptacle (40m. Mod.) end of dial voice coil AS,A4
2. " " " " " A5 Adjust for MINIMUM wlput.
3. " " liODKC Tune {0 0ch " A6 Adjust for maximum output.
signal
The following step is not necessary unless tuner has been tampered with or associated circuits have been repaired. If
necessary, remove dial scale to expose tuning slugs (A7, A8).
41 Fig. 1 Thru dummy to noose Tune to uooxc Across A7,A8 [Adjust (or maximum output.
antenna receptacle signal voice coil Repeat step 3.
5. with radio Installed in car and antenna fully extended, tune to a weak station near ilDDKC and adjust A6 for maximum output.

r"" - 1
I MO MP |
o-J-I t---. To
SIGNAL ANTENNA
GENERATOR 'i | RECEPTACLE

{ 35 |

I MMF 3

L _J

FIG. I
HOWARD w. SAMS & 00.. INC. lndlanapolls 6.Indlana

The listing of any available replacement part herein does the particular type oi replacement part listedl Repro-
not constitute in any case a recommendation, warranty or duction or use, without express permission, of editorial or
guaranty by Howard W. Sams & Co. , inc. , as to the quality pictorial content, in any manner, is prohibited. No patent
and suitability of such replacement part. The numbers of liability is assumed with respect to the use of the informa-
these parts have been compiled from iniormation furnished tion contained herein © l959 Howard w, Sums 8: Co. , Inc. ,
to Howard W. Sams & 00., Inc., by the manuiscturers of Indianapolis 6, lndiann. Printed in 0,8. 01 America
H899

DATE 3-59 SET 438
