Blaupunkt Sevilla RD 126 Owners Manual
This is the 24 pages manual for Blaupunkt Sevilla RD 126 Owners Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Blaupunkt Sevilla RD 126 Owners Manual (Ocr-read)

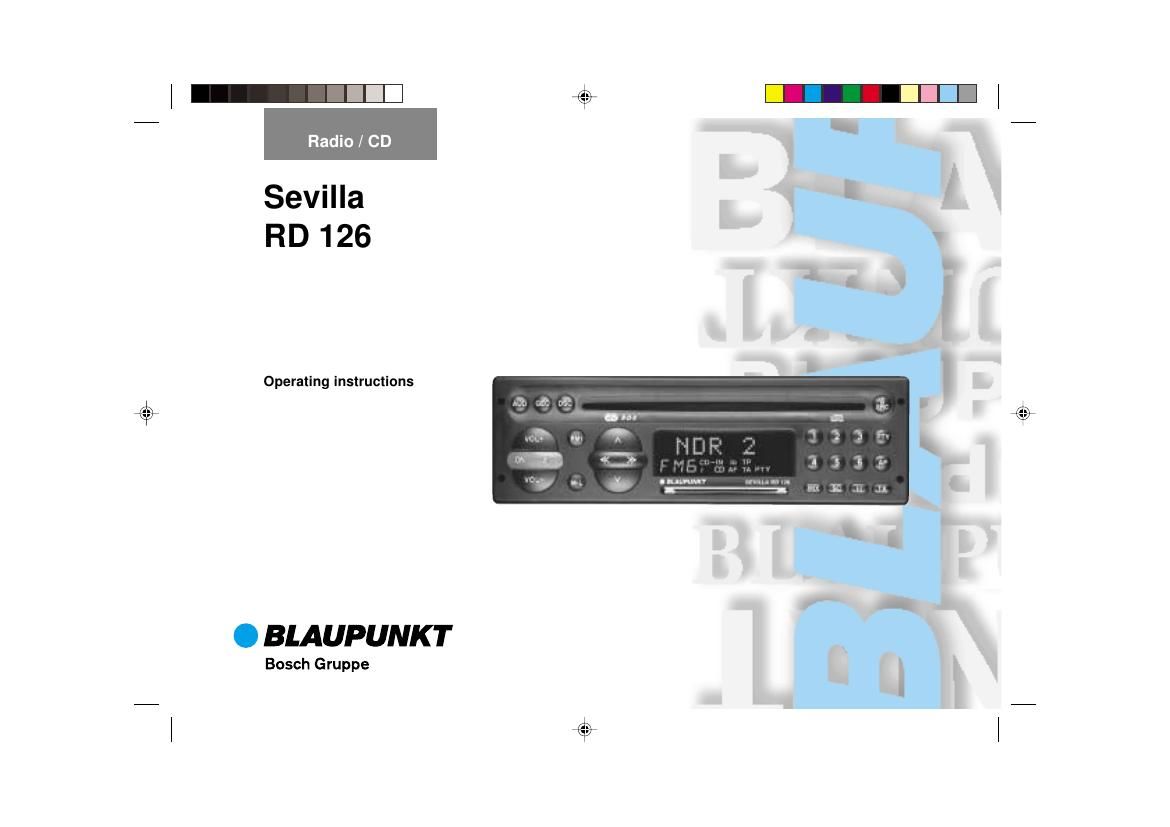

Page 1
3 13 14 2 17 20 18 19 11 9 4 51 2 15 8 16 7 6 13 10
Page 2
25 ENGLISH Contents Quick reference............................ 26 Important notes ............................ 31 Precautions........................................... 31 Traffic safety ......................................... 31 Installation ............................................. 31 Telephone mute .................................... 31 Accessories .......................................... 31 KeyCard theft protection system........................................... 32 Putting the unit into operation .............. 32 Removing the KeyCard ........................ 32 Training a second KeyCard/ Replacing a KeyCard ............................ 32 Displaying the radio pass data ............. 32 Short Additional Memory (S.A.M.) ........ 33 Turn On Message (T.O.M.) .................. 33 Optical indication for extra security ...... 33 Care of your KeyCard ........................... 33 Switching the audio source ........ 33 Radio operation with RDS ........... 34 AF - Alternative frequency .................... 34 REG - regional programme .................. 34 Selecting a waveband .......................... 34 Station tuning ........................................ 34 Automatic tuning / ....................... 34 Manual tuning with << >> .................. 35 Scrolling through the broadcasting net- works (only FM) .................................... 35 Changing the memory bank (FM) ......... 35 Storing stations ..................................... 35 Automatically storing the strongest stations with Travelstore ....................... 36 Recalling stored stations ...................... 36 Scanning stored stations with Preset Scan .......................................... 36 Scanning stations with Radio-Scan ...... 36 Changing the scan time ........................ 36 Selecting the seek tuning sensitivity .... 36 Switching from stereo to mono ............. 37 PTY – Programme Type ....................... 37 Switching PTY on/off ......................... 37 Programme type ................................... 37 Checking the programme type of the station ................................................ 37 Displaying the selected programme type .................................................... 37 Selecting a programme type ............. 37 Storing programme types .................. 38 Scanning stations with PTY-SCAN ... 38 PTY priority ........................................ 38 Receiving traffic programme stations with RDS-EON ................ 39 Traffic announcement priority on/off .... 39 Warning beep ....................................... 39 Switching the warning beep off ............ 40 Automatic seek tuning start (CD operation) ...................................... 40 Adjusting the volume for traffic an- nouncements and the warning beep .... 40Adjusting GEO for traffic messages and the warning beep ........................... 40 CD operation................................. 41 Switching to CD operation .................... 41 Inserting a CD ....................................... 41 Removing a CD .................................... 41 Selecting a title ..................................... 41 MIX playback ........................................ 41 Selecting the display mode .................. 41 Storing the display mode ...................... 41 SCAN operation .................................... 42 DSC programming ....................... 42 Overview of the DSC factory settings.................................................. 44 Appendix ....................................... 44 Specifications ........................................ 44
Page 9
32 KeyCard theft protection system ERR will appear in the display. In this case please do not make any further adjustments. The system will switch off after approximate- ly ten seconds. When inserting another card type (e.g. phone or credit card), the display will show WRONG KC for approximately two sec- onds. Remove the wrong card and introduce the correct KeyCard. After the display indications CARD ERR or WRONG KC: -Press ON to turn on the set. Removing the KeyCard Never pull out the KeyCard directly! - First, slightly push in the KeyCard. This releases the card and puts it in the prop- er position for being removed. - Now you can pull it out. Training a second KeyCard/ Replacing a KeyCard While operating the unit with the first KeyCard, you can train a second one to be also used with the set: -Insert the first KeyCard and turn on the set. - Press the DSC button and select LEARN KC with / . - Press << or >>. The display will switch to CHANGE. - Push in the KeyCard. The card is re- leased and put in the proper position for being removed. - Remove the first KeyCard and insert the new one while CHANGE is still being displayed. After the display indication READY or LEARN KC, - press DSC. Now you can also use the new KeyCard for operating your unit. A maximum of two cards can be used for the set. When trying to train a third one, the ac- cess authorisation for the KeyCard not used for the training process will be deleted automatically. Displaying the radio pass data Using the KeyCard supplied with your set you can have the radio pass data such as the model name, product number (7 6 ...) and serial number indicated on the display panel. Please refer to chapter DSC programming - READ KC. This car radio is supplied with one KeyCard as standard, though it can also be operated with a second card. If you have lost your KeyCard or if it was damaged, you can buy a new one from your specialised dealer. When using two KeyCards, the settings stored on the first card will be adopted. How- ever, you can individually store the follow- ing functions: Preset button assignments, bass, treble, balance and fader settings, Loudness, TA (traffic announcement volume), beep vol- ume. In addition, the settings activated before switching the radio off, such as the wave- band, station, TA priority, AF, REG ON/OFF, SCANTIME, seek tuning sensitivity and VOL FIX will also remained stored. This ensures that you will find your basic settings re-adjusted automatically as soon as you have inserted your KeyCard. Putting the unit into operation - Turn on the set. Introduce the KeyCard into the slot with the contact area showing up (KeyCard tongue sticking out). The car radio is now ready for operation. If a wrong KeyCard is inserted, then CARD
