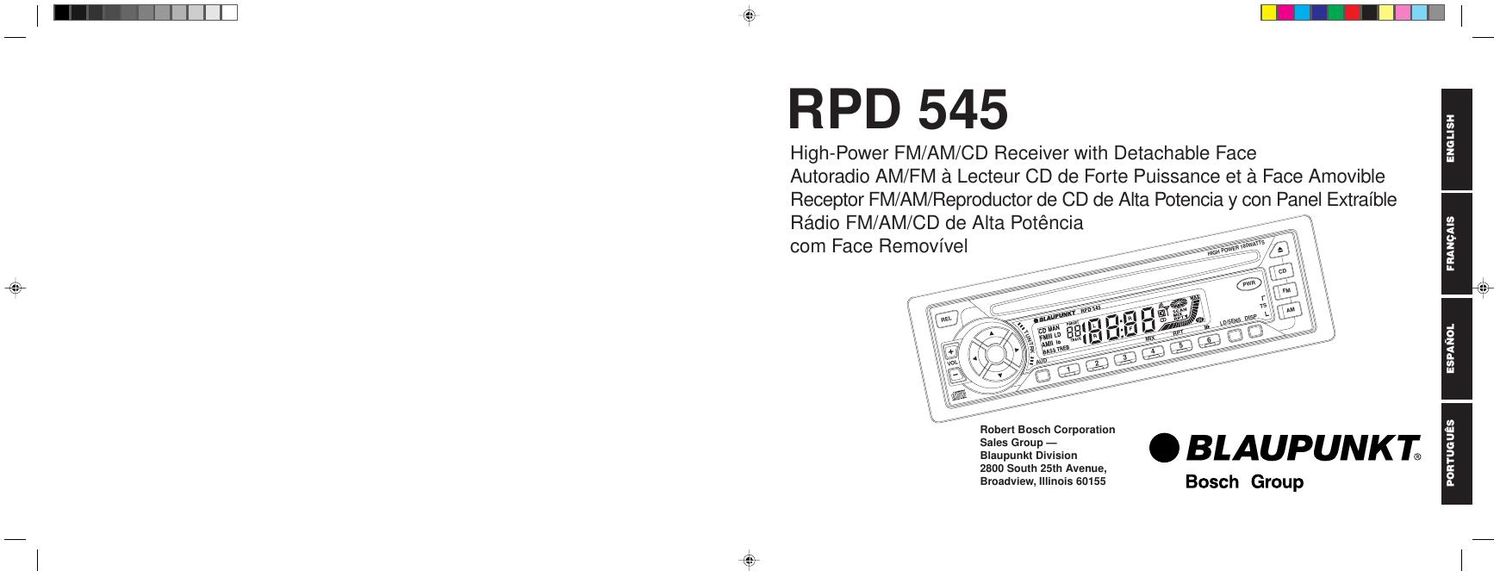

Blaupunkt RPD 545 Owners Manual
This is the 37 pages manual for Blaupunkt RPD 545 Owners Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Blaupunkt RPD 545 Owners Manual (Ocr-read)
Page 1
E-1 ENGLISH This equipment has been tested and found to comply with the limits for a Class B device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy, and, if not installed and used in accordance with in- structions, may cause harmful interference with radio commu- nications. However, there is no guarantee that radio interfer- ence will not occur in particular installation. If this equipment does cause harmful interference to radio or television recep- tion, which can be determined by turning the equipment off and on, the user is encouraged to consult the dealer or an experi- enced radio/TV technician for help. You are cautioned that any changes or modifications not ex- pressly approved in this manual could void your authority to operate this equipment. Features ¥ Detachable front panel ¥ Built-in power amplifier(max. output : 40W ´ 4ch) ¥ Digital 12-hour quartz clock ¥ FM/AM PLL synthesizer tuner ¥ 30 Station preset memory ¥ Auto Store / Scan tuning ¥ 2-ch preamp output FCC WARNING ¥ Carefully read this manual before using the unit. If you en- counter any problems that are not covered in this manual, please consult the dealer where you purchased the unit or the dealer nearest to you. ¥ Avoid installing the unit where it would be subject to high tem- peratures, such as in direct sunlight or a hot air stream from the heater, or where it would be subject to dust, dirt, or exces- sive vibration. ¥ Do not turn on the unit if the temperature inside the car is very high. Always cool down the unit before usage. Parking your car in direct sunlight will result in a temperature rise. ¥ If the unit does not turn on, check the connections first. Then check whether the fuse at the back of the unit is blown. ¥ This unit has been designed specifically for playback of com- pact discs bearing the mark. Other discs cannot be played. Handling Compact Discs ¥ Be careful when removing a compact disc after the playback is completed because the disc may be extremely hot. ¥ Do not expose compact discs to direct sunlight or any direct heat source. ¥ Check all compact discs before playing, and discard cracked, scratched or warped discs. ¥ Wipe dirty or damp discs outward from the center with a soft cloth. ¥ Do not use any solvent such as commercially available clean- ers, antistatic spray, or thinner to clean the compact discs. Precautions Attaching the Front Panel Place the right hand side of the front panel so that the parts A of the front panel are engaged with the parts B of the unit as shown below. Then push the left hand side of the front panel until it is securely locked. Detaching the Front Panel Remove the CD from the unit, if any, and turn off the power of the unit. Press the REL to unlock the front panel from the unit. Grasp the front panel as shown below and remove it from the unit. Security To avoid theft or loss of the front panel, you can deactivate the release button REL by installing the locking screw provided. 1. Unscrew the bolt marked * at the left front side of the unit. (See diagram above) 2. Attach the front panel. 3. Select a longer bolt from the mounting hardware (See page 6) and screw it into the same hole to fasten the front panel. Notes ¥ Do not press hard on the front panel when affixing it to the unit. No more than light to moderate pressure should beneeded. ¥ Make sure there is no dust or dirt on the electrical terminals on the back of the front panel as this could cause intermitentoperation or other malfunctions. Handling the Front Panel
Page 2
ENGLISH E-2 1 REL button Releases the detachable front panel. 2 CD insertion slot Insert the CD here. 3 LCD Display window 4 PWR button Turns the power of the unit on. Mute on/off during power on. Press for more than 2 seconds to turn off. 5 Eject button Ejects the CD. 6 CD button Switches the CD playback mode. 7 FM button Selects the FM Band & FM Travel store. 8 AM button Selects the AM Band & AM Travel store. 9 DISP button Display selector. Clock adjustment. 10 LD/SENS button Switches the reception sensitivity between local and distance. Loudness on/off. Identification of Controls 11 PRESET MEMORY button During radio reception : 1 - 6/ ; For Preset memory During CD mode : 4/MIX ; For Mix play 5/RPT ; For Repeat play 6/ ; For Pause 12 AUD button Audio control selector; Bass, Treble, Balance, Fader & Mute level. Mute level is selectable. 13 / button Used to tune in to the desired station. Adjusts the bass/treble/balance. 14 / button Scan/Preset scan tuning. Scan play in CD mode. Adjusts the bass/treble/fader. 15 VOL + / Ð button Adjusts the volume and mute level. Mute is adjustable from 0 to -80. TUN/TRK 123456 HIGH POWER 60WA S PWR CD FM S AM DISP RP MIX AUD VOL REL LD/SENS
