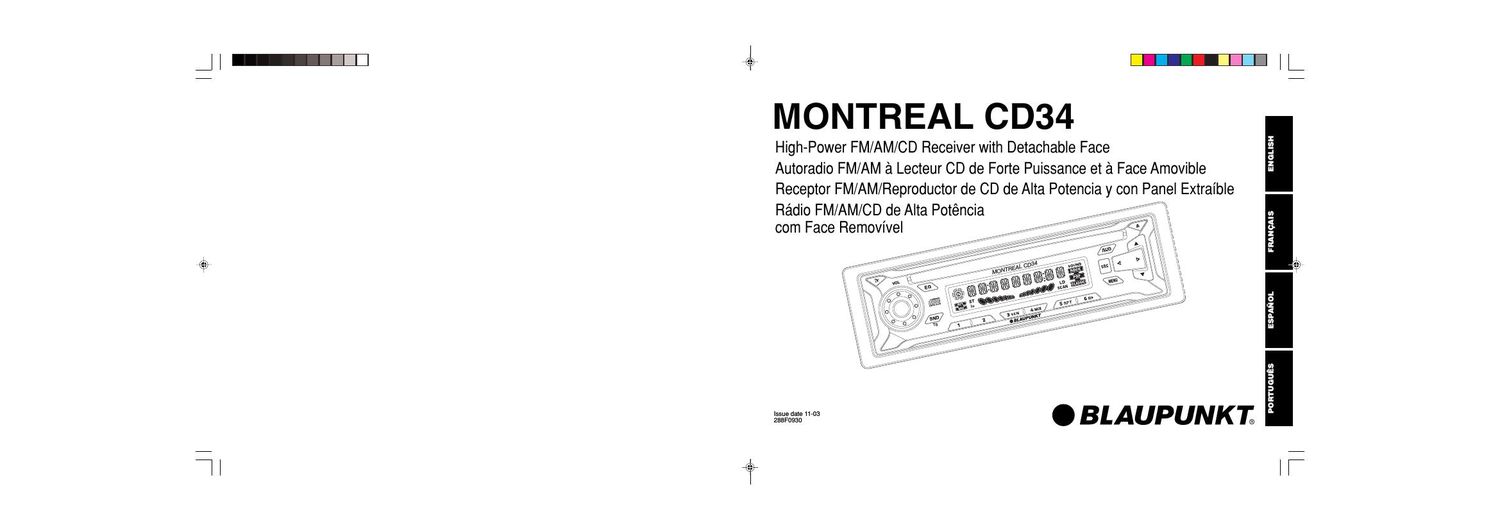

Blaupunkt Montreal CD 34 Owners Manual
This is the 49 pages manual for Blaupunkt Montreal CD 34 Owners Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Blaupunkt Montreal CD 34 Owners Manual (Ocr-read)
Page 1
ENGLISH E-1 Precautions This equipment has been tested and found to comply with the limits for a Class B device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable pro- tection against harmful interference in a residential installa- tion. This equipment generates, uses, and can radiate radio frequency energy, and, if not installed and used in accord- ance with instructions, may cause harmful interference with radio communications. However, there is no guarantee that radio interference will not occur in particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to consult the dealer or an experienced radio/TV technician for help. You are cautioned that any changes or modifications not ex- pressly approved in this manual could void your authority to operate this equipment. Features - Detachable front panel - CD-R/RW available - Built-in power amplifier(max. output : 40W X 4ch) - FM/AM PLL Synthesizer tuner - 30 Station preset memory - Travel Store / Scan tuning - IR Remote Controls - Auxiliary input FCC WARNING - Avoid installing the unit where it would be subject to high temperatures, such as in direct sunlight or a hot air stream from the heater, or where it would be subject to dust, dirt, or excessive vibration. - Do not turn on the unit if the temperature inside the car is very high. Always cool down the unit before usage. Parking your car in direct sunlight will result in a temperature rise. - If the unit does not turn on, check the connections first. Then check whether the fuse at the back of the unit is blown. - Carefully read this manual before using the unit. If you en- counter any problems that are not covered in this manual, please consult the dealer where you purchased the unit or the dealer nearest to you. - This unit has been designed specifically for playback of compact discs bearing the following mark. Other discs can- not be played. Handling Compact Discs -Be careful when removing a compact disk after the play- back is completed because the disk may be extremely hot. - Do not use non-conventional discs such as heart-shaped, octangonal discs, etc. The player could be damaged. - Do not expose compact discs to direct sunlight or any heat source. - Check all compact discs before playing, and discard cracked, scratched or warped discs. - Wipe dirty or damp discs outward from the centre with a soft cloth. - Do not use any solvents such as commercially available cleaners, antistatic spray, or thinner to clean the compact discs. Handling the Front Panel Attaching the Front Panel Place the right hand side of the front panel so that the parts A of the front panel are engaged with the parts B of the unit as shown below. Then push the left hand side of the front panel until it is securely locked. Detaching the Front Panel Remove the CD from the unit, if any, and turn off the power of the unit. Press the to unlock the front panel from the unit. Grasp the front panel as shown below and remove it from the unit. Security To avoid theft or loss of the front panel, you can inactivate the release button by installing the screw provided. 1.Unscrew the bolt marked ✼ at the left front side of the unit. (See diagram above) 2.Attach the front panel. 3.Select a locking screw from the mounting hardware (See page 9) and screw it into the same hole to fasten the front panel. Notes- Do not press hard on the front panel when affixing it to the unit. No more than light to moderate pressure should beneeded. - Make sure there is no dust or dirt on the electrical terminals on the back of the front panel as this could cause intermitentoperation or other malfunctions.
Page 2
ENGLISH E-2 Identification of Controls VOL TS MONTREAL CD34 1 PWR button Turns the power of the unit on or off. 2 REL button Releases the detachable front panel. 3 VOL dial Adjusts the volume level and audio control. 4 EQ button Selects the equalizer curve. 5 LCD Display window 6 CD insertion slot Insert the CD here. 7 SRC button Selecting the operating source (Radio, CD, AUX). 8 AUDIO button Enters the Audio adjustment mode. (Bass, Treble, Loud- ness, Balance, Fader etc,.). 9 Eject button Ejects the CD. Reset the unit (Press and hold for more than 10 seconds). 10 / button Scan/Preset scan tuning. Select the item in adjustment mode. 11 / button Used to tune in to the desired station. Select the item in adjustment mode. 12 MENU button Display selector. Enters the display item adjustment mode. 13 PRESET MEMORY button During radio reception : 1 - ; For Preset memory During CD mode : ; For Scan play; For Mix play; For Repeat play; For Pause 14 BND button Selects the AM/FM band & T ravel store. 15 Infrared Sensor Permits wireless remote control of AM/FM/CD with RC- 823 credit card style remote. Front Panel LCD Display 1 DISC IN indicator 2 Tuning / CD Running indicator 3 Main display section 4 Equalizer indicator 5 LOUDNESS indicator 6 SCAN indicator 7 R-ch/L-ch Level Meter/Manual tuning indicator 8 STEREO signal indicator 9 lo(Local) indicator 10 MIX/RPT Mode indicator 345 2 16 7 8 9 1 11 12 13 14 15 10 34 5 2 6 7 8 9 10 Remote Control You can operate your receivers basic AM, FM, CD features via an optional IR Remote Control. Optional Credit Card type is available.
