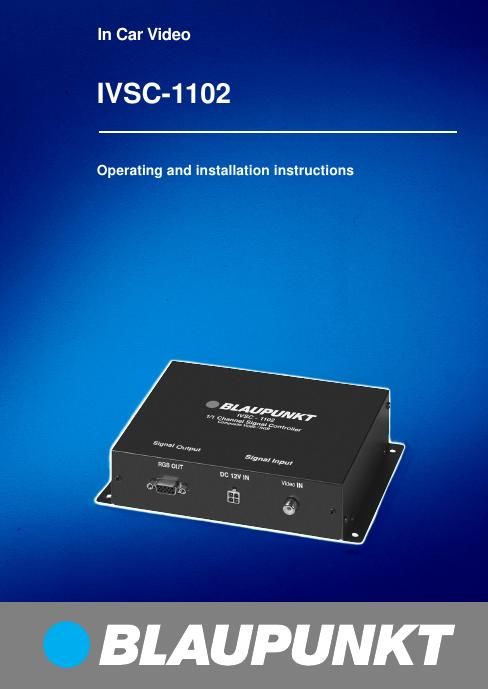

Blaupunkt IVSC 1102 Owners Manual
This is the 7 pages manual for Blaupunkt IVSC 1102 Owners Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Blaupunkt IVSC 1102 Owners Manual (Ocr-read)
Page 1
6 CONTENTS General information ................. 7 Installation and safety notices .......... 7 Accessories .................................... 7 Function .......................................... 7 Supplied parts .......................... 8 Installation ................................ 8 Installation and safety notices .......... 8 Positive connection ......................... 8 Switching positive ........................... 9 Negative (ground) connection .......... 9 Specifications .......................... 9 Features .......................................... 9 Connection diagrams ............. 38
Page 2
7 ENGLISH General information Thank you for choosing a Blaupunkt product. We hope you enjoy using this new piece of equipment. Please read these operating instruc- tions before using the equipment for the first time. The Blaupunkt editors are constantly working on making the operating in- structions clearer and easier to under- stand. However, if you still have any questions on how to operate the device, please contact your dealer or the tele- phone hotline for your country. You will find the telephone number printed at the back of this booklet. We provide a manufacturer guarantee for our products bought within the Eu- ropean Union. You can view the guar- antee conditions at www.blaupunkt.de or ask for them directly at: Blaupunkt GmbH Hotline Robert Bosch Str. 200 D-31139 Hildesheim Inst allat ion and s afet y not ices Before connecting your signal control- ler, please read the following informa- tion carefully. The batterys negative terminal must be disconnected for the entire time it takes to install and connect this de- vice. When doing so, observe the vehicle manufacturers safety notices (airbags, alarm systems, trip computers, immo- bilizers). Before drilling any holes, make sure that no installed cables or vehicle compo- nents can be damaged. When installing the signal controller, select a location in the vehicle that al- lows you to attach it firmly into place using screws. The installation location should be such that the signal control- ler does not get in the way of the driver and cannot endanger the occupants in the event of the vehicle suddenly com- ing to a halt, for instance, during an emergency stop. Accessories We recommend you use accessories that have been approved by Blaupunkt. Funct ion The IVSC-1102 signal controller makes it possible for you to connect analogue video sources like the IVDP-01, IVTV- 01, etc. to Blaupunkt navigation com- ponents such as TravelPilot DX-N, DX- V and similar devices. Certain settings must be configured in the navigation components menu be- fore a video source image can be dis- played on the navigation monitor. Y ou will find information on the neces- sary settings in the operating instruc- tions for those components . GENER AL INFORMATION
