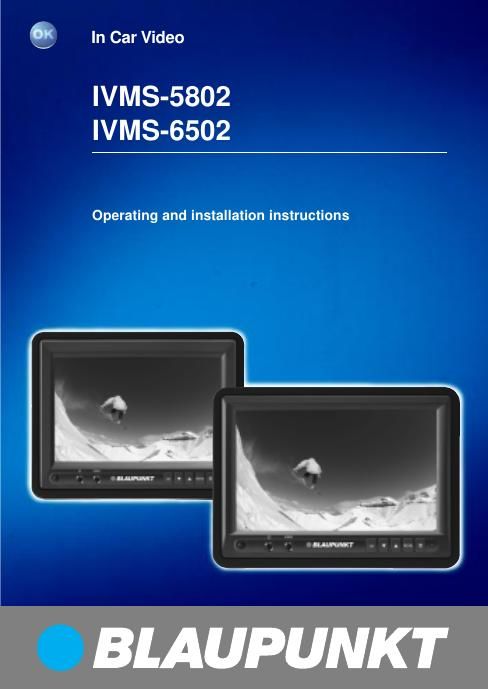

Blaupunkt IVMS 6502 Owners Manual
This is the 15 pages manual for Blaupunkt IVMS 6502 Owners Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Blaupunkt IVMS 6502 Owners Manual (Ocr-read)
Page 1
14 DEVICE OVERVIEW Device overview 5.8" and 6.5" TF T-LCD screen 15.8"/ 6.5" TFT LCD screen for headrests 2On/off switch 3Key for screen menu display (OSD menu) 4Up menu 5Down menu 6AV channel setting (AV1 - AV2 - ...)7Headphone socket 8Video input (internal) 9Connecting cable :Interface cable ;AV signal converter unit ON MENÜ I 7 VDEO CH 2 3 5 9 1 4 11 10 8 6
Page 2
15 ENGLISH TA BLE OF CONTENTS Device overview ..................... 14 5.8" and 6.5" TFT-LCD screen ...... 14 General information ............... 16 Important notes ............................. 16 Safety notices ............................... 16 Accessories ............................ 17 Accessories supplied .................... 17 Available accessories .................... 17 Fitting ..................................... 17 Monitor installation ......................... 17 Prepare the working area .............. 17 Mark out the dimensions ................ 17 Carefully cut open the headrest cover ............................................. 18 Open the headrest and remove filling and other items ..................... 18 Lay the cable through the headrest . 19 Insert the mounting frame in the headrest ........................................ 19 Inserting the monitor ...................... 19 Check and adjust the monitor then apply the Velcro strips ................... 20 Example of a direct connection to a DVD player .................................... 20 Positive connection ....................... 20 Negative (ground) connection ........ 21 Removal ................................. 21 OSD menu ............................. 22 Operation ...................................... 22 IR remote control ................... 23 Functions ...................................... 23 Specifications ........................ 24 5.8" screen ................................... 24 6.5" screen ................................... 25 Connection diagram ............ 109
