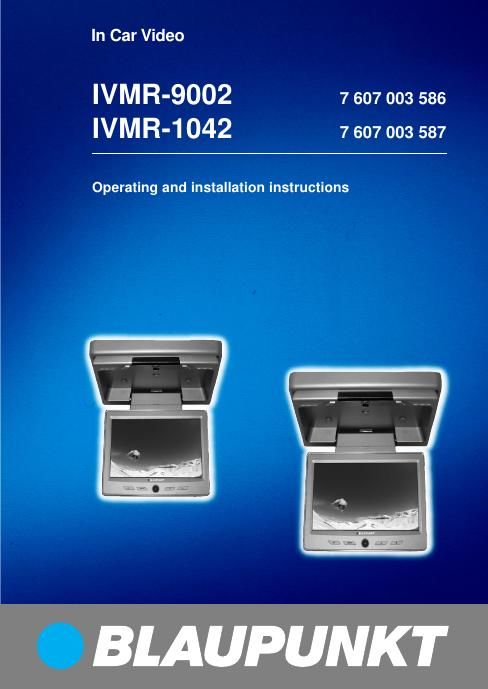

Blaupunkt IVMR 9002 Owners Manual
This is the 16 pages manual for Blaupunkt IVMR 9002 Owners Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Blaupunkt IVMR 9002 Owners Manual (Ocr-read)
Page 1
16 DEVICE OVERVIEW 6 < 9 ; 7 8 : @ = > ? A 1 2 3 4 1 5
Page 2
17 ENGLISH DEVICE OVERVIEW Ceiling-mounted monitor 1 Lights on the main unit 2 Light switch ON 3Monitor latch 4 Vehicle interior lighting switch 5 Loudspeaker 6 Infrared receiver for IR remote control IVRC-06 Infrared transmitter for IR head- phones IVHS-01 (accessory) 7 Control button Increase the monitor volume / navigate in the OSD menu 8 Control button Decrease the monitor volume / navigate in the OSD menu 9 On/off button for the monitor : Control button MENU See Instructions / OSD menu . ; Control button CH Channel selection if the monitor is connected to a signal controller IVSC-3302 or IVSC-5502. < LCD screen = Signal cable (13 pin) > System cable (13 pin) ? Adapter cable RCA/jack (13 pin) @ Cable for the interior lighting (3 pin) Red = Electrical power supply (+12V) White = To the door switch (Door open = Earth) Black = Earth A AUX sockets Red RCA = Audio IN (R) White RCA = Audio IN (L) Y ellow RCA = Video IN
