Extracted text from Blaupunkt Frankfurt C 70 Owners Manual (Ocr-read)

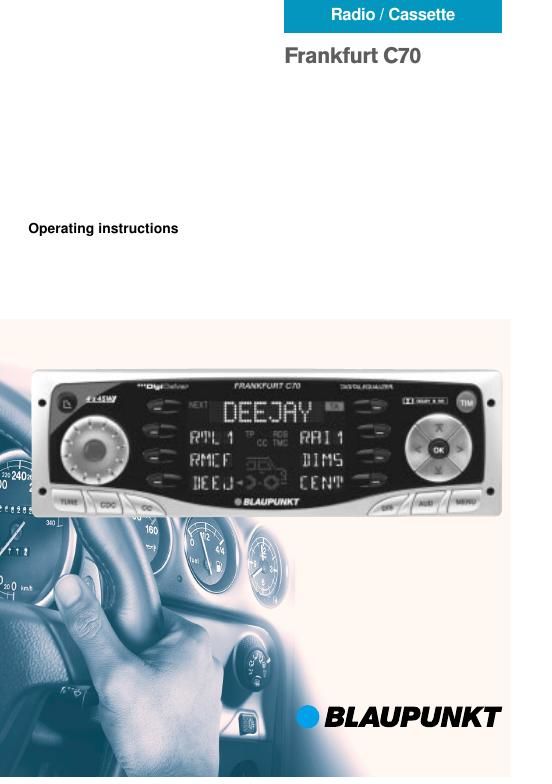

Page 1
2 Bitte aufklappen Open here Ouvrir s.v.p. Aprite la pagina Hier openslaan a.u.b. Öppna Por favor, abrir Favor abrir
Page 2
39 ENGLISH CONTROLS 1 button - opens the operating panel 2 Button - switches the radio and mute function on/off 3 Volume control 4 Soft keys - the function of the soft keys depends on the current content of the display 5 OK button - confirms menu entries and leaves the menu 6 TIM button - selects the TIM function 7 Multifunction rocker switch \b MENU button - selects the menu for basic settings 9 AU D button - adjusts bass and treble, balance and fader as well as loudness : DIS button - changes display contents ; Display \f CC button, to start cassette play = CDC button - starts CD changer play- back (only if connected) or plays an external audio source (only if connected) > TUNE button - activates radio mode Selects the radio function menu (only possible in radio mode)
Page 20
57 ENGLISH TIM - Traffic Information Memory The unit has a digital voice memory in which up to four traffic announcements with a dura- tion of max. four minutes in all are automati- cally recorded. The oldest announcements are deleted de- pending on the space needed for the latest announcement. If an announcement is longer than four min- utes, Overflow appears on the display at the end of four minutes to indicate that the entire announcement could not be recorded. If a new traffic announcement is made during playback of the TIM, playback is interrupted and the new announcement recorded. Traffic announcements more than four hours old when the unit is switched on are automat- ically deleted. Danger of damage to the remote an- tenna at the car wash. An automatic remote antenna stays fully extended when TIM is activated even when the car radio is switched off. Damage can be caused if the remote an- tenna remains extended at a car wash. Please read the section Interrupt TIM record standby . Switching\bT\fM\bon/off You can switch the TIM function on and off when the car radio is on. ➮ Press the TIM button 6 for approx. one second. The current status appears briefly on the dis- play: TIM 2H = TIM is switched on TIM OFF = TIM is switched off. When TIM is switched on, the traffic an- nouncements of a set traffic radio station are recorded for two hours after the unit is switched off. Recording\btraffic\bannouncements When the unit is switched on, traffic an- nouncements are automatically recorded if a traffic information station is tuned in. When the unit is switched off, traffic announce- ments are recorded for two hours if TIM is switched on and a traffic information station is tuned in. If, when you switch on your radio, it is tuned to a station which does not itself broadcast traffic information and the TIM function is ac- tivated, it will automatically search for a traffic information station. Altering\bT\fM\brecord\bstandby\btime You can alter the time your unit is on record standby when switched off from two to 24 hours. When TIM is activated, TIM 2 H will always appear on the display when the car radio is switched off. In order to alter the TIM record standby time to 24 hours, ➮ press the TIM button 6 when the car radio is off. TIM 24H will appear briefly on the display. This indicates that the TIM function has been set at max 24 hours for one single occasion. A remote antenna remains extended for as long as the TIM function is activated. Each time the car radio is switched off, the record standby time is reduced to 2 hours, to protect the vehicle battery. The connected remote antenna re- mains extended while the TIM function is activated. TIM
Page 29
66 CLOCK - Time Setting the time The time can be set automatically using the RDS signal. If no station using this function is available, the unit attempts to receive the DCF-77 signal (radio clock) the next time the unit is switched off. It is also possible for you to set the clock manually. Setting the time automatically To set the time automatically, ➮ press the MENU button 8; ➮ press the soft key 4 with the display allocation CLK; ➮ press the soft key 4 with the display allocation SYNC repeatedly until AU - TOSYNC appears on the display. Once AUTOSYNC has been selected and a station with the RDS time function (RDS- CT) or the DCF-77 signal has been received, the clock is set automatically. Or ➮ Hold down the DIS button : for more than five seconds when in radio mode. Note: If it is not possible to receive a DCF-77 sig- nal, NO DCF will appear briefly on the dis- play. If you do not wish to set the time automatical- ly (e.g. because you wish to set the clock to a different time zone), ➮ select SYNC OFF.Setting the time manually To set the time manually, ➮ press the MENU button 8; ➮ press the soft key 4 with the display allocation CLK; ➮ press the soft key 4 with the display allocation SET. The time appears on the display. The hours flash and can now be set. ➮ Set the hours using the / buttons 7. ➮ Once the hours have been set, press the button 7. The minutes now flash. ➮ Set the minutes using the / buttons 7. ➮ Press the OK button 5 to return to the previous menu level or the MENU but- ton 8 to leave the menu altogether. The settings are now stored. Selecting the 12/24-hour clock mode ➮ Press the MENU button 8. ➮ Press the soft key 4 with the display allocation CLK. ➮ Press the soft key 4 with the display allocation MODE. ➮ Press the buttons 7 to switch be- tween the 12 and 24-hour mode. ➮ Press the OK button 5 to return to the previous menu level or the MENU but- ton 8 to leave the menu altogether. The settings are now stored. CLOCK
