Extracted text from Blaupunkt Chicago IVDM 7002 Owners Manual (Ocr-read)

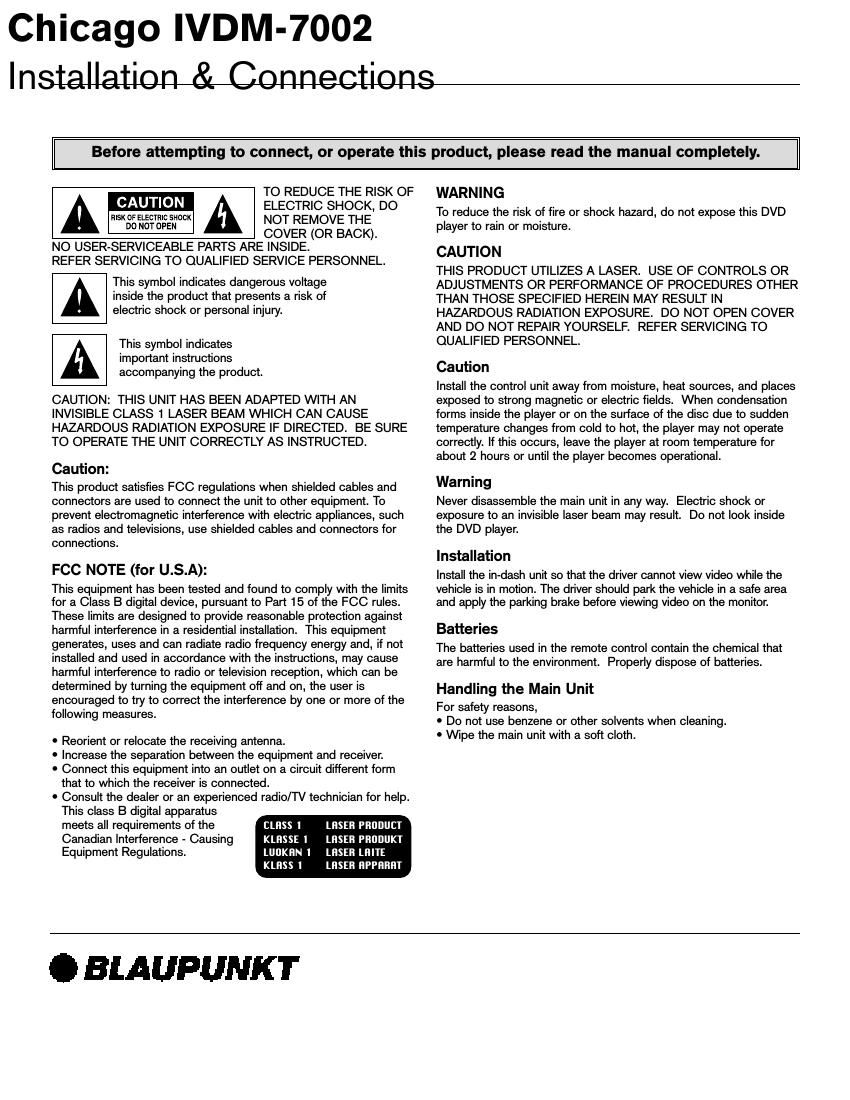

Page 1
When connecting the data cable to the back of the main unit, it must be connected as shown. Incorrect connection will cause permanent damage to the unit. Caution FILTER & FUSE BOX 12 V Constant (Yellow) Ground (Black) 12 V Switched (Red) Illumination (Orange) Parking Brake (–) (Green) (Blue) Data BusBlaupunkt CDC-A08 Input Line Input Main Unit Control Unit System Remote (Turn-On) Max. 100mA Chicago IVDM-7002 Main Unit & Control Unit Connections
Page 2
- DO NOT connect any speaker wires to the metal body or chassis of the vehicle. - DO NOT connect the speaker common (-) wires to each other. - Connect each speaker wire directly to each speaker terminal. - All speaker common (-) wires must remain floating. ie - no common connections or connection to vehicle ground. - Connect each pair of speaker leads only to a single speaker (or speaker system) that has an impedance of at least 4 ohms, as well as a 50-watt power-handling capability. - DO NOT connect speaker leads to any inputs on external amplifiers. This will cause damage to the internal amplifier of this unit. *Caution AUX 3 Video Input AUX 3 Audio InputCenter Speaker* (Black) (Black/White) Front Left Speaker* (White) (White/Black) Front Right Speaker* (Gray) (Gray/Black) Rear Left Speaker* (Green) (Green/Black) Rear Right Speaker* (Purple) (Purple/Black)(Yellow) (Black) (Brown/White) (Purple/White) (Orange) (Blue) (Blue/White) + – Center Rear Right Front Right Front Left Rear Left Subwoofer Monitor 2 Video Output Monitor 2 Audio Output Aux 2 Video Input Aux 2 Audio Intput Aux 1 Audio Input Aux 1 Video Input Monitor 1 Audio Output Monitor 1 Video Output Antenna Input Audio Preamp Outputs + – + – + – + – Fuse 12 V Constant Ground Twin CDC Remote (Turn-On) Max. 100mA Reverse (+) Navi-Mute (–) Power Antenna Max. 100mA System Remote (Turn-On) Max. 100mA Control Unit Sirius input or Blaupunkt Signal Controller Connection Sirius Cable Required (7 607 001 606) 1m 13 Pin Male/Male DIN Cable Chicago IVDM-7002 Control Unit Input & Output Connections
