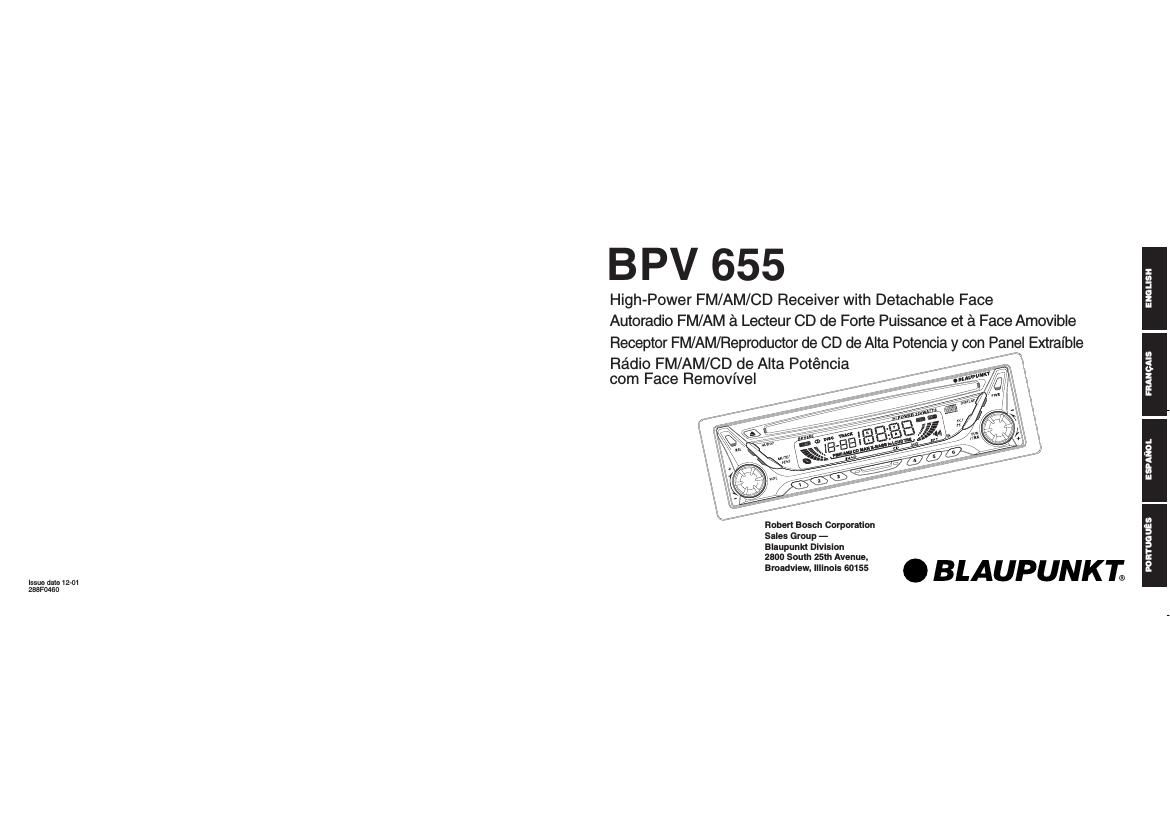

Blaupunkt BPV 655 Owners Manual
This is the 41 pages manual for Blaupunkt BPV 655 Owners Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Blaupunkt BPV 655 Owners Manual (Ocr-read)
Page 1
ENGLISH E-1 Precautions This equipment has been tested and found to comply with the limits for a Class B device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable pro- tection against harmful interference in a residential installa- tion. This equipment generates, uses, and can radiate radio frequency energy, and, if not installed and used in accord- ance with instructions, may cause harmful interference with radio communications. However, there is no guarantee that radio interference will not occur in particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to consult the dealer or an experienced radio/TV technician for help. You are cautioned that any changes or modifications not ex- pressly approved in this manual could void your authority to operate this equipment. Features - Detachable front panel - Built-in power amplifier(max. output : 55W × × 4ch) - FM/AM PLL Synthesizer tuner - 30 Station preset memory - Travel Store / Scan tuning FCC WARNING - Avoid installing the unit where it would be subject to high temperatures, such as in direct sunlight or a hot air stream from the heater, or where it would be subject to dust, dirt, or excessive vibration. - Do not turn on the unit if the temperature inside the car is very high. Always cool down the unit before usage. Parking your car in direct sunlight will result in a temperature rise. - If the unit does not turn on, check the connections first. Then check whether the fuse at the back of the unit is blown. - Carefully read this manual before using the unit. If you en- counter any problems that are not covered in this manual, please consult the dealer where you purchased the unit or the dealer nearest to you. - This unit has been designed specifically for playback of compact discs bearing the following mark. Other discs can- not be played. Handling Compact Discs -Be careful when removing a compact disk after the play- back is completed because the disk may be extremely hot. - Do not use non-conventional discs such as heart-shaped, octangonal discs, etc. The player could be damaged. - Do not expose compact discs to direct sunlight or any heat source. - Check all compact discs before playing, and discard cracked, scratched or warped discs. - Wipe dirty or damp discs outward from the centre with a soft cloth. - Do not use any solvents such as commercially available cleaners, antistatic spray, or thinner to clean the compact discs. Handling the Front Panel Attaching the Front Panel Place the right hand side of the front panel so that the parts A of the front panel are engaged with the parts B of the unit as shown below. Then push the left hand side of the front panel until it is securely locked. Detaching the Front Panel Remove the CD from the unit, if any, and turn off the power of the unit. Press the REL to unlock the front panel from the unit. Grasp the front panel as shown below and remove it from the unit. Security To avoid theft or loss of the front panel, you can inactivate the release button REL by installing the screw provided. 1. Unscrew the bolt marked * at the left front side of the unit. (See diagram above) 2. Attach the front panel. 3. Select a locking screw from the mounting hardware (See page 7) and screw it into the same hole to fasten the front panel. Notes - Do not press hard on the front panel when affixing it to the unit. No more than light to moderate pressure should beneeded. - Make sure there is no dust or dirt on the electrical terminals on the back of the front panel as this could cause intermitentoperation or other malfunctions.
Page 2
ENGLISH E-2 Identification of Controls CDC M FM M B SS TRE lO D 1 MUTE/SENS button Mutes the sound. Switches the seek sensitivity between local and distance. 2 AUDIO button Audio control selector; Bass, Treble, Loudness, X-BASS, Balance, Fader & Level Meter. 3 REL button Releases the detachable front panel. 4 Eject button Ejects the CD. Reset the unit. 5 LCD Display window 6 CD insertion slot Insert the CD here. 7 PWR button Turns the power of the unit on or off. 8 DISPLAY button Display selector. Display priority setting.Clock adjustment. 9 SC/PS button Scan tuning. Preset scan tuning. Scan play in CD mode. 10 TUN/TRK dial Used to tune in to the desired station. 11 PRESET MEMORY button During radio reception : 1 - 6 ; For Preset memory During CD mode : 4/MIX ; For Mix play 5/RPT ; For Repeat play 6/ ; For Pause 12 CD button Selects the operating source (CD, CD changer or AUX). 13 BAND button Selects the AM/FM band & T ravel store. 14 VOL dial Adjusts the volume level and audio control. 3 4 21 5 6 7 89 10 11 12 14 Front Panel LCD Display 1 SCAN indicator 2 STEREO signal indicator 3 DISC/TRACK Number indicator 4 Main display section 5 MIX Mode indicator 6 RPT Mode indicator 7 X-BASS level indicator 8 R-ch Level Meter 9 Treble indicator 10 LOUD indicator 11 lo(Local) indicator 12 X-BASS/BAS indicator 13 MAN(Manual tuning) indicator 14 CD indicator 15 AM/FM indicator 16 L-ch Level Meter 17 DISC IN indicator 12 3 456 78 9 10 11 121315 1617 13 14
