Extracted text from Blaupunkt Augsburg RCR 87 Owners Manual (Ocr-read)

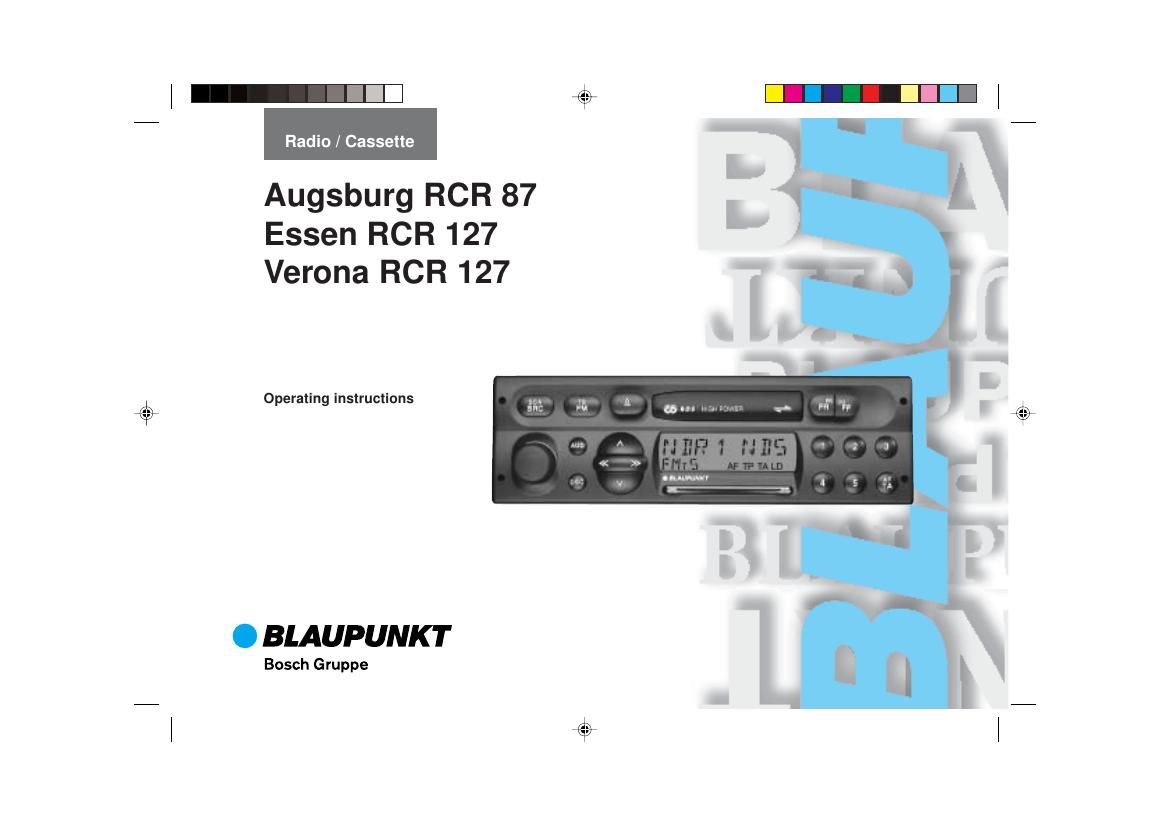

Page 1
2 2 13 1 11 3 4 5 6 12 9 10 7 8 Augsburg Essen Verona RCR 127 RCR 87 RCR 127
Page 2
20 Contents Quick reference............................ 21 Important notes ............................ 24 Precautions........................................... 24 Traffic safety ......................................... 24 Installation ............................................. 24 Accessories .......................................... 24 Second KeyCard ................................... 24 KeyCard theft protection system 25 Putting the unit into operation .............. 25 Removing the KeyCard ........................ 25 Training a second KeyCard/ Replacing a KeyCard ............................ 25 Displaying the radio pass data ............. 25 Short Additional Memory (S.A.M.) ........ 26 Turn On Message (T.O.M.) .................. 26 Optical indication of anti-theft protection .............................................. 26 Care of your KeyCard ........................... 26 Selecting the audio source ......... 26 Radio operation with RDS ........... 27 AF - Alternative frequency .................... 27 REG - regional programme .................. 27 Selecting a waveband (only Verona RCR 127) ........................ 27 Station tuning ........................................ 28 Automatic tuning / ....................... 28 Manual tuning with << >> .................. 28 Scrolling through the broadcasting networks ................................................ 28 Changing the memory bank ................. 28 Storing stations ..................................... 28 Automatically storing the strongest stations with Travelstore ....................... 29 Recalling stored stations ...................... 29 Scanning stored stations with Preset Scan .......................................... 29 Selecting the seek tuning sensitivity .... 29 Switching from stereo to mono ............. 29 Loudness .............................................. 30 Receiving traffic programme stations with RDS-EON ................ 30 Traffic announcement priority on/off .... 30 Beep tone ............................................. 30 Switching off the beep tone ............... 31 Automatic seek tuning start (tape operation) .................................... 31 Adjusting the volume for traffic announcements and the beep tone ...... 31 Cassette operation ....................... 32 Inserting a tape..................................... 32 Ejecting a tape ...................................... 32 Fast winding .......................................... 32 Reversing the tape ............................... 32 Listening to the radio during fast tape winding with RM (Radio Monitor) ......... 32 Care notes ............................................ 33 DSC programming ....................... 33 Overview of DSC factory settings ........ 35 Appendix....................................... 35 Specifications ........................................ 35 Blaupunkt telephone hotline ................. 36
Page 3
21 ENGLISH 3TS / FM (Augsburg RCR 87, Essen RCR 127) Selector key to access the memory banks I, II and T. TS / BND (Verona RCR 127) Selector switch to access the FM memory banks I, II and T. The wavebands MW and LW can also be selected, if AM ON is activated in the DSC menu. Toggling the memory banks: Press button. The selected memory bank/waveband will appear in the display. Travelstore To store and recall the five most pow- erful stations with Travelstore. To store: Press button for approxi- mately 1 sec. until you hear a beep and T-STORE appears in the display. To recall: Select the memory bank T and press the corresponding preset button (1-5) briefly. 4 Cassette ejection Press . Switching on with the ignition being switched off: To keep on operating the set when the ignition is switched off (KeyCard is in- serted), proceed as follows: Turn the knob to switch the unit off, wait for about 2 seconds and turn it on again. To avoid that the battery goes flat, the system will be turned off automatically after one hour of playback. 2 SCA / SRC SCA – Preset Scan Press SCA for about 1 second - The stations stored on the preset but- tons will be scanned. The indicators for the waveband, mem- ory bank and preset button will flash in the display. To stop Preset Scan: Press SCA again for about 1 second. SRC (S ou rce) Press SRC briefly – You can switch between radio and cassette mode, if a cassette is insert- ed. Quick reference 1 On Off Volume When switching the set on with the knob, the KeyCard has to be inserted. The unit will play with the pre- adjusted volume. Switching on/off with the KeyCard: The set has to be turned on with the knob. Notice: Read the information in chapter Key- Card theft protection system. Switching on/off via the ignition: When connected correspondingly, the set can also be turned on and off with the vehicle ignition. After the ignition has been switched off, a double beep tone will remind you that you should remove the KeyCard before leaving your vehicle.
