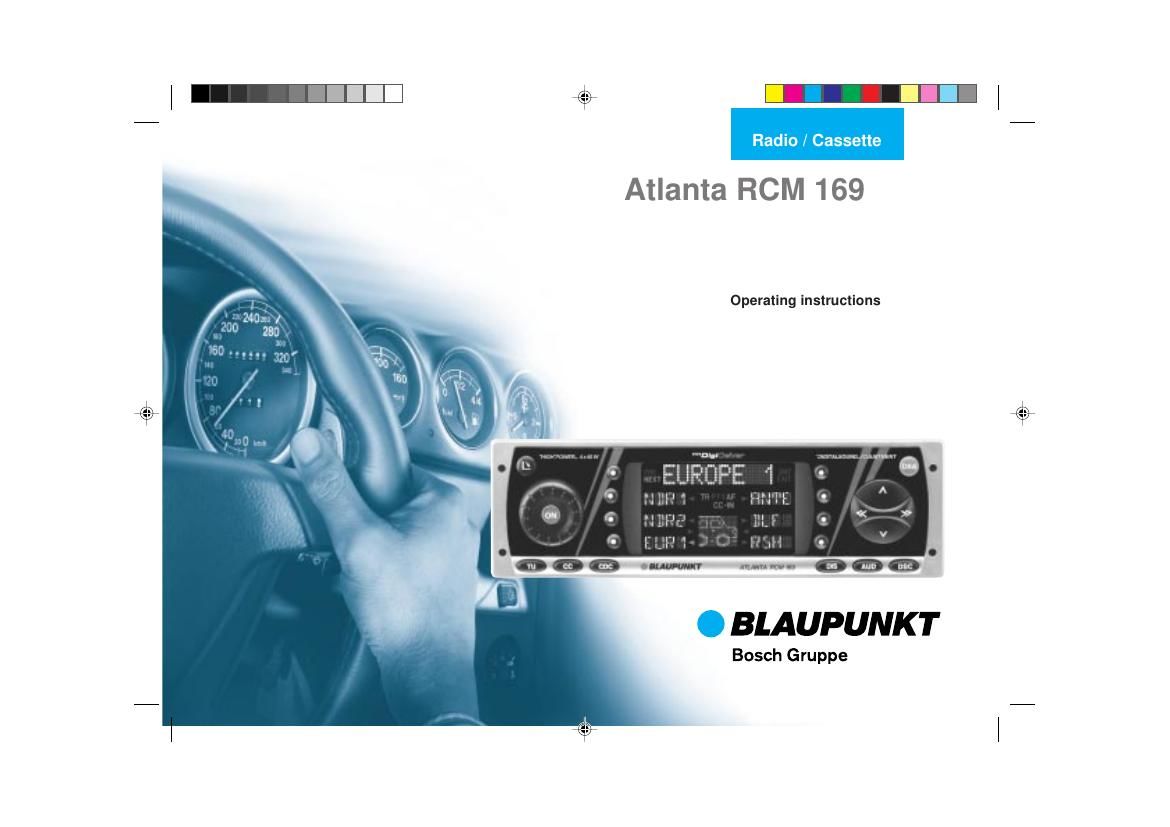

Blaupunkt Atlanta RCM 169 Owners Manual
This is the 50 pages manual for Blaupunkt Atlanta RCM 169 Owners Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Blaupunkt Atlanta RCM 169 Owners Manual (Ocr-read)
Page 1
2 23 20 21 22 ErklŠrung der Positions-Nummern siehe Kurzanleitung 6 7 8 9 10 11 13 14 15 12 5 2 3 1 4 16 2 1 3 19 18 17
Page 2
51 ENGLISH Contents Quick Reference........................... 53 RC 08 remote control unit ........... 62 Important notes ............................ 63 What you need to know ........................ 63 Traffic safety ......................................... 63 Installation ............................................. 63 Telephone mute .................................... 63 Accessories .......................................... 63 Guarantee ............................................. 63 International telephone information ...... 63 KeyCard theft protection system........................................... 64 Operating the unit for the first time ....... 64 Incorrect KeyCard ............................. 64 Removing the KeyCard ........................ 64 Training a second KeyCard / Replacing a KeyCard ............................ 65 Incorrect KeyCard ............................. 65 Displaying the radio pass data ............. 65 Short Additional Memory (S.A.M.) ........ 65 Turn On Message (T.O.M.) .................. 65 Flashing light as theft protection .......... 65 Care of your KeyCard ........................... 66 Lost or damaged KeyCard ................... 66 Training the new KeyCard .................... 66 First-time installation................... 67 Activating the Install menu ................... 67 Closing the Install menu ....................... 67 Setting the clock ................................... 67 Entering your Owner Identification ....... 67 Reset to default settings ....................... 68 Switching the ignition connection on/off .. 68 Switching the internal output stage on/off ..................................................... 68 Connecting external equipment ........... 68 Closing the INSTALL menu .................. 68 Selecting the operating mode ..... 69 Optimising the viewing angle ..... 69 Radio operation with RDS ........... 70 Switching between the menu levels ..... 70 AF - Alternative frequency .................... 70 REG - regional program ....................... 71 Selecting a waveband .......................... 71 Station tuning ........................................ 71 Automatic tuning / ....................... 71 Manual tuning with << / >> ................ 72 Scrolling through the broadcasting networks (FM only) ............................... 72 Changing the memory bank (FM) ......... 72 Storing stations ..................................... 72 Automatically storing the strongest stations with Travelstore ....................... 73 Recalling stored stations ...................... 73Scanning stored stations with Preset Scan .......................................... 73 Scanning stations with Radio Scan ...... 74 Changing the scan time (Scan) ............ 74 Selecting the seek tuning sensitivity .... 74 Switching from stereo to mono (FM) .... 74 Automatic bandwidth adjustment (SHARX) ............................................... 74 PTY - Program Type ............................. 74 Switching PTY on/off ......................... 75 Program type ........................................ 75 Checking the program type of the station ................................................ 75 Selecting and storing PTY program types .................................................. 75 PTY seek tuning ................................ 76 Radio text .............................................. 76 Traffic information station reception with RDS-EON ............. 77 Traffic announcement priority on/off .... 77 Warning beep....................................... 77 Switching the warning beep off ............ 77 Automatic seek tuning start .................. 78 Adjusting the volume for traffic announcements and the warning beep .. 78
Page 21
70 To return to page 1: -press PRE. The unit will switch back to menu level 1 automatically 8 sec. after the last key was pressed. Press EXIT to return to menu lev- el 1 immediately. AF - Alternative frequency The AF ( Alternative Frequency) function makes sure that radio is always tuned into the strongest frequency for the radio station currently selected. Activating AF in the display: For radio operation - Press TU, menu level 2 will appear, in- dicating the radio functions. - Press NEXT to move to page 2 (AF, LOC, PTY, REG, RT, MONO). Switching AF on/off: - Press AF briefly, the red arrow will light up when AF is switched on. In ad- dition, AF will appear under the top line of the display. Radio operation with RDS (R adio Data System) To move to the next page: - press NEXT. The page selected will appear in the DOT display (FM1, FM2, FM3, FMT). Menu level 2 has two pages for adjusting radio functions. To activate menu level 2: - Press TU. The following functions are available: FM, TS, TA, AM, PS, SCAN. To move to page 2: - press NEXT. The following functions are available: AF, LOC, PTY, REG, RT, MONO The Radio Data System offers you more convenience when you listen to FM radio stations. More and more radio stations have begun to broadcast RDS information along- side their programs. As soon as a program has been identified, the station name including a regional identi- fier, if available, will appear in the display, for example, NDR1 NDS (regional program in Lower Saxony, Germany). When RDS is activated, the preset buttons become program buttons. You now know exactly which program you have tuned into, making it easy to find the desired station quickly. Switching between the menu levels During radio operation, you can use TU to switch between menu level 1 and menu lev- el 2. Menu level 1 contains four pages (FM1, FM2, FM3, FMT), on which it is possible to store up to six radio stations each.
