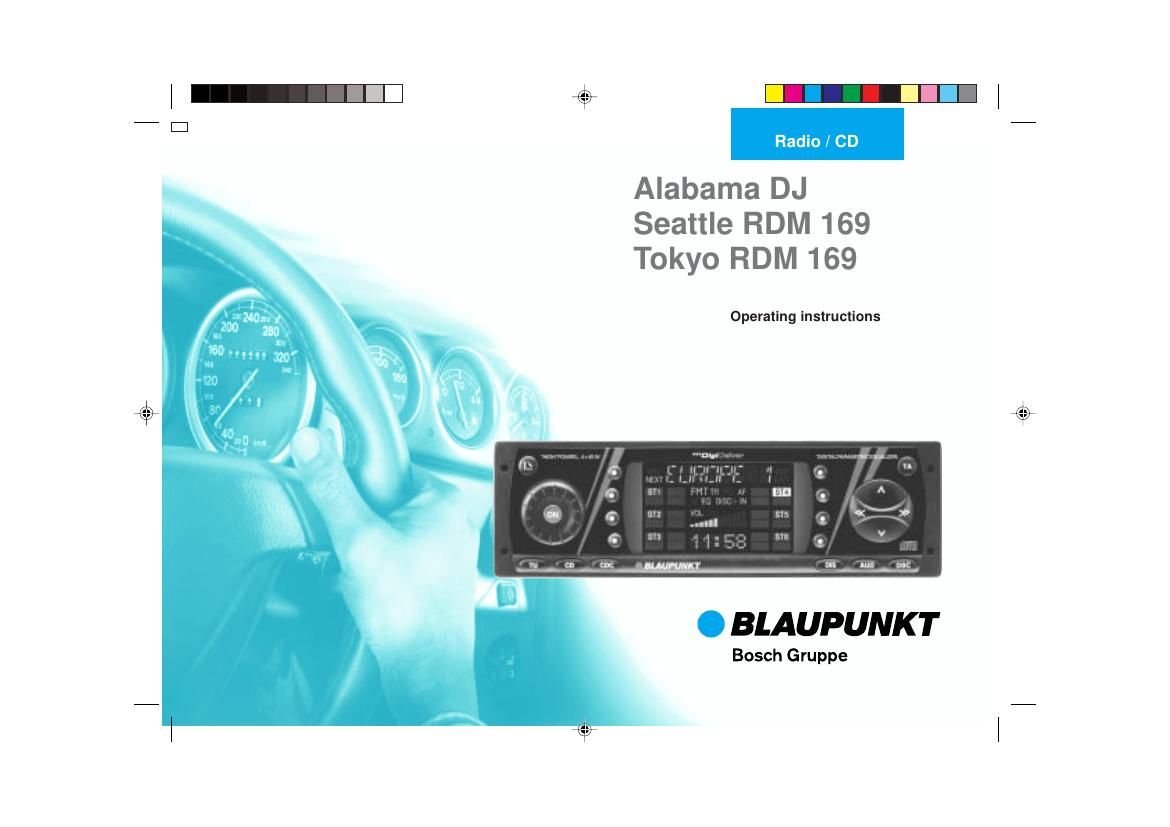

Blaupunkt Alabama DJ Owners Manual
This is the 40 pages manual for Blaupunkt Alabama DJ Owners Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Blaupunkt Alabama DJ Owners Manual (Ocr-read)
Page 1
2 6 8 13 2 3 5 9 11 12 7 1 4 10 14 2 1 3 17 16 15 21 18 19 20 Tokyo RDM 169 Option / Optional / Tilval / Optie / Opcional / Opção: Alabama DJ Seattle RDM 169
Page 2
40 Ta ble of contents Quick Reference ........................... 41 RC 08 remote control unit ........... 48 Important notes ............................ 49 What you need to know ........................ 49 Traffic safety ......................................... 49 Installation ............................................. 49 Telephone mute .................................... 49 Accessories .......................................... 49 Guarantee ............................................. 49 International telephone information ...... 49 KeyCard theft protection system 50 Putting the unit into operation.............. 50 Removing the KeyCard ........................ 50 Training a second KeyCard/ Replacing a KeyCard ............................ 50 Displaying the radio pass data ............. 51 Short Additional Memory (S.A.M.) ........ 51 Turn On Message (T.O.M.) .................. 51 Optical display as theft protection ........ 51 Care of your KeyCard ........................... 52 Lost or damaged KeyCard ................... 52 Training the new KeyCard .................... 52 Making mistakes in the entry ................ 52 Selecting the operating mode ..... 53 Optimising display legibility ....... 53 Radio operation with RDS ........... 54 AF - Alternative frequency .................... 54 REG - regional program ....................... 54 Selecting a waveband .......................... 55Station tuning ........................................ 55 Scrolling through the broadcasting networks (FM only) ............................... 55 Changing the memory bank (FM) ........ 56 Storing stations ..................................... 56 Automatically storing the strongest stations with Travelstore ....................... 56 Recalling stored stations ...................... 56 Scanning stored stations with Preset Scan .......................................... 57 Scanning stations with Radio Scan ...... 57 Changing the scan time ........................ 57 Selecting the seek tuning sensitivity .... 57 Switching from stereo to mono (FM) .... 58 Automatic bandwidth adjustment (SHARX) ............................................... 58 PTY - Program Type ............................. 58 Program type ........................................ 58 Traffic information station reception with RDS-EON ............. 61 Traffic announcement priority on/off .... 61 Warning beep ....................................... 61 Automatic seek tuning start .................. 61 Adjusting the volume for traffic announcements and the warning beep . 61 CD operation / CD changer operation ....................................... 62 Inserting a CD ....................................... 62 Removing a CD .................................... 62 Switching on CD operation ................... 62 Switching on CD changer operation ..... 62Selecting the display mode .................. 63 Selecting CDs and titles ....................... 63 Repeating tracks/CDs ........................... 63 TPM (Track Program Memory) ............. 63 MIX ........................................................ 64 SCAN .................................................... 65 Entering CD names .............................. 65 Deleting CD names/TPM with DSC UPDATE ....................................... 65 Clock - Time.................................. 66 Setting the clock ................................... 66 Displaying the clock .............................. 66 Correcting the clock after the power has been disconnected ......................... 66 Deactivating the hour correction function ................................................. 66 Setting the equaliser .................... 67 Notes on making the settings ............... 67 Setting recommendations on the Internet .................................................. 67 Assistance in setting your equaliser ..... 68 DSC programming....................... 69 Overview of the DSC factory settings .. 72 Specifications............................... 72 Glossary - Technical Terminology ................ 73 Index .............................................. 75 Installation and connection instructions ............ 304
Page 12
50 Removing the KeyCard To unlock the operating panel: -Press 1, the operating panel will fold down forwards. - Push the card in to the right as far as possible and remove it to the front. - Push the operating panel back into po- sition. For safetys sake, the operating panel must remain locked when the vehicle is in motion. When you leave the vehicle, un- lock the panel and remove the KeyCard to protect the equipment against theft. Training a second KeyCard/ Replacing a KeyCard When the unit is in operation with the first KeyCard, you can train a second one to be also used with the set. If you want to train a second KeyCard: -Insert the first KeyCard and turn on the set. - Press the DSC button and press / to select LEARN KC. - Press << or >> . The display will switch to CHANGE. KeyCard theft protection system - Insert the KeyCard with the contacts facing down as shown in the illustra- tion (arrow 1). 2 1 3 -Push the card in the direction of the ar- row (2) and lock the operating panel back into position (arrow 3). The car radio is now ready for operation. If a wrong KeyCard is inserted, then CARD ERR will appear in the display. The system will switch off after approximate- ly ten seconds. If another card type is inserted (e.g. phone or credit card), the display will show WRONG KC for approximately two sec- onds. Remove the wrong card and insert the cor- rect KeyCard. - Press ON to turn on the set. This car radio comes equipped with one KeyCard, but it can also be operated with a second card. If you have lost your KeyCard or if it was damaged, you can buy a new one from your specialised dealer. If you use two KeyCards, the settings stored on the first card will be transmitted to the second. However, you can individually store the following functions: Preset button assignments, bass, treble, balance and fader settings, Loudness, TA (traffic announcement volume), beep vol- ume, LOW-EQ, HIGH-EQ. In addition, the settings activated before the radio is switched off, such as the waveband, station, TA priority, AF, REG ON/OFF, SCANTIME, seek tuning sensitivity, ON VOL and SHARX will also remained stored. This ensures that you will find your basic settings re-adjusted automatically as soon as you have inserted your KeyCard. Putting the unit into operation - Turn on the set with ON. To insert the KeyCard, unlock the operating panel by - pressing 1, the operating panel will fold down.
